9q6e
Peptide Macrocycle MC4H-MeAMeH

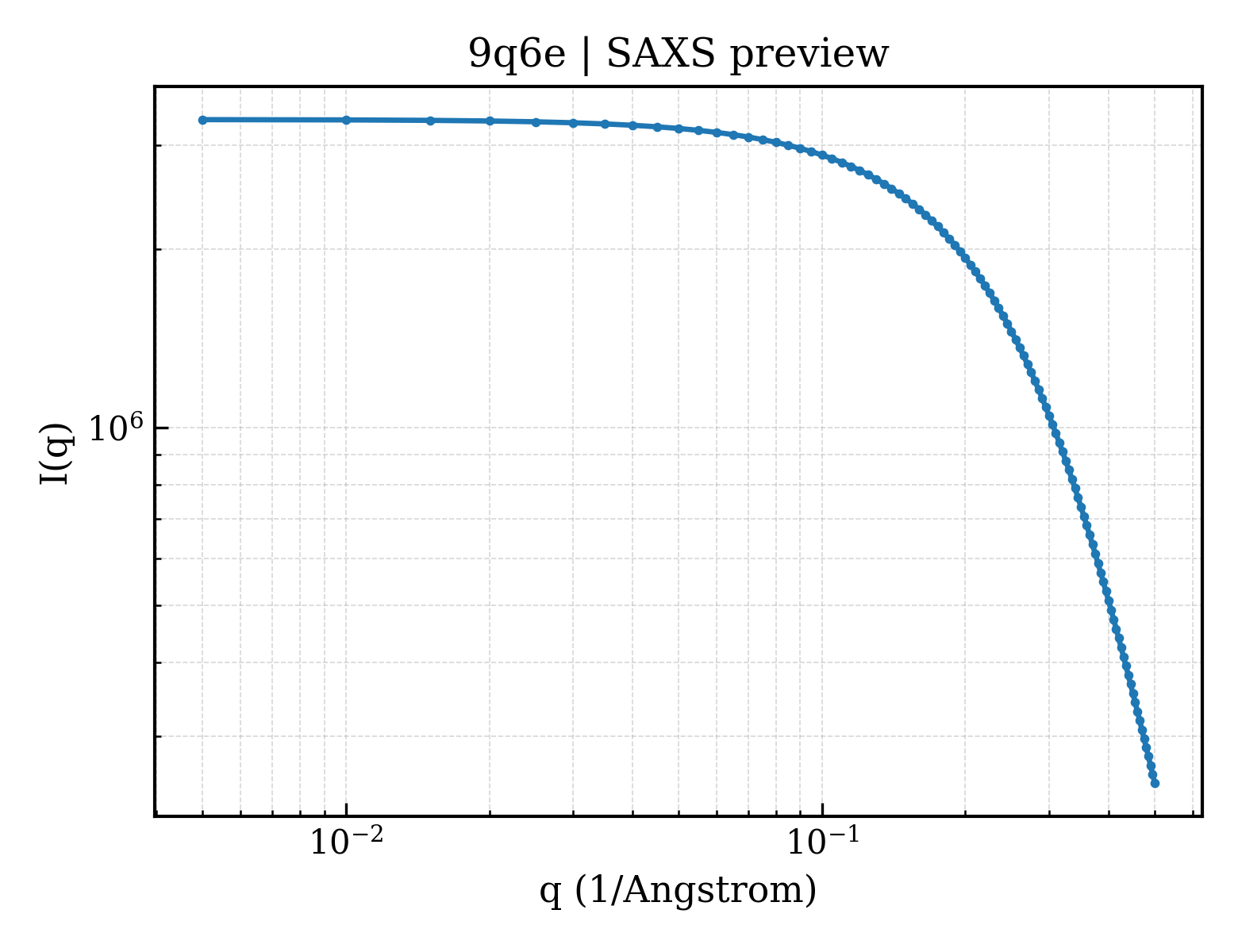

SAXS Profile

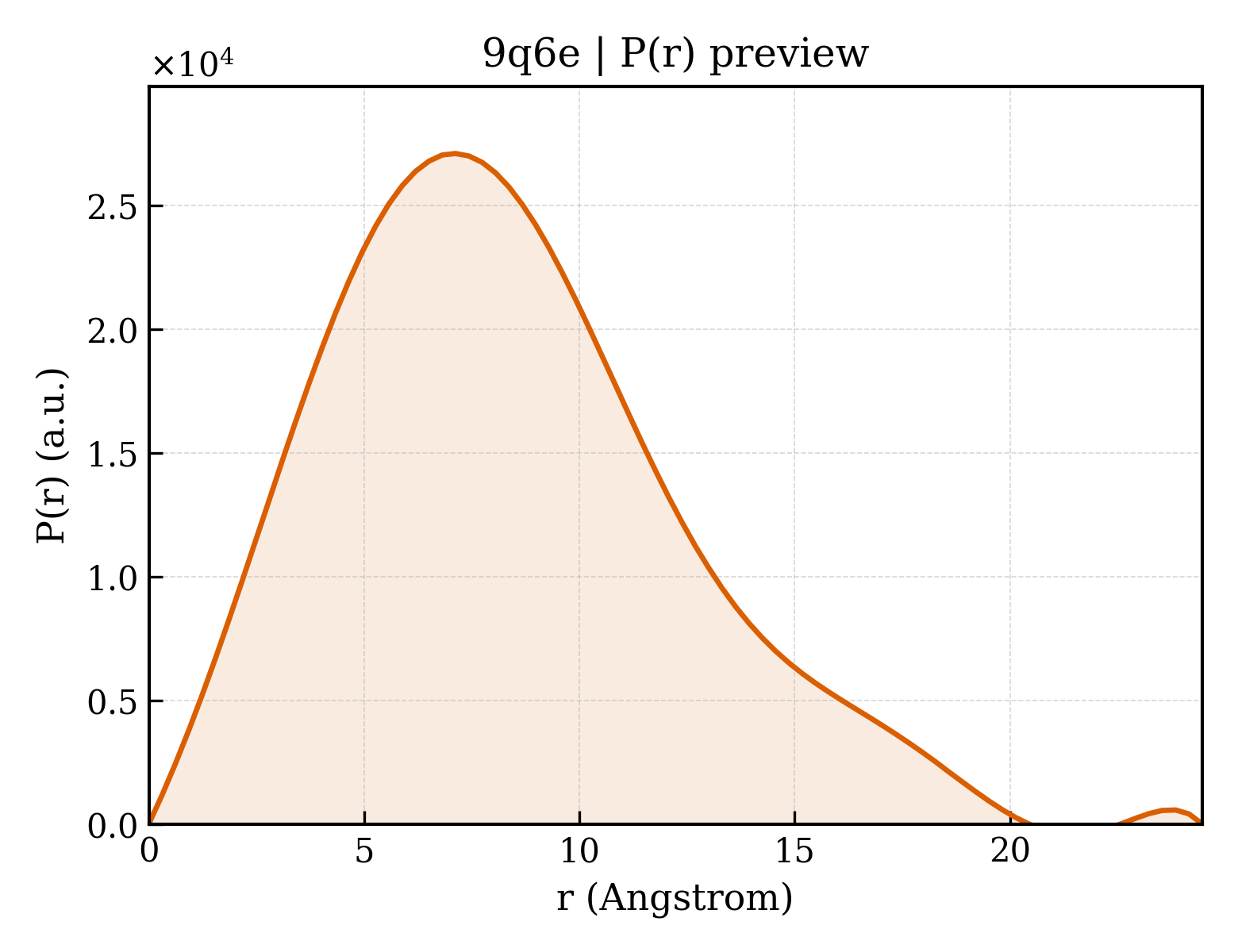

P(r) Distribution
1. Structure Basics
| entry_id | 9q6e |
| deposition_date | 2025-08-22 |
| title | Peptide Macrocycle MC4H-MeAMeH |
| keywords | CYCLIC PEPTIDE, DE NOVO PROTEIN; DE NOVO PROTEIN |
| method | SOLUTION NMR |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 6.40 Å |
| rg_electron | 6.84 Å |
| i0 | 3316280.00 |
| molecular_weight | 15618.0 kDa |
| excluded_volume | 19906 ų |
| envelope_volume | 3631 ų |
| shell_volume | 4457 ų |
| envelope_diameter | 24.8 Å |
| shell_rg | 12.25 Å |
| envelope_rg | 8.04 Å |
| shape_rg | 6.83 Å |
| total_rg | 7.45 Å |
| total_atoms | 2120 |
| n_residues | 80 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 24.5 Å |
| rg_real | 6.46 Å |
| rg_real_error | 0.32 Å |
| i0_real | 3.3160e+06 |
| i0_real_error | 3.3970e+04 |
| rg_reciprocal | 6.46 Å |
| i0_reciprocal | 3316000.0000 |
| total_estimate | 0.5971 |
| solution_quality | REASONABLE a REASONABLE solution |
| n_peaks | 2 |
| r_peak_primary | 7.1 Å |
| skewness | 0.534 |
| kurtosis | 0.034 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 1031.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.632; Stabil: 1.000; Sysdev: 0.256; Positv: 1.000; Valcen: 0.538; Smooth: 0.555 |
