9qd8

The FK1 domain of FKBP51 in complex with the macrocyclic SAFit analog 29a

Method: X-RAY DIFFRACTION D_max: 73.7 Å Quality: GOOD

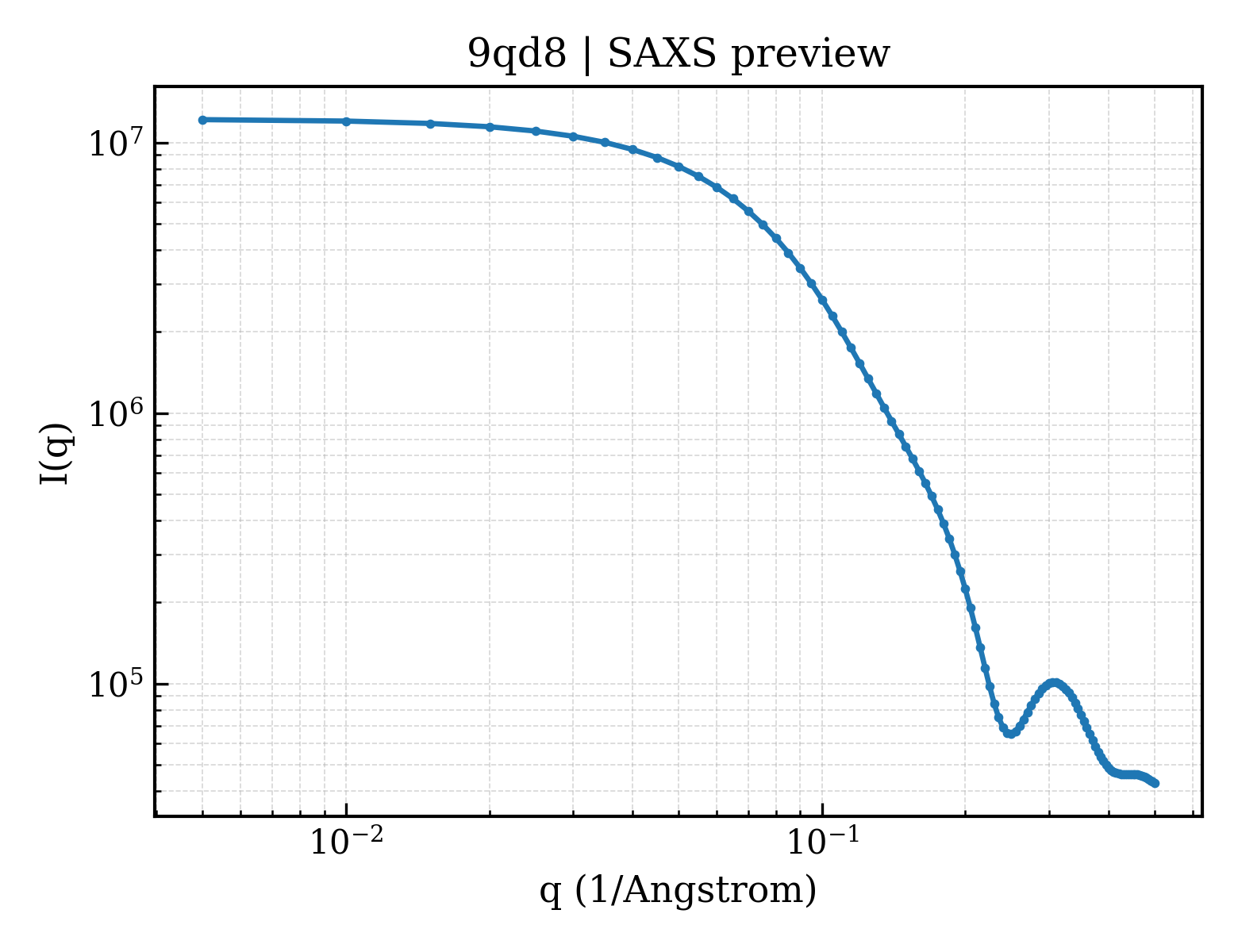

SAXS Profile

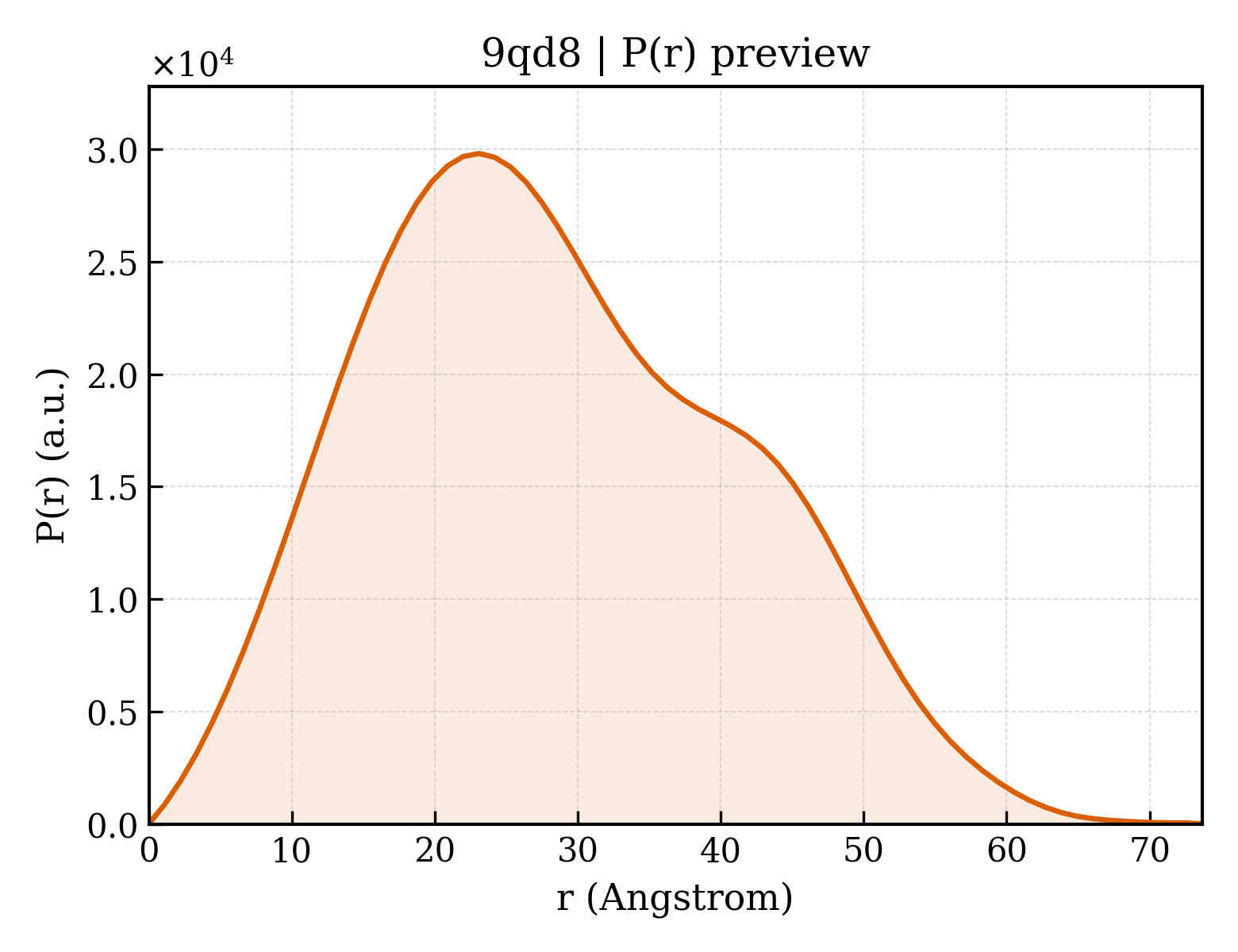

P(r) Distribution

▼

1. Structure Basics

entry_id	9qd8
deposition_date	2025-03-06
title	The FK1 domain of FKBP51 in complex with the macrocyclic SAFit analog 29a
keywords	Inhibitor, complex, FKBP, ISOMERASE; ISOMERASE
method	X-RAY DIFFRACTION

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	21.99 Å
rg_electron	20.88 Å
i0	12206500.00
molecular_weight	27720.0 kDa
excluded_volume	35266 Å³
envelope_volume	42342 Å³
shell_volume	17477 Å³
envelope_diameter	73.7 Å
shell_rg	26.49 Å
envelope_rg	20.84 Å
shape_rg	20.87 Å
total_rg	21.75 Å
total_atoms	3912
n_residues	256
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	73.7 Å
rg_real	22.01 Å
rg_real_error	0.55 Å
i0_real	1.2210e+07
i0_real_error	1.5760e+05
rg_reciprocal	22.01 Å
i0_reciprocal	12210000.0000
total_estimate	0.8756
solution_quality	GOOD a GOOD solution
n_peaks	2
r_peak_primary	23.1 Å
skewness	0.312
kurtosis	-0.556
angular_range	— – 0.3600 Å⁻¹
current_alpha	0.0000
highest_alpha	2155000.0000
n_real_points	68
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.824; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.910; Smooth: 0.996

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (3)

Entity 1 polymer

description	Peptidyl-prolyl cis-trans isomerase FKBP5
formula_weight	14004.0 kDa
ec_number	5.2.1.8
mutation	A19T, C103A, C107I
src_method	man
entity_count	2

Polymer

type	polypeptide(L)
strand_id	B,A
atom_count	3973

GAPATVTEQGEDITSKKDRGVLKIVKRVGNGEETPMIGDKVYVHYKGKLSNGKKFDSSHDRNEPFVFSLGKGQVIKAWDIGVATMKKGEIAHLLIKPEYAYGSAGSLPKIPSNATLFFEIELLDFKGE

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	;Escherichia coli 'BL21-Gold(DE3)pLysS AG' ;

Entity 2 non-polymer

description	;(2~{S},9~{S},12~{S})-2-cyclohexyl-19,22-dimethoxy-12-methyl-11,14,17-trioxa-4-azatricyclo[16.2.2.0^{4,9}]docosa-1(21),18(22),19-triene-3,10-dione ;
formula_weight	489.6 kDa
src_method	syn
entity_count	2

Entity 3 water

description	water
formula_weight	18.0 kDa
src_method	nat
entity_count	61

▶

6. Citations (1)

▶

length_a	48.919 Å
length_b	48.919 Å
length_c	196.163 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	120.00 °
z_pdb	12

space_group	P 32 2 1
int_tables_number	154
crystal_system	—

resolution	2.050 Å
resolution_low	38.922 Å
r_factor	—
r_work	0.2107
r_free	0.2651

fit	/app/data/saxs_computation/qd/9qd8/9qd8.fit
pddf	/app/data/pr_computation/qd/9qd8/9qd8.pr.out
profile	/app/data/saxs_computation/qd/9qd8/9qd8.dat
