9qe0

Neobacillus vireti Wadjet-II JetABC dimer

Method: ELECTRON MICROSCOPY Dmax: 240.5 Å Quality: EXCELLENT

SAXS Profile

SAXS profile for 9qe0

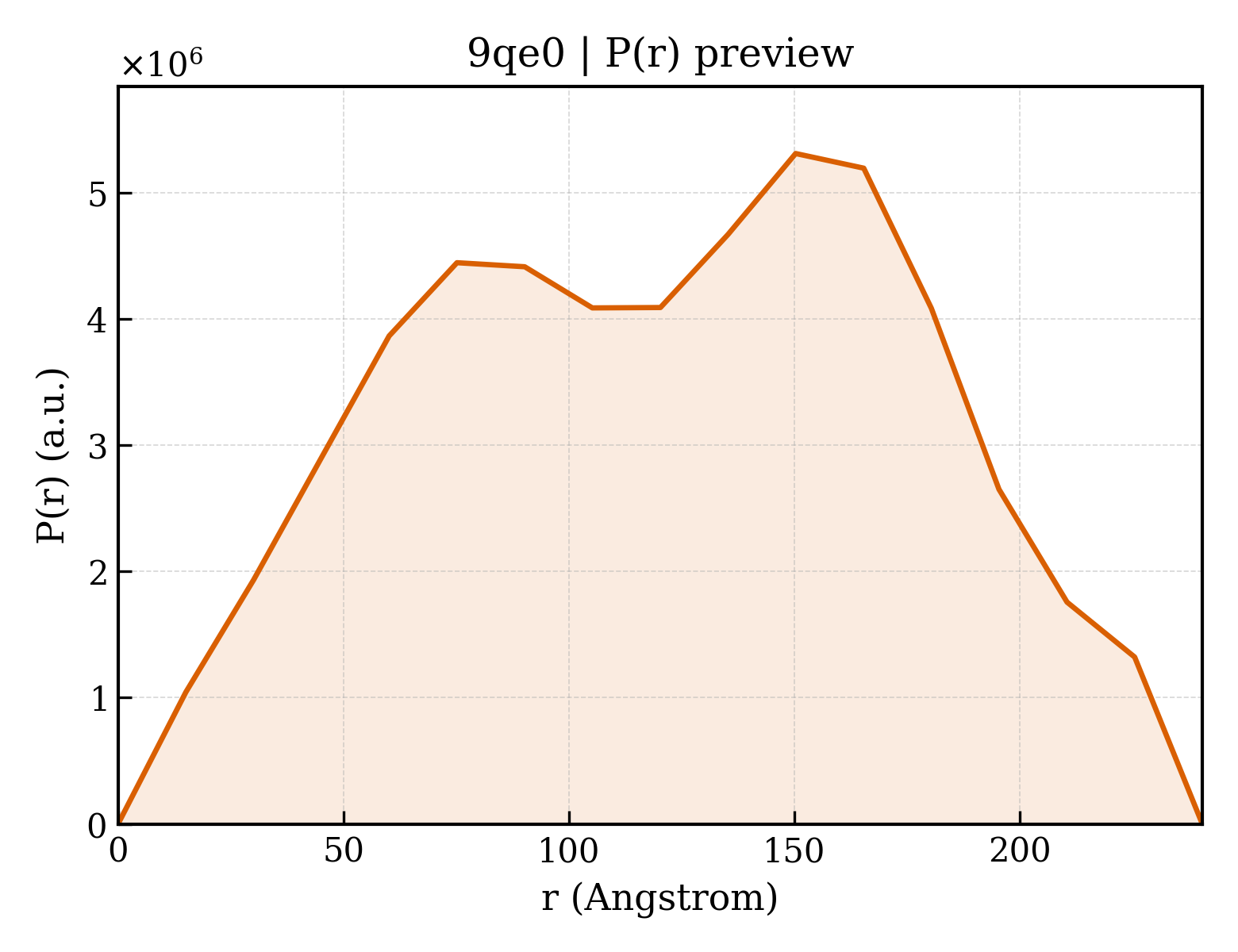

P(r) Distribution

P(r) distribution for 9qe0
▼

1. Structure Basics

entry_id9qe0
deposition_date2025-03-07
titleNeobacillus vireti Wadjet-II JetABC dimer
keywordsSMC complexes, Wadjet, JetABCD, DNA loop extrusion, DNA BINDING PROTEIN; DNA BINDING PROTEIN
methodELECTRON MICROSCOPY
▼

Download Data

▼

2. SAXS Parameters (CRYSOL)

rg_guinier98.31 Å
rg_electron98.18 Å
i010174300000.00
molecular_weight852330.0 kDa
excluded_volume1063700 ų
envelope_volume2112700 ų
shell_volume187250 ų
envelope_diameter353.0 Å
shell_rg81.24 Å
envelope_rg93.90 Å
shape_rg98.15 Å
total_rg98.12 Å
total_atoms119074
n_residues7210
n_harmonics20
q_range— – 0.5000 Å−1
n_points101
shell_typedirectional
solvent_density0.3340 e/ų
contrast_shell0.0300 e/ų
crysol_version4.1.3
▼

3. P(r) Analysis (GNOM)

dmax240.5 Å
rg_real93.96 Å
rg_real_error0.70 Å
i0_real9.7810e+09
i0_real_error1.6190e+08
rg_reciprocal97.50 Å
i0_reciprocal10140000000.0000
total_estimate0.9018
solution_quality EXCELLENT a EXCELLENT solution
n_peaks2
r_peak_primary150.3 Å
skewness-0.055
kurtosis-0.918
angular_range— – 0.0800 Å−1
current_alpha0.3390
highest_alpha472700000.0000
n_real_points17
gnom_version4.1.3
quality_criteria AN1: 0.002; Oscil: 0.985; Stabil: 0.975; Sysdev: 1.000; Positv: 1.000; Valcen: 0.921; Smooth: 0.000
▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (3)

▶

6. Citations (1)

▶

7. Files & Curves (10)
