9qko

Structure of the cyanobacteria specific PRK from Chroococcidiopsis (Hyella disjuncta) PCC 6712 (P1 crystal form)

Method: X-RAY DIFFRACTION D_max: 102.4 Å Quality: GOOD

SAXS Profile

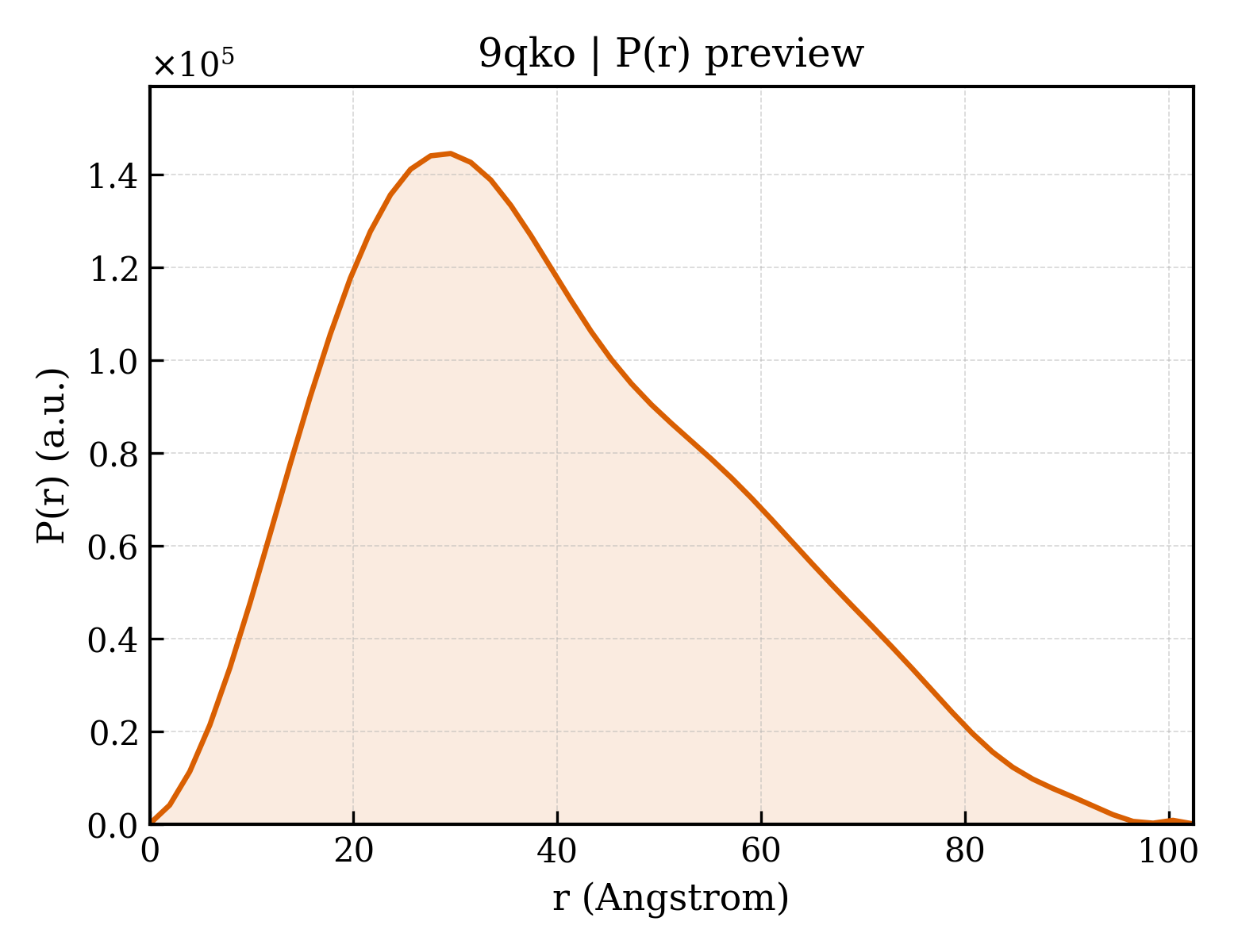

P(r) Distribution

▼

1. Structure Basics

entry_id	9qko
deposition_date	2025-03-20
last_revision	2026-04-08
title	Structure of the cyanobacteria specific PRK from Chroococcidiopsis (Hyella disjuncta) PCC 6712 (P1 crystal form)
keywords	carbon fixation, sugar kinase, PHOTOSYNTHESIS; PHOTOSYNTHESIS
method	X-RAY DIFFRACTION

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	30.47 Å
rg_electron	30.31 Å
i0	82936000.00
molecular_weight	70069.0 kDa
excluded_volume	86946 Å³
envelope_volume	106560 Å³
shell_volume	30707 Å³
envelope_diameter	108.1 Å
shell_rg	35.87 Å
envelope_rg	30.31 Å
shape_rg	30.32 Å
total_rg	30.76 Å
total_atoms	4918
n_residues	604
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	102.4 Å
rg_real	30.68 Å
rg_real_error	0.87 Å
i0_real	8.2940e+07
i0_real_error	1.3490e+06
rg_reciprocal	30.59 Å
i0_reciprocal	82930000.0000
total_estimate	0.8438
solution_quality	GOOD a GOOD solution
n_peaks	2
r_peak_primary	29.5 Å
skewness	0.483
kurtosis	-0.427
angular_range	— – 0.2600 Å⁻¹
current_alpha	0.0000
highest_alpha	14900000.0000
n_real_points	53
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.785; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.820; Smooth: 0.790

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (4)

Entity 1 polymer

description	cyanobacteria specific phoshoribulokinase from Hyella disjuncta PCC 6712
formula_weight	35208.0 kDa
ec_number	2.7.1.19
src_method	man
entity_count	2

Polymer

type	polypeptide(L)
strand_id	B,A
atom_count	4918

MSERPIILGIVGDSAAGKTTLTRGLAQVFGEENVTAICTDDYHRYDRQQRAEMGISALHPDCNYVDIIEQHLDLLRQGKPILKPIYNHNTGKFDPPEYIQPRKYVVVEGLLGYSTRPMRDSYDVKVYLAPPESLRYSWKIKRDTRKRGYTEEQVLEQLKMREHDSENYIRPQRQWADVVVSFYPPDAESEANNLLLNVKLILRPTIPHPNLTNILSAEGNHLGSAIRLGLERDMGKPVDVLSIDGHATAEQVRELEKIFCSEVPFLGQFCSLEGNTEIGTVIGTTGESLQSYPLALTQLLIAYHMLKELGS

Source

organism	Chroococcidiopsis
ncbi_taxonomy_id	118675
host_organism	Escherichia coli KRX

Entity 2 non-polymer

description	SULFATE ION
formula_weight	96.1 kDa
src_method	syn
entity_count	2

Entity 3 non-polymer

description	ADENOSINE-5'-DIPHOSPHATE
formula_weight	427.2 kDa
src_method	syn
entity_count	2

Entity 4 non-polymer

description	RIBULOSE-1,5-DIPHOSPHATE
formula_weight	310.1 kDa
src_method	syn
entity_count	2

▶

6. Citations (1)

▶

length_a	46.572 Å
length_b	53.080 Å
length_c	64.367 Å
angle_alpha	92.95 °
angle_beta	101.84 °
angle_gamma	103.24 °
z_pdb	2

space_group	P 1
int_tables_number	1
crystal_system	triclinic

resolution	2.600 Å
resolution_low	38.490 Å
r_factor	0.2371
r_work	0.2352
r_free	0.2750
