SAXSdb — 9qls

▼

1. Structure Basics

entry_id	9qls
deposition_date	2025-03-21
title	Human dysferlin (1-2017) in the lipid-free, Ca2+-bound state
keywords	Ferlins, dysferlin, multi-C2 domains, lipid nanodisc, MEMBRANE PROTEIN; MEMBRANE PROTEIN
method	ELECTRON MICROSCOPY

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	41.29 Å
rg_electron	41.09 Å
i0	362104000.00
molecular_weight	157540.0 kDa
excluded_volume	198210 Å³
envelope_volume	286200 Å³
shell_volume	59415 Å³
envelope_diameter	146.8 Å
shell_rg	45.49 Å
envelope_rg	40.09 Å
shape_rg	41.12 Å
total_rg	41.26 Å
total_atoms	11100
n_residues	1370
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	140.0 Å
rg_real	41.37 Å
rg_real_error	1.28 Å
i0_real	3.6210e+08
i0_real_error	6.1670e+06
rg_reciprocal	41.29 Å
i0_reciprocal	362100000.0000
total_estimate	0.8718
solution_quality	GOOD a GOOD solution
n_peaks	1
r_peak_primary	47.9 Å
skewness	0.419
kurtosis	-0.236
angular_range	— – 0.1900 Å⁻¹
current_alpha	0.0000
highest_alpha	33550000.0000
n_real_points	39
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.847; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.999; Smooth: 0.788

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (2)

Entity 1 polymer

description	Dysferlin
formula_weight	234383.3 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	A
atom_count	11100

MASWSHPQFEKGGGSGGGSGGGSWSHPQFEKLEVLFQGPGSGGGSGGMLRVFILYAENVHTPDTDISDAYCSAVFAGVKKRTKVIKNSVNPVWNEGFEWDLKGIPLDQGSELHVVVKDHETMGRNRFLGEAKVPLREVLATPSLSASFNAPLLDTKKQPTGASLVLQVSYTPLPGAVPLFPPPTPLEPSPTLPDLDVVADTGGEEDTEDQGLTGDEAEPFLDQSGGPGAPTTPRKLPSRPPPHYPGIKRKRSAPTSRKLLSDKPQDFQIRVQVIEGRQLPGVNIKPVVKVTAAGQTKRTRIHKGNSPLFNETLFFNLFDSPGELFDEPIFITVVDSRSLRTDALLGEFRMDVGTIYREPRHAYLRKWLLLSDPDDFSAGARGYLKTSLCVLGPGDEAPLERKDPSEDKEDIESNLLRPTGVALRGAHFCLKVFRAEDLPQMDDAVMDNVKQIFGFESNKKNLVDPFVEVSFAGKMLCSKILEKTANPQWNQNITLPAMFPSMCEKMRIRIIDWDRLTHNDIVATTYLSMSKISAPGGEIEEEPAGAVKPSKASDLDDYLGFLPTFGPCYINLYGSPREFTGFPDPYTELNTGKGEGVAYRGRLLLSLETKLVEHSEQKVEDLPADDILRVEKYLRRRKYSLFAAFYSATMLQDVDDAIQFEVSIGNYGNKFDMTCLPLASTTQYSRAVFDGCHYYYLPWGNVKPVVVLSSYWEDISHRIETQNQLLGIADRLEAGLEQVHLALKAQCSTEDVDSLVAQLTDELIAGCSQPLGDIHETPSATHLDQYLYQLRTHHLSQITEAALALKLGHSELPAALEQAEDWLLRLRALAEEPQNSLPDIVIWMLQGDKRVAYQRVPAHQVLFSRRGANYCGKNCGKLQTIFLKYPMEKVPGARMPVQIRVKLWFGLSVDEKEFNQFAEGKLSVFAETYENETKLALVGNWGTTGLTYPKFSDVTGKIKLPKDSFRPSAGWTWAGDWFVCPEKTLLHDMDAGHLSFVEEVFENQTRLPGGQWIYMSDNYTDVNGEKVLPKDDIECPLGWKWEDEEWSTDLNRAVDEQGWEYSITIPPERKPKHWVPAEKMYYTHRRRRWVRLRRRDLSQMEALKRHRQAEAEGEGWEYASLFGWKFHLEYRKTDAFRRRRWRRRMEPLEKTGPAAVFALEGALGGVMDDKSEDSMSVSTLSFGVNRPTISCIFDYGNRYHLRCYMYQARDLAAMDKDSFSDPYAIVSFLHQSQKTVVVKNTLNPTWDQTLIFYEIEIFGEPATVAEQPPSIVVELYDHDTYGADEFMGRCICQPSLERMPRLAWFPLTRGSQPSGELLASFELIQREKPAIHHIPGFEVQETSRILDESEDTDLPYPPPQREANIYMVPQNIKPALQRTAIEILAWGLRNMKSYQLANISSPSLVVECGGQTVQSCVIRNLRKNPNFDICTLFMEVMLPREELYCPPITVKVIDNRQFGRRPVVGQCTIRSLESFLCDPYSAESPSPQGGPDDVSLLSPGEDVLIDIDDKEPLIPIQEEEFIDWWSKFFASIGEREKCGSYLEKDFDTLKVYDTQLENVEAFEGLSDFCNTFKLYRGKTQEETEDPSVIGEFKGLFKIYPLPEDPAIPMPPRQFHQLAAQGPQECLVRIYIVRAFGLQPKDPNGKCDPYIKISIGKKSVSDQDNYIPCTLEPVFGKMFELTCTLPLEKDLKITLYDYDLLSKDEKIGETVVDLENRLLSKFGARCGLPQTYCVSGPNQWRDQLRPSQLLHLFCQQHRVKAPVYRTDRVMFQDKEYSIEEIEAGRIPNPHLGPVEERLALHVLQQQGLVPEHVESRPLYSPLQPDIEQGKLQMWVDLFPKALGRPGPPFNITPRRARRFFLRCIIWNTRDVILDDLSLTGEKMSDIYVKGWMIGFEEHKQKTDVHYRSLGGEGNFNWRFIFPFDYLPAEQVCTIAKKDAFWRLDKTESKIPARVVFQIWDNDKFSFDDFLGSLQLDLNRMPKPAKTAKKCSLDQLDDAFHPEWFVSLFEQKTVKGWWPCVAEEGEKKILAGKLEMTLEIVAESEHEERPAGQGRDEPNMNPKLED

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Trichoplusia ni

Entity 2 non-polymer

description	CALCIUM ION
formula_weight	40.1 kDa
src_method	syn
entity_count	6

▶

6. Citations (1)

▶

length_a	1.000 Å
length_b	1.000 Å
length_c	1.000 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	—

space_group	P 1
int_tables_number	1
crystal_system	triclinic

resolution	3.54 Å
resolution_method	—
num_particles	29793

fit	/app/data/saxs_computation/ql/9qls/9qls.fit
pddf	/app/data/pr_computation/ql/9qls/9qls.pr.out
profile	/app/data/saxs_computation/ql/9qls/9qls.dat

Human dysferlin (1-2017) in the lipid-free, Ca2+-bound state

SAXS Profile

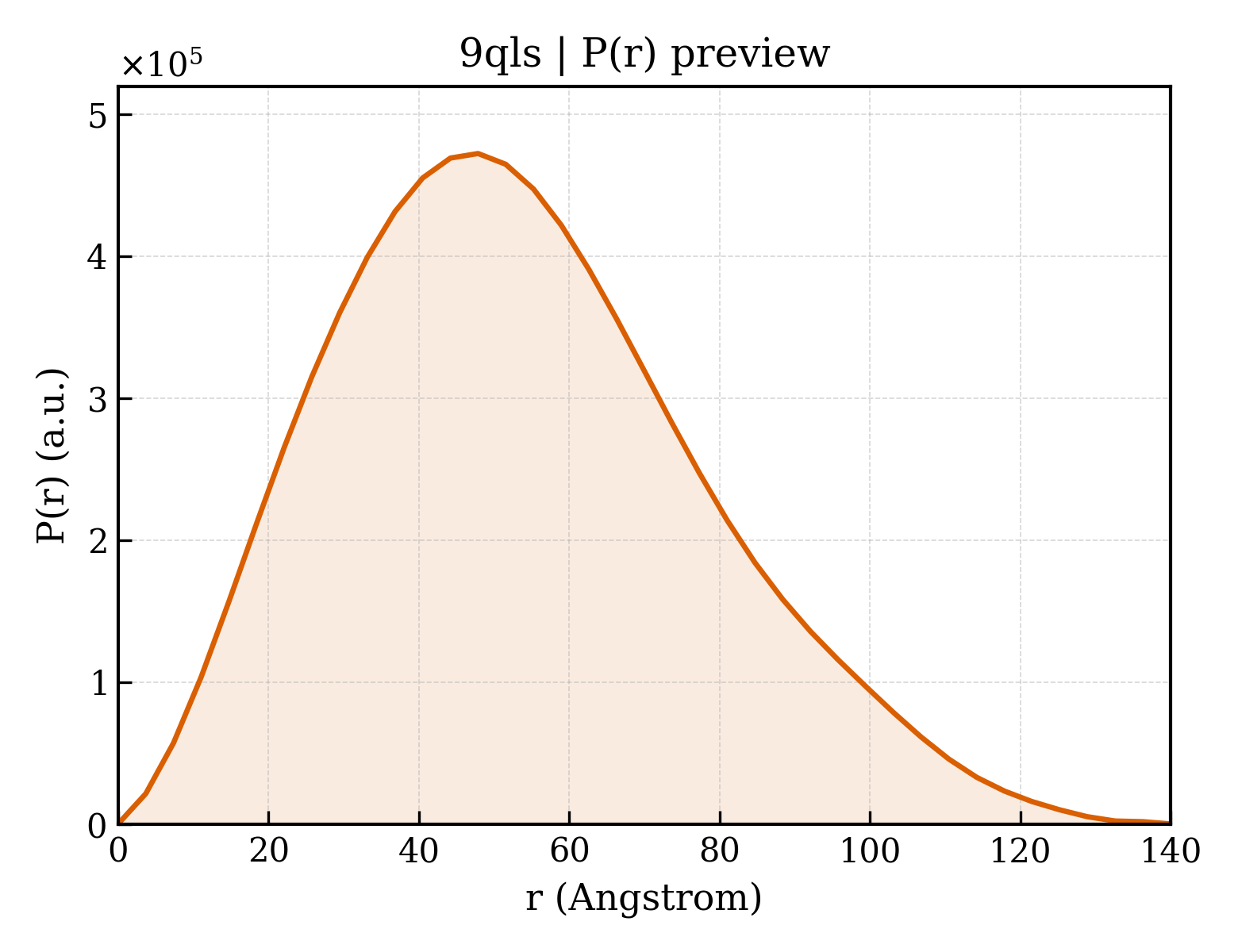

P(r) Distribution
