Streptavidin 112Y-121W-124F with a thiophenol cofactor as artificial hydrogen atom transferase

Method: X-RAY DIFFRACTION Dmax: 66.8 Å Quality: GOOD

SAXS Profile

SAXS profile for 9qnz

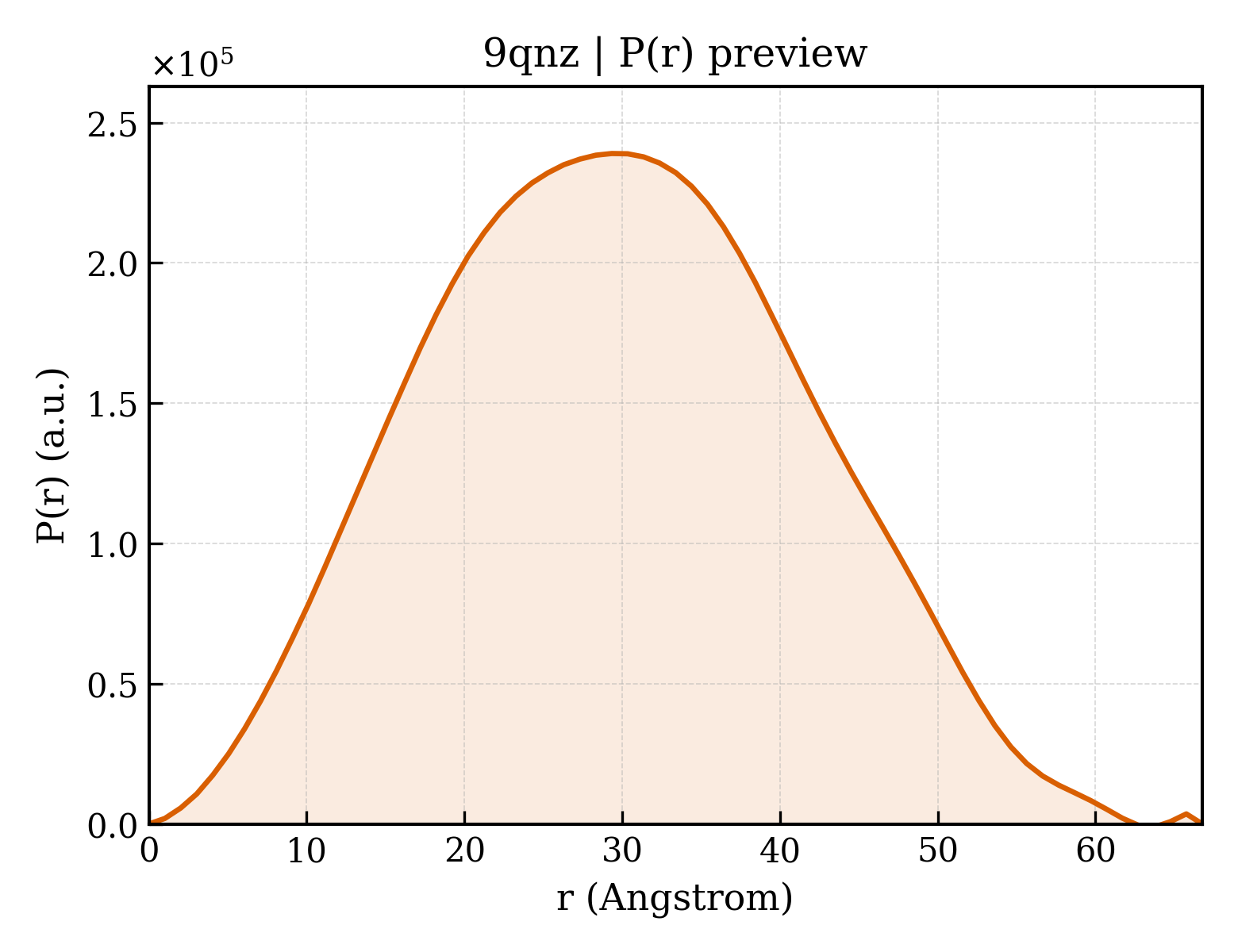

P(r) Distribution

P(r) distribution for 9qnz

1. Structure Basics

entry_id9qnz
deposition_date2025-03-25
titleStreptavidin 112Y-121W-124F with a thiophenol cofactor as artificial hydrogen atom transferase
keywordsHydrogen atom transfer, thiophenol, streptavidin, transferase; TRANSFERASE
methodX-RAY DIFFRACTION

Download Data

2. SAXS Parameters (CRYSOL)

rg_guinier22.66
rg_electron21.68
i096570300.00
molecular_weight51263.0 kDa
excluded_volume49271 ų
envelope_volume77089 ų
shell_volume28266 ų
envelope_diameter70.8
shell_rg29.53
envelope_rg22.00
shape_rg21.64
total_rg22.37
total_atoms3887
n_residues498
n_harmonics20
q_range— – 0.5000 −1
n_points101
shell_typedirectional
solvent_density0.3340 e/ų
contrast_shell0.0300 e/ų
crysol_version4.1.3

3. P(r) Analysis (GNOM)

dmax66.8
rg_real22.51
rg_real_error0.30
i0_real9.6570e+07
i0_real_error1.0690e+06
rg_reciprocal22.55
i0_reciprocal96570000.0000
total_estimate0.8352
solution_quality GOOD a GOOD solution
n_peaks2
r_peak_primary29.3
skewness0.107
kurtosis-0.542
angular_range— – 0.3500 −1
current_alpha0.0000
highest_alpha27010000.0000
n_real_points67
gnom_version4.1.3
quality_criteria AN1: 0.000; Oscil: 0.957; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.983; Smooth: 0.000
