9qqi
Mini-bacterioferritin from Candidatus Methanoperedens species BLZ2 untreated control of a redox cycling experiment
SAXS Profile

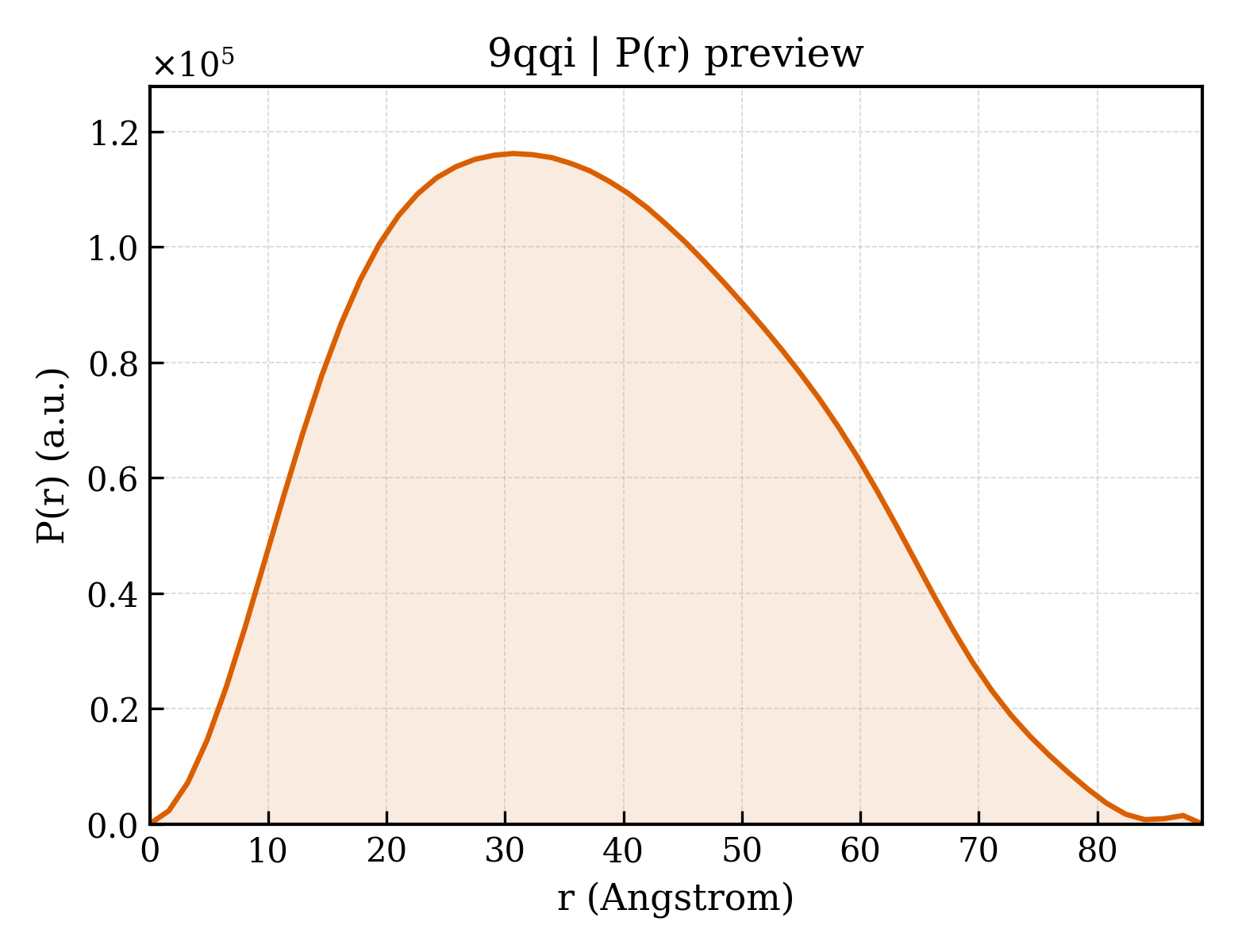

P(r) Distribution
1. Structure Basics
| entry_id | 9qqi |
| deposition_date | 2025-03-31 |
| title | Mini-bacterioferritin from Candidatus Methanoperedens species BLZ2 untreated control of a redox cycling experiment |
| keywords | ;ferritin-like protein, mini-ferritin, Fe-coproporphyrin III, anaerobic methane-oxidising archaea, archaea, iron homeostasis, iron storage, dodecamer, nano-compartment, OXIDOREDUCTASE ;; OXIDOREDUCTASE |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 28.93 Å |
| rg_electron | 28.42 Å |
| i0 | 70507200.00 |
| molecular_weight | 65218.0 kDa |
| excluded_volume | 80918 ų |
| envelope_volume | 99740 ų |
| shell_volume | 28995 ų |
| envelope_diameter | 94.7 Å |
| shell_rg | 36.20 Å |
| envelope_rg | 28.38 Å |
| shape_rg | 28.43 Å |
| total_rg | 29.10 Å |
| total_atoms | 4530 |
| n_residues | 550 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 88.9 Å |
| rg_real | 28.94 Å |
| rg_real_error | 0.57 Å |
| i0_real | 7.0510e+07 |
| i0_real_error | 1.0890e+06 |
| rg_reciprocal | 28.94 Å |
| i0_reciprocal | 70510000.0000 |
| total_estimate | 0.9002 |
| solution_quality | EXCELLENT a EXCELLENT solution |
| n_peaks | 2 |
| r_peak_primary | 30.7 Å |
| skewness | 0.243 |
| kurtosis | -0.679 |
| angular_range | — – 0.2750 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 13800000.0000 |
| n_real_points | 56 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.974; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.945; Smooth: 0.831 |
