9quh

Structure of human MTH1 in complex with 8DG by MicroED using high electron fluence

Method: ELECTRON CRYSTALLOGRAPHY D_max: 77.4 Å Quality: GOOD

SAXS Profile

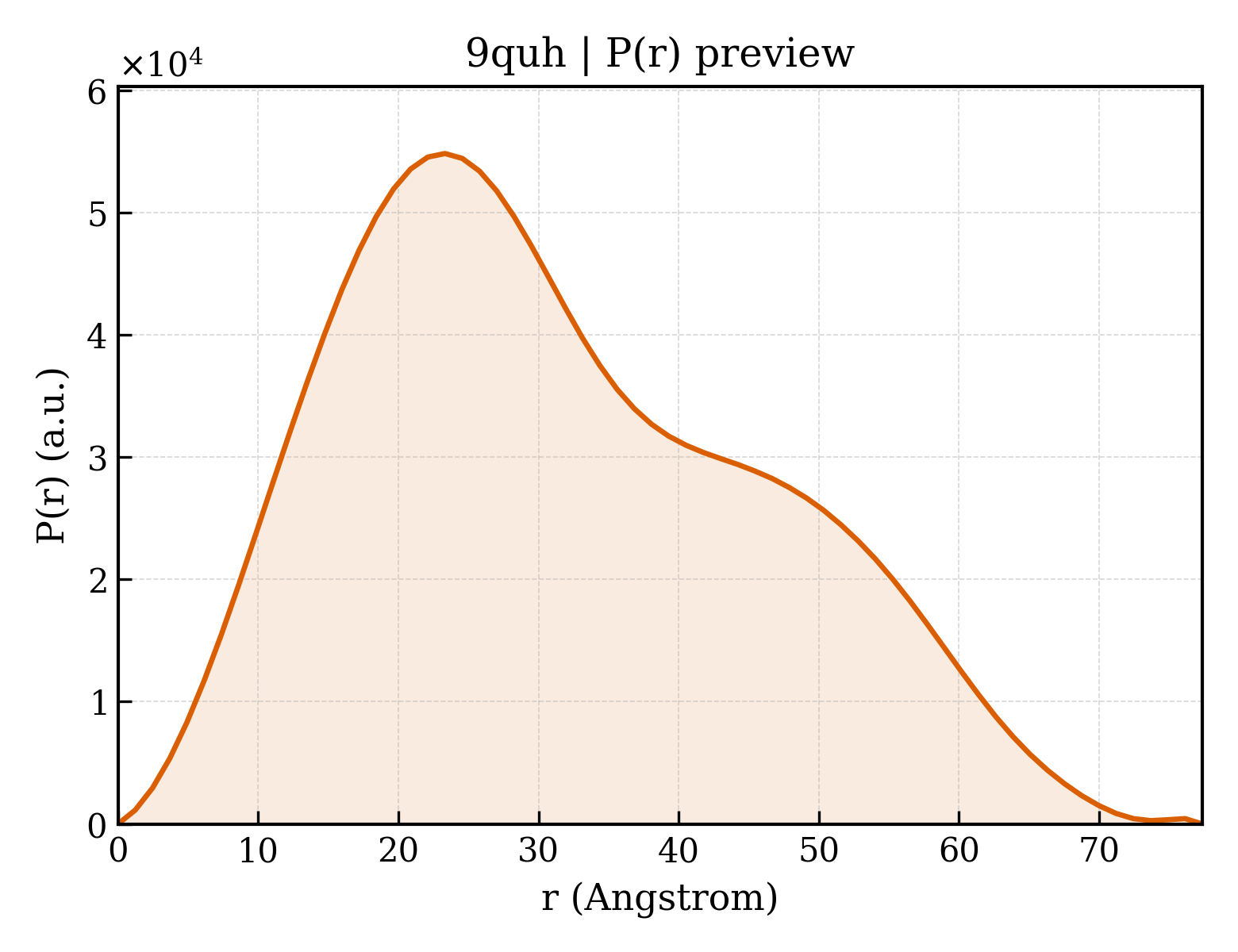

P(r) Distribution

▼

1. Structure Basics

entry_id	9quh
deposition_date	2025-04-10
last_revision	2026-04-22
title	Structure of human MTH1 in complex with 8DG by MicroED using high electron fluence
keywords	serial electron diffraction, SerialED, MicroED, MTH1, 8DG, Hydrolase; HYDROLASE
method	ELECTRON CRYSTALLOGRAPHY

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	24.34 Å
rg_electron	23.26 Å
i0	24519200.00
molecular_weight	36904.0 kDa
excluded_volume	45708 Å³
envelope_volume	55022 Å³
shell_volume	20619 Å³
envelope_diameter	78.3 Å
shell_rg	29.05 Å
envelope_rg	23.22 Å
shape_rg	23.20 Å
total_rg	24.15 Å
total_atoms	5058
n_residues	309
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	77.4 Å
rg_real	24.47 Å
rg_real_error	0.55 Å
i0_real	2.4520e+07
i0_real_error	3.3560e+05
rg_reciprocal	24.44 Å
i0_reciprocal	24520000.0000
total_estimate	0.8687
solution_quality	GOOD a GOOD solution
n_peaks	2
r_peak_primary	23.3 Å
skewness	0.401
kurtosis	-0.635
angular_range	— – 0.3250 Å⁻¹
current_alpha	0.0000
highest_alpha	6603000.0000
n_real_points	64
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.820; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.859; Smooth: 0.969

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (4)

Entity 1 polymer

description	7,8-dihydro-8-oxoguanine triphosphatase
formula_weight	18253.7 kDa
ec_number	3.6.1.55,3.6.1.56
src_method	man
entity_count	2

Polymer

type	polypeptide(L)
strand_id	A,B
atom_count	5114

GSHMGASRLYTLVLVLQPQRVLLGMKKRGFGAGRWNGFGGKVQEGETIEDGARRELQEESGLTVDALHKVGQIVFEFVGEPELMDVHVFCTDSIQGTPVESDEMRPCWFQLDQIPFKDMWPDDSYWFPLLLQKKKFHGYFKFQGQDTILDYTLREVDTV

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Escherichia coli

Entity 2 non-polymer

description	8-OXO-2'-DEOXYGUANOSINE-5'-TRIPHOSPHATE
formula_weight	523.2 kDa
src_method	syn
entity_count	2

Entity 3 non-polymer

description	SULFATE ION
formula_weight	96.1 kDa
src_method	syn
entity_count	3

Entity 4 water

description	water
formula_weight	18.0 kDa
src_method	nat
entity_count	41

▶

6. Citations (1)

▶

length_a	59.340 Å
length_b	67.550 Å
length_c	80.110 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	8

space_group	P 21 21 21
int_tables_number	19
crystal_system	orthorhombic

resolution	2.320 Å
resolution_low	29.350 Å
r_factor	0.2065
r_work	0.2036
r_free	0.2624

resolution	2.32 Å
resolution_method	—
num_particles	—
