1. Structure Basics

entry_id	9qxs
deposition_date	2025-04-16
title	E. coli JetABC dimer in a DNA boarding state
keywords	SMC complexes, Wadjet, JetABCD, DNA loop extrusion, DNA BINDING PROTEIN; DNA BINDING PROTEIN
method	ELECTRON MICROSCOPY

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	86.04 Å
rg_electron	87.10 Å
i0	5325540000.00
molecular_weight	581060.0 kDa
excluded_volume	712230 Å³
envelope_volume	1386700 Å³
shell_volume	138600 Å³
envelope_diameter	290.0 Å
shell_rg	78.07 Å
envelope_rg	82.12 Å
shape_rg	87.15 Å
total_rg	86.86 Å
total_atoms	80334
n_residues	4896
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	227.9 Å
rg_real	82.84 Å
rg_real_error	0.73 Å
i0_real	5.1000e+09
i0_real_error	8.8370e+07
rg_reciprocal	84.43 Å
i0_reciprocal	5299000000.0000
total_estimate	0.8966
solution_quality	GOOD a GOOD solution
n_peaks	2
r_peak_primary	126.6 Å
skewness	0.128
kurtosis	-0.884
angular_range	— – 0.0900 Å⁻¹
current_alpha	1.2970
highest_alpha	172400000.0000
n_real_points	19
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.999; Stabil: 0.966; Sysdev: 1.000; Positv: 1.000; Valcen: 0.772; Smooth: 0.000

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (7)

Entity 1 polymer

description	JetB
formula_weight	28020.4 kDa
src_method	man
entity_count	4

Polymer

type	polypeptide(L)
strand_id	C,D,H,I
atom_count	80334

MAGFFDKLINRSVTANAGCEPEPSDEEVTDESVEDSLASSETRTLQKIREATQELLKYGLLEEASKPNLYRIVLSHPEEVTRILEPLDLDIGIDEIRGLLYVKVRLDETPAQDEWAHPLVRRQRLNLEQSLLVAILRQHFVAWEQESGTGASQAQIAIDDLLPQLQIYLGDPGSESKERTRLLTLLDQLKGHGLVTSPDAHERIVIRPIIAHLADPINLQALLAWLREQIAQQTSPNDAPEKDSSEEDVG

Source

organism	Escherichia coli
ncbi_taxonomy_id	562
host_organism	Escherichia coli BL21

Entity 2 polymer

description	JetA
formula_weight	57818.9 kDa
src_method	man
entity_count	2

Polymer

type	polypeptide(L)
strand_id	E,j

GPAAMEENTRQRTENYISAKNQHPAWILLATRRAPLVLSCLKTLFEKSHDGIPLEEAIQSLSSILIEHVSQEQYDINQDNPFLQASRELREWIKRRLIVERDGRIFATDALEVAITFVESLDNRFMTSTASRLSTVQREIENLETRLNPNPANRVATLRRRISELERELQEAEAGHIEVLETHQAVEHIRDVYNLASSLRADFRRVEDSWREADRALRQSIIGEQYHRGDIVERLLNDQDALLNTPEGRVFDSFQQQLRQSSELKAMSERLRVILSHPSASDALNRLQRHDLRWLVKRLVDESQTVLQARARSERDVRGFMKTGLAAEHHRVGHLLNEFLNLALKLDWQRQMIRKQEVPLPAVGVAVTGIPAIERLRFKEVDDEAEQTLDLSNHAADLTQIGDDFWDAFNGLDREVLIQQTLQLLAKENRPVGLAELAELLPPAHDLETFAVWIGMAREAGIEVIDSQREFAELSDGEGRRWRFNLPTTGLESQALMDIDWEG

Source

organism	Escherichia coli
ncbi_taxonomy_id	562
host_organism	Escherichia coli BL21

Entity 3 polymer

description	JetC
formula_weight	124562.9 kDa
src_method	man
entity_count	4

Polymer

type	polypeptide(L)
strand_id	A,B,F,G

MNQVSGLAGKESFILTRIELFNWGGFHGLHQAAIHQDGTAVIGPTGSGKTTLVDALMTLLCANPRYNLASTGGHESDRDLISYVRGVSGPGDGGEGQSHIARPGKTVTGIAATLEREGKQVRLGALLWFDSTSSSVTDMKRLWLFSDNPGQTLEHWLNVYHEGGTRLLRQMEKEAIGLWTYPNKKQYLARLRDFFEVGENAFTLLNRAAGLKQLNSIDEIFRELVLDDHSAFDRAAEVANSFDGLTEIHQELETARKQQQSLQPVALSWEKYQKQERQLADWLTLESLLPLWFAQQASHLWREKINLLNARLAEAQTSEEQLQSQLDLQKKVVSDCMQRYLQVGGANIDELNERIKDWQKTLGSREALARQYQQLTRNLGLPSDLSQPQLEANQHEAEARCEQIAVDIKLKQEEAYQKGALSHHITEELRERENERAEIARRPDSNLPAHYQAFRSELAKALNVDESELPFVAELIQVKPEEAQWRGAIERAVGSNRLRILVAPESAQEALRWVNQRNNRLHVRLLEVKLPHSPARFFDDGFTRKLLWKDHPWREAVKALLAESDRHCVDSPEQLHDTPHAMTVQGLMSGKQRFYDKHDQKRLDEDWLTGFDNRDRLNFLAKEIATLQEQVKTANAAFEFAKGEVGLLQNQAASFQKIEQIDFDSIDVPGAKSQLDALRERLENLTRPDSDASVAKAKLDEAQTIESELDKQLRAANKVTNVLDTELTLARAAERKAQQTAQQGMKEEERELCASHFPVVTLEQLPDIRDLERQHERGIQHEIERVKAELHRLNIELTKRMSEAKRVDTGALVEAGADLDDIPVYLQRLQELTEEALPEKLNRFLDYLNRSSDDGVTQLLSHIEHEVLVIEERLNELNETMFRVDFQPDRYLRLDTKKVVHESLRTLEKAQRQLNAARFVDDNGESHYKALQVLVAQLRDACERNRTLGAKALLDPRFRLEFAVSVMDRQSGNVIESRTGSQGGSGGEKEIIASYVLTASLSYALCPAGSRYPLFGTIILDEAFSRSSHAVAGRIIAALREFGLHAVFITPNKEMRLLRDHTRSAIVVHRRGQNSNMASLSWEELERHYQRRGNAG

Source

organism	Escherichia coli
ncbi_taxonomy_id	562
host_organism	Escherichia coli BL21

Entity 4 polymer

description	Biotinylated circular plasmid DNA (1894-MER)
formula_weight	18477.0 kDa
mutation	The DNA was modelled as polyAT track.
src_method	man
entity_count	2

Polymer

type	polydeoxyribonucleotide
strand_id	P,Q

ATATATATATATATATATATATATATATATATATATATATATATATATATATATATATAT

Source

organism	Escherichia coli
ncbi_taxonomy_id	562
host_organism	Escherichia coli

Entity 5 non-polymer

description	ADENOSINE-5'-DIPHOSPHATE
formula_weight	427.2 kDa
src_method	syn
entity_count	4

Entity 6 non-polymer

description	MAGNESIUM ION
formula_weight	24.3 kDa
src_method	syn
entity_count	4

Entity 7 non-polymer

description	BERYLLIUM TRIFLUORIDE ION
formula_weight	66.0 kDa
src_method	syn
entity_count	4

▶

6. Citations (1)

▶

length_a	1.000 Å
length_b	1.000 Å
length_c	1.000 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	—

space_group	P 1
int_tables_number	1
crystal_system	—

resolution	3.70 Å
resolution_method	—
num_particles	57494

fit	/app/data/saxs_computation/qx/9qxs/9qxs.fit
pddf	/app/data/pr_computation/qx/9qxs/9qxs.pr.out
profile	/app/data/saxs_computation/qx/9qxs/9qxs.dat

E. coli JetABC dimer in a DNA boarding state

SAXS Profile

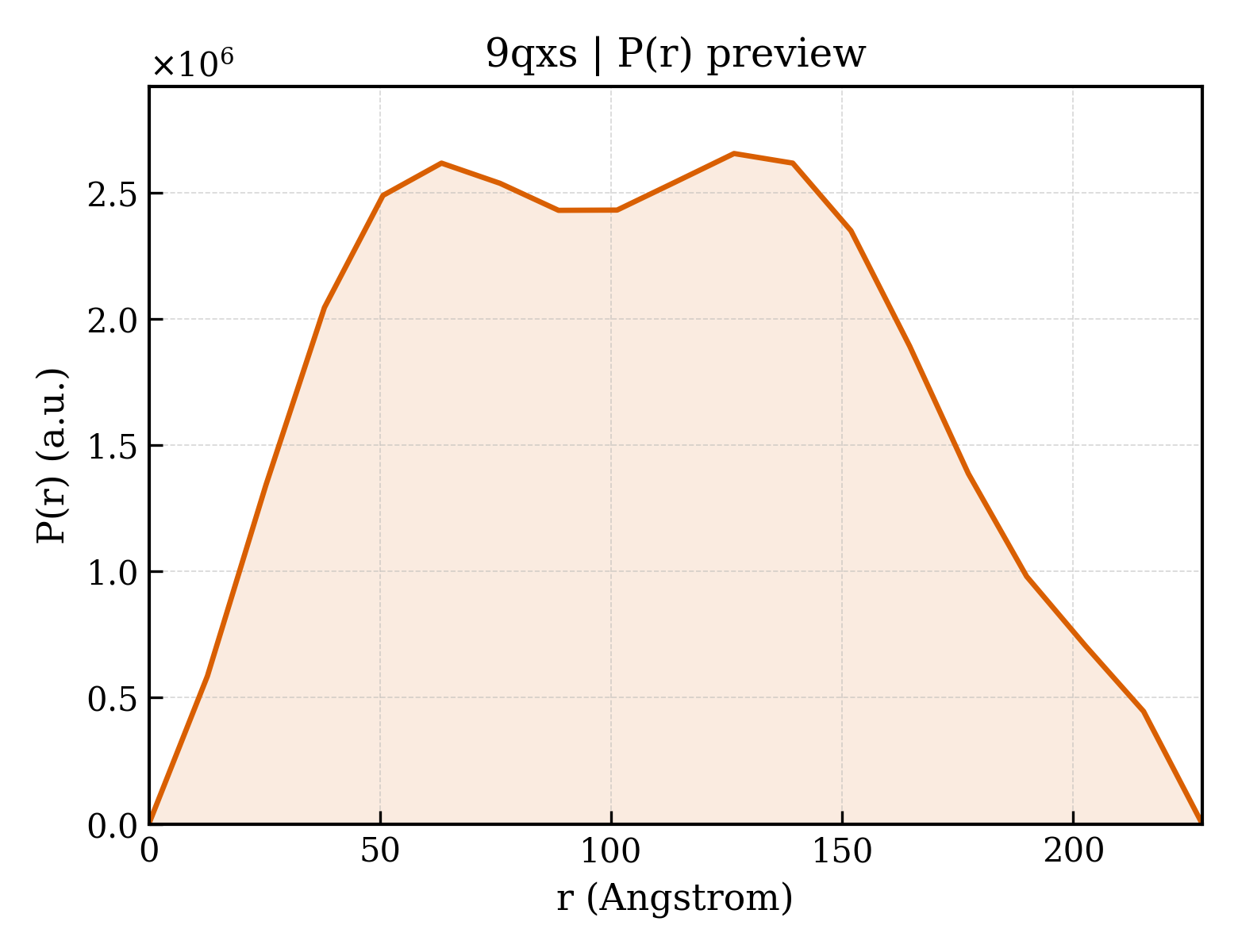

P(r) Distribution
