9qyq

Crystal structure of leaf branch compost cutinase variant ICCG L50Y T26E

Method: X-RAY DIFFRACTION D_max: 52.2 Å Quality: GOOD

SAXS Profile

P(r) Distribution

▼

1. Structure Basics

entry_id	9qyq
deposition_date	2025-04-20
title	Crystal structure of leaf branch compost cutinase variant ICCG L50Y T26E
keywords	Hydrolase, cutinase, PET depolymerase; HYDROLASE
method	X-RAY DIFFRACTION

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	18.01 Å
rg_electron	16.67 Å
i0	14160800.00
molecular_weight	27647.0 kDa
excluded_volume	34251 Å³
envelope_volume	37212 Å³
shell_volume	18217 Å³
envelope_diameter	54.6 Å
shell_rg	23.30 Å
envelope_rg	16.88 Å
shape_rg	16.65 Å
total_rg	17.67 Å
total_atoms	1947
n_residues	257
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

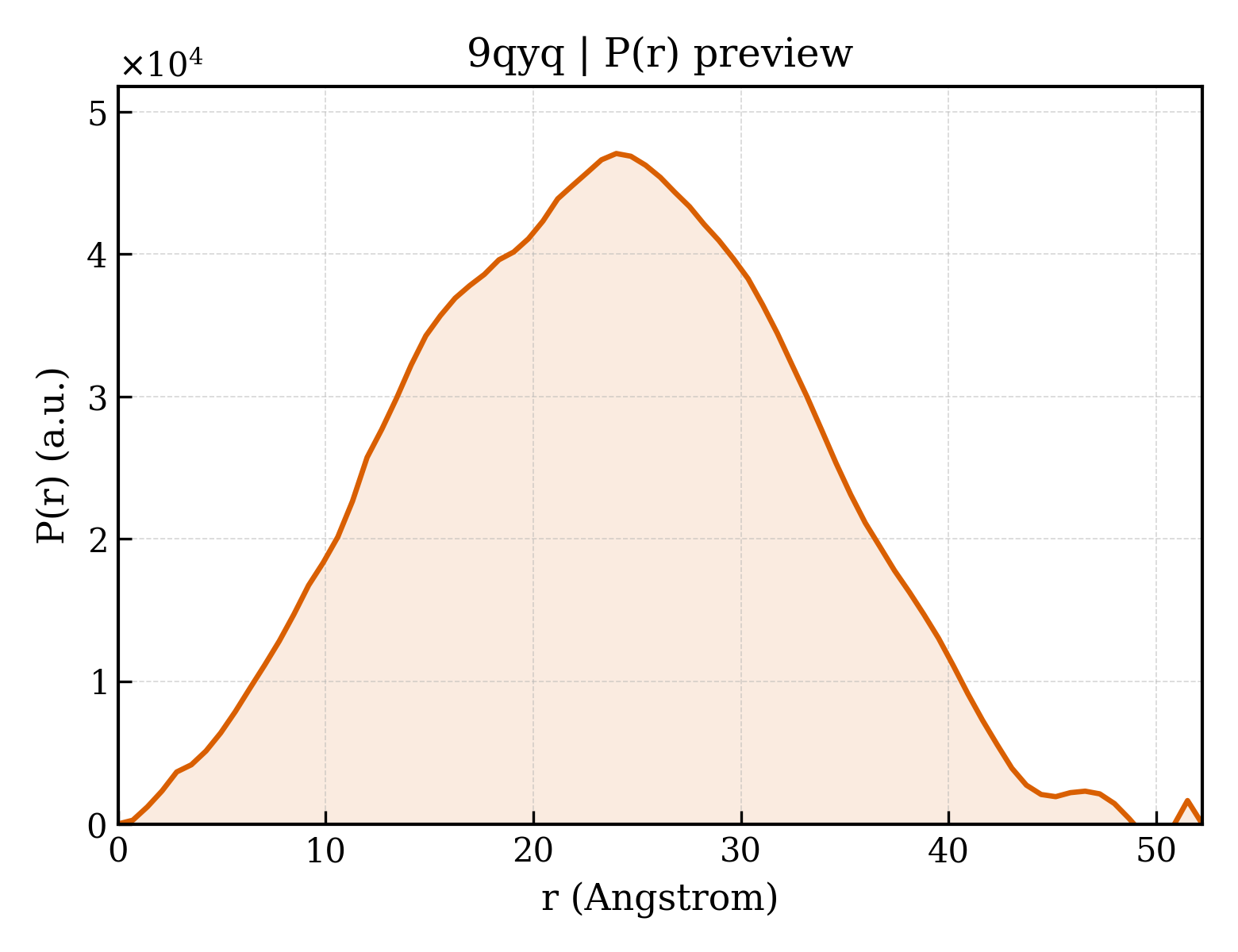

3. P(r) Analysis (GNOM)

dmax	52.2 Å
rg_real	17.84 Å
rg_real_error	0.25 Å
i0_real	1.4160e+07
i0_real_error	1.5840e+05
rg_reciprocal	17.86 Å
i0_reciprocal	14160000.0000
total_estimate	0.8139
solution_quality	GOOD a GOOD solution
n_peaks	3
r_peak_primary	24.0 Å
skewness	0.035
kurtosis	-0.509
angular_range	— – 0.4400 Å⁻¹
current_alpha	0.0000
highest_alpha	4110000.0000
n_real_points	75
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.893; Stabil: 0.974; Sysdev: 1.000; Positv: 1.000; Valcen: 0.974; Smooth: 0.000

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (3)

Entity 1 polymer

description	Leaf-branch compost cutinase
formula_weight	28944.3 kDa
ec_number	3.1.1.74,3.1.1.101
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	A
atom_count	2211

MSNPYQRGPNPTRSALTADGPFSVAEYTVSRLSVSGFGGGVIYYPTGTSYTFGGIAMSPGYTADASSLAWLGRRLASHGFVVLVINTNSRFDGPDSRASQLSAALNYLRTSSPSAVRARLDANRLAVAGHSMGGGGTLRIAEQNPSLKAAVPLTPWHTDKTFNTSVPVLIVGAEADTVAPVSQHAIPFYQNLPSTTPKVYVELCNASHIAPNSNNAAISVYTISWMKLWVDNDTRYRQFLCNVNDPALCDFRTNNRHCQLEHHHHHH

Source

organism	uncultured bacterium
ncbi_taxonomy_id	77133
host_organism	Escherichia coli BL21(DE3)

Entity 2 non-polymer

description	CHLORIDE ION
formula_weight	35.5 kDa
src_method	syn
entity_count	2

Entity 3 water

description	water
formula_weight	18.0 kDa
src_method	nat
entity_count	227

▶

6. Citations (1)

▶

length_a	97.120 Å
length_b	97.120 Å
length_c	73.930 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	8

space_group	P 41 21 2
int_tables_number	92
crystal_system	—

resolution	1.700 Å
resolution_low	48.560 Å
r_factor	—
r_work	0.1839
r_free	0.2122

fit	/app/data/saxs_computation/qy/9qyq/9qyq.fit
pddf	/app/data/pr_computation/qy/9qyq/9qyq.pr.out
profile	/app/data/saxs_computation/qy/9qyq/9qyq.dat
