9qyy

MINPP1 from Bacteroides thetaiotaomicron R183 mutant

Method: X-RAY DIFFRACTION D_max: 90.9 Å Quality: REASONABLE

SAXS Profile

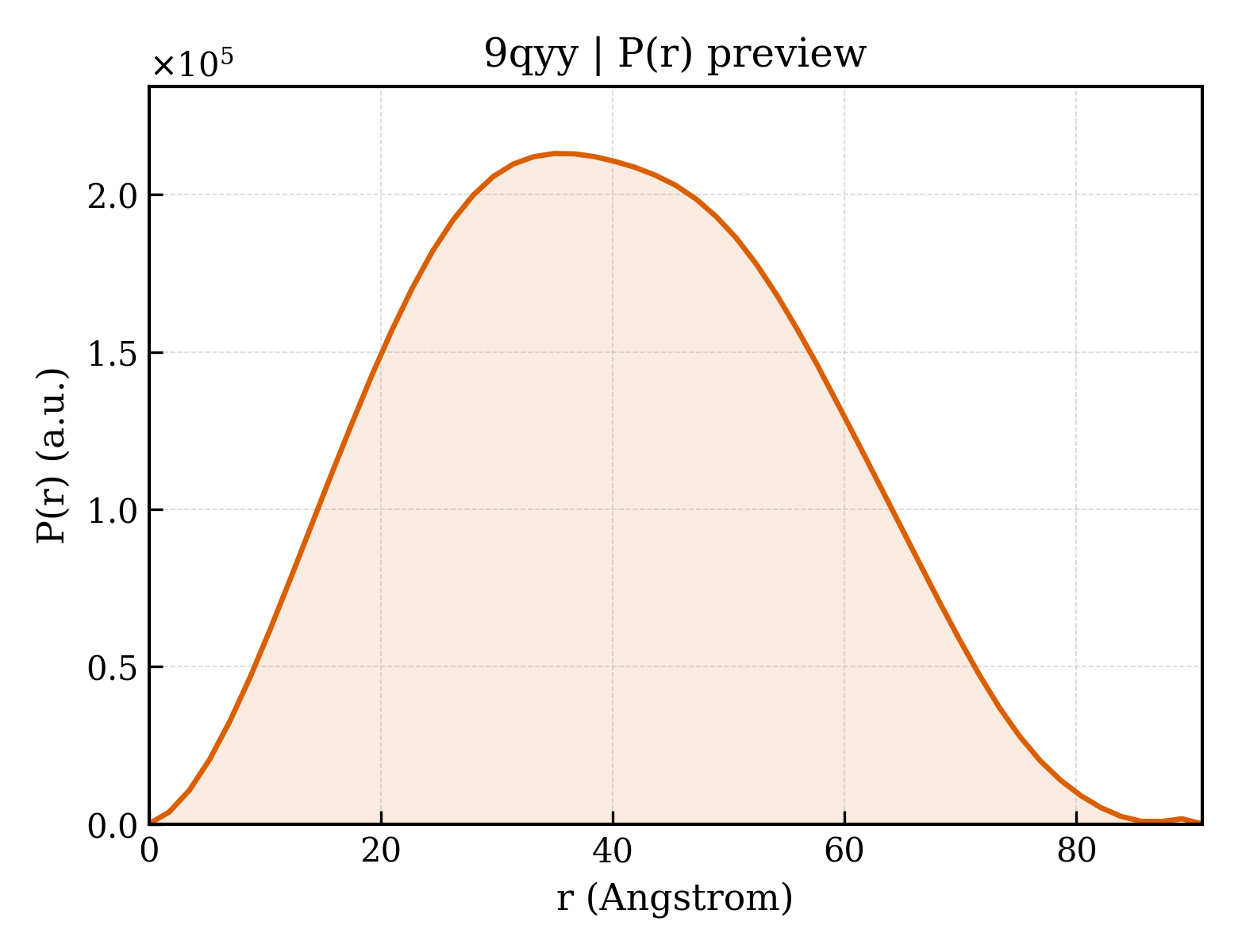

P(r) Distribution

▼

1. Structure Basics

entry_id	9qyy
deposition_date	2025-04-22
title	MINPP1 from Bacteroides thetaiotaomicron R183 mutant
keywords	Histidine phosphatase, phytase, mutant, complex, HYDROLASE; HYDROLASE
method	X-RAY DIFFRACTION

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	30.59 Å
rg_electron	29.53 Å
i0	127147000.00
molecular_weight	91818.0 kDa
excluded_volume	115950 Å³
envelope_volume	140730 Å³
shell_volume	39030 Å³
envelope_diameter	96.0 Å
shell_rg	37.34 Å
envelope_rg	29.39 Å
shape_rg	29.50 Å
total_rg	30.36 Å
total_atoms	6472
n_residues	792
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	90.9 Å
rg_real	30.45 Å
rg_real_error	0.57 Å
i0_real	1.2710e+08
i0_real_error	1.8240e+06
rg_reciprocal	30.52 Å
i0_reciprocal	127200000.0000
total_estimate	0.7246
solution_quality	REASONABLE a REASONABLE solution
n_peaks	2
r_peak_primary	35.0 Å
skewness	0.126
kurtosis	-0.659
angular_range	— – 0.2600 Å⁻¹
current_alpha	0.0000
highest_alpha	25900000.0000
n_real_points	53
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.984; Stabil: 1.000; Sysdev: 0.193; Positv: 1.000; Valcen: 0.998; Smooth: 0.884

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (3)

Entity 1 polymer

description	Multiple inositol polyphosphate phosphatase 1
formula_weight	49161.3 kDa
ec_number	3.1.3.62,3.1.3.80
src_method	man
entity_count	2

Polymer

type	polypeptide(L)
strand_id	A,B
atom_count	6713

MGSSHHHHHHSSGLVPRGSHMQTKIQKYAGTAMPYPNRTDSSITFRDGMTPFYINHLGRHGARFPTSRKALDKVEKVLVSAQQENGLTSEGMALLSMIRRLSRLFDGQWGKLSKLGETEQEGIAGRMIRNYPQLFSNSAKIEAIATYVPRSINSMDAFLSCMIRHNPALQVQRSEGKQYNHILDFFDLNKSYVNYKEKGDWLPIYKAFVHKKISPVPIMKKFLLNPEQYLDKEAEEFVMALFSVAAILPDTSIPLNLEDLFTLDEWHRYWQTQNLRQYMSKSSAPVGKMLPVAIAWPLLSEFIRSAQEVISGKSDYQANFRFAHAETVIPFVSLMGIEKTDVQVCRPDSVSVYWKDYEISPMAANVQWLFYRDRDQRIWVKILLNEEAAALPISTACFPYYSWEKTRIFFNQRIEMAKKTLSVFNE

Source

organism	Bacteroides thetaiotaomicron VPI-5482
ncbi_taxonomy_id	226186
host_organism	Escherichia coli BL21(DE3)

Entity 2 non-polymer

description	PHOSPHATE ION
formula_weight	95.0 kDa
src_method	syn
entity_count	2

Entity 3 water

description	water
formula_weight	18.0 kDa
src_method	nat
entity_count	229

▶

6. Citations (1)

▶

length_a	52.383 Å
length_b	119.123 Å
length_c	76.031 Å
angle_alpha	90.00 °
angle_beta	107.96 °
angle_gamma	90.00 °
z_pdb	4

space_group	P 1 21 1
int_tables_number	4
crystal_system	monoclinic

resolution	2.360 Å
resolution_low	30.760 Å
r_factor	0.1665
r_work	0.1636
r_free	0.2200
