9qz2

MINPP1 from Bacteroides thetaiotaomicron A324D/E325N mutant

Method: X-RAY DIFFRACTION D_max: 93.3 Å Quality: EXCELLENT

SAXS Profile

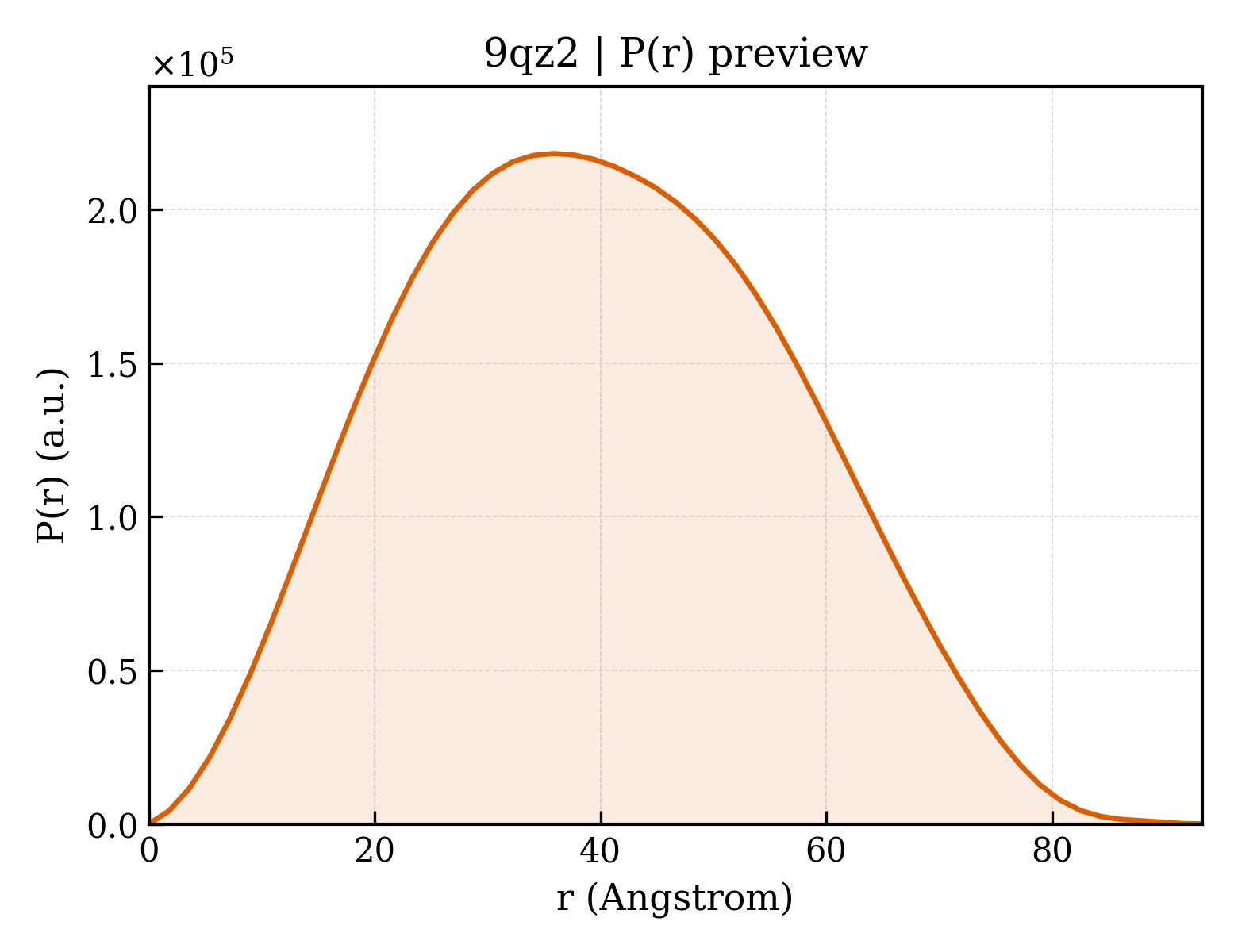

P(r) Distribution

▼

1. Structure Basics

entry_id	9qz2
deposition_date	2025-04-22
last_revision	2025-05-14
title	MINPP1 from Bacteroides thetaiotaomicron A324D/E325N mutant
keywords	Histidine phosphatase, phytase, mutant, complex, HYDROLASE; HYDROLASE
method	X-RAY DIFFRACTION

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	30.56 Å
rg_electron	29.54 Å
i0	129088000.00
molecular_weight	92124.0 kDa
excluded_volume	116180 Å³
envelope_volume	141400 Å³
shell_volume	39143 Å³
envelope_diameter	96.3 Å
shell_rg	37.43 Å
envelope_rg	29.44 Å
shape_rg	29.51 Å
total_rg	30.37 Å
total_atoms	6490
n_residues	790
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	93.3 Å
rg_real	30.42 Å
rg_real_error	0.44 Å
i0_real	1.2910e+08
i0_real_error	1.8060e+06
rg_reciprocal	30.48 Å
i0_reciprocal	129100000.0000
total_estimate	0.9125
solution_quality	EXCELLENT a EXCELLENT solution
n_peaks	1
r_peak_primary	35.9 Å
skewness	0.132
kurtosis	-0.649
angular_range	— – 0.2600 Å⁻¹
current_alpha	0.0000
highest_alpha	26240000.0000
n_real_points	53
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.968; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.999; Smooth: 0.954

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (3)

Entity 1 polymer

description	Multiple inositol polyphosphate phosphatase 1
formula_weight	49311.4 kDa
ec_number	3.1.3.62,3.1.3.80
mutation	A324D,E325N
src_method	man
entity_count	2

Polymer

type	polypeptide(L)
strand_id	A,B
atom_count	6795

MGSSHHHHHHSSGLVPRGSHMQTKIQKYAGTAMPYPNRTDSSITFRDGMTPFYINHLGRHGARFPTSRKALDKVEKVLVSAQQENGLTSEGMALLSMIRRLSRLFDGQWGKLSKLGETEQEGIAGRMIRNYPQLFSNSAKIEAIATYVPRSINSMDAFLSCMIRHNPALQVQRSEGKQYNHILRFFDLNKSYVNYKEKGDWLPIYKAFVHKKISPVPIMKKFLLNPEQYLDKEAEEFVMALFSVAAILPDTSIPLNLEDLFTLDEWHRYWQTQNLRQYMSKSSAPVGKMLPVAIAWPLLSEFIRSAQEVISGKSDYQANFRFAHDNTVIPFVSLMGIEKTDVQVCRPDSVSVYWKDYEISPMAANVQWLFYRDRDQRIWVKILLNEEAAALPISTACFPYYSWEKTRIFFNQRIEMAKKTLSVFNE

Source

organism	Bacteroides thetaiotaomicron VPI-5482
ncbi_taxonomy_id	226186
host_organism	Escherichia coli BL21(DE3)

Entity 2 non-polymer

description	PHOSPHATE ION
formula_weight	95.0 kDa
src_method	nat
entity_count	2

Entity 3 water

description	water
formula_weight	18.0 kDa
src_method	nat
entity_count	298

▶

6. Citations (1)

▶

length_a	52.470 Å
length_b	117.910 Å
length_c	76.110 Å
angle_alpha	90.00 °
angle_beta	108.13 °
angle_gamma	90.00 °
z_pdb	4

space_group	P 1 21 1
int_tables_number	4
crystal_system	monoclinic

resolution	1.950 Å
resolution_low	26.610 Å
r_factor	0.1889
r_work	0.1873
r_free	0.2191

fit	/app/data/saxs_computation/qz/9qz2/9qz2.fit
pddf	/app/data/pr_computation/qz/9qz2/9qz2.pr.out
profile	/app/data/saxs_computation/qz/9qz2/9qz2.dat
