9qzd
de novo NTF2-like protein
SAXS Profile

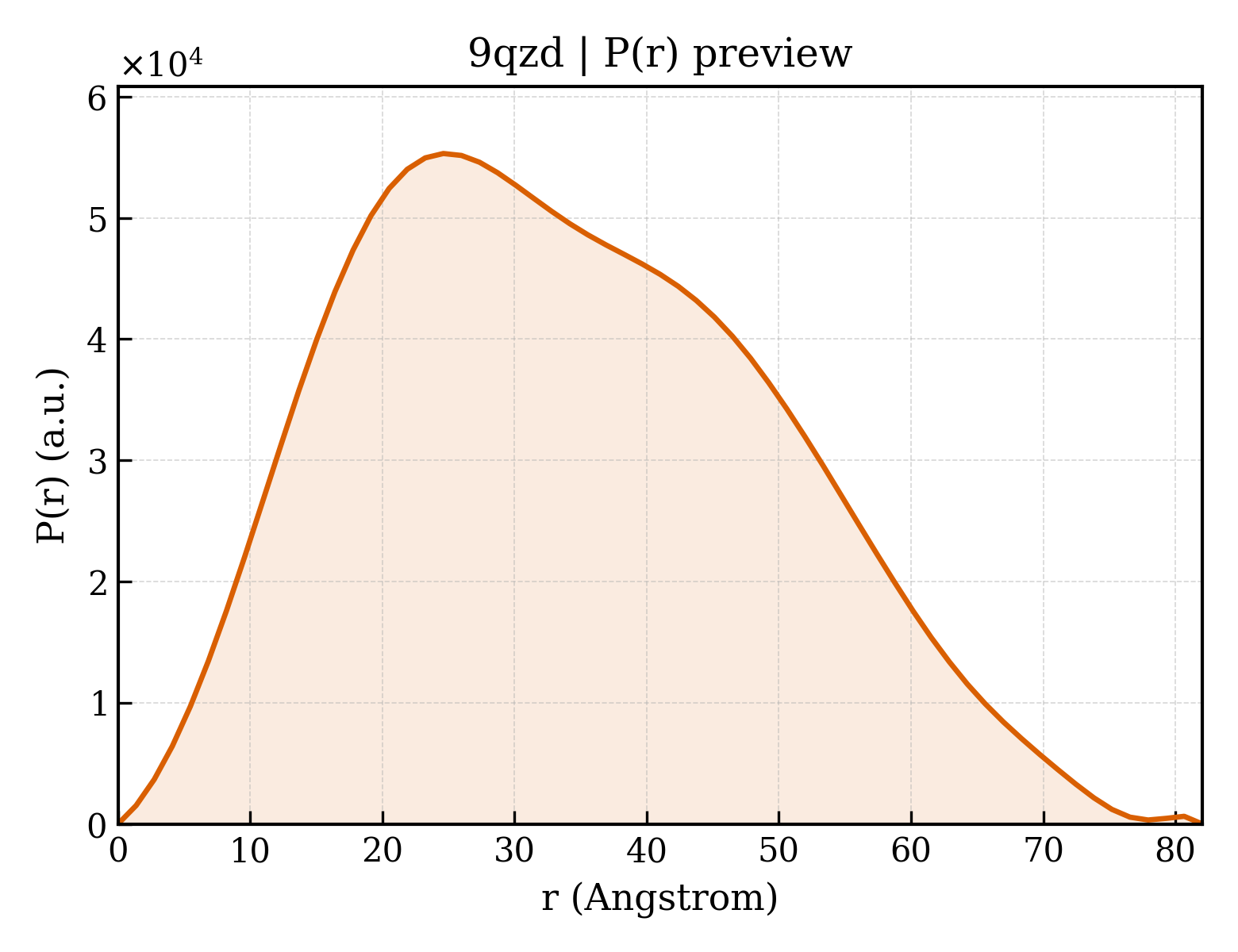

P(r) Distribution
1. Structure Basics
| entry_id | 9qzd |
| deposition_date | 2025-04-22 |
| last_revision | 2025-10-22 |
| title | de novo NTF2-like protein |
| keywords | NTF2, DE NOVO PROTEIN; DE NOVO PROTEIN |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 26.31 Å |
| rg_electron | 25.49 Å |
| i0 | 29296900.00 |
| molecular_weight | 42234.0 kDa |
| excluded_volume | 53212 ų |
| envelope_volume | 66955 ų |
| shell_volume | 22834 ų |
| envelope_diameter | 83.7 Å |
| shell_rg | 31.64 Å |
| envelope_rg | 25.23 Å |
| shape_rg | 25.47 Å |
| total_rg | 26.31 Å |
| total_atoms | 2979 |
| n_residues | 361 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 82.0 Å |
| rg_real | 26.34 Å |
| rg_real_error | 0.49 Å |
| i0_real | 2.9300e+07 |
| i0_real_error | 4.2670e+05 |
| rg_reciprocal | 26.33 Å |
| i0_reciprocal | 29300000.0000 |
| total_estimate | 0.7379 |
| solution_quality | REASONABLE a REASONABLE solution |
| n_peaks | 2 |
| r_peak_primary | 24.6 Å |
| skewness | 0.288 |
| kurtosis | -0.621 |
| angular_range | — – 0.3000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 6131000.0000 |
| n_real_points | 61 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.953; Stabil: 1.000; Sysdev: 0.291; Positv: 1.000; Valcen: 0.946; Smooth: 0.910 |
