9qzh
GID4 in complex with Compound 33
SAXS Profile

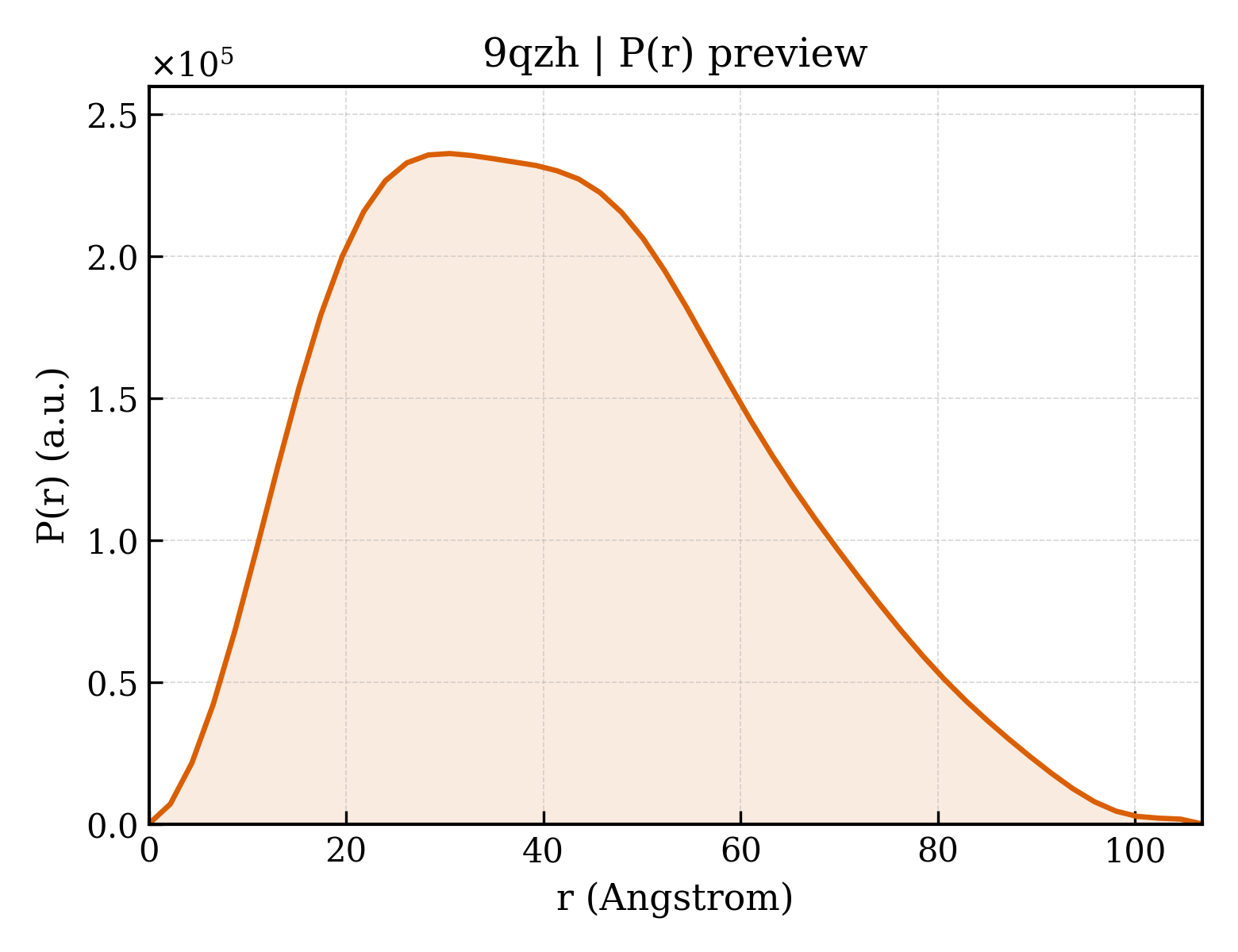

P(r) Distribution
1. Structure Basics
| entry_id | 9qzh |
| deposition_date | 2025-04-23 |
| last_revision | 2026-05-06 |
| title | GID4 in complex with Compound 33 |
| keywords | E3 Ubiquitin ligase, ubiquitination, Targeted Protein Degradation, LIGASE; LIGASE |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 32.49 Å |
| rg_electron | 32.30 Å |
| i0 | 161563000.00 |
| molecular_weight | 69934.0 kDa |
| excluded_volume | 68801 ų |
| envelope_volume | 122850 ų |
| shell_volume | 33761 ų |
| envelope_diameter | 112.0 Å |
| shell_rg | 36.93 Å |
| envelope_rg | 32.19 Å |
| shape_rg | 32.28 Å |
| total_rg | 32.62 Å |
| total_atoms | 5331 |
| n_residues | 629 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 106.8 Å |
| rg_real | 32.66 Å |
| rg_real_error | 0.71 Å |
| i0_real | 1.6160e+08 |
| i0_real_error | 2.5500e+06 |
| rg_reciprocal | 32.59 Å |
| i0_reciprocal | 161600000.0000 |
| total_estimate | 0.8728 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 1 |
| r_peak_primary | 30.5 Å |
| skewness | 0.397 |
| kurtosis | -0.455 |
| angular_range | — – 0.2450 Å−1 |
| current_alpha | 0.0001 |
| highest_alpha | 56060000.0000 |
| n_real_points | 50 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.892; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.893; Smooth: 0.772 |
