9qzx

Room temperature fragment screening of soluble epoxide hydrolase by serial crystallography

Method: X-RAY DIFFRACTION D_max: 96.5 Å Quality: GOOD

SAXS Profile

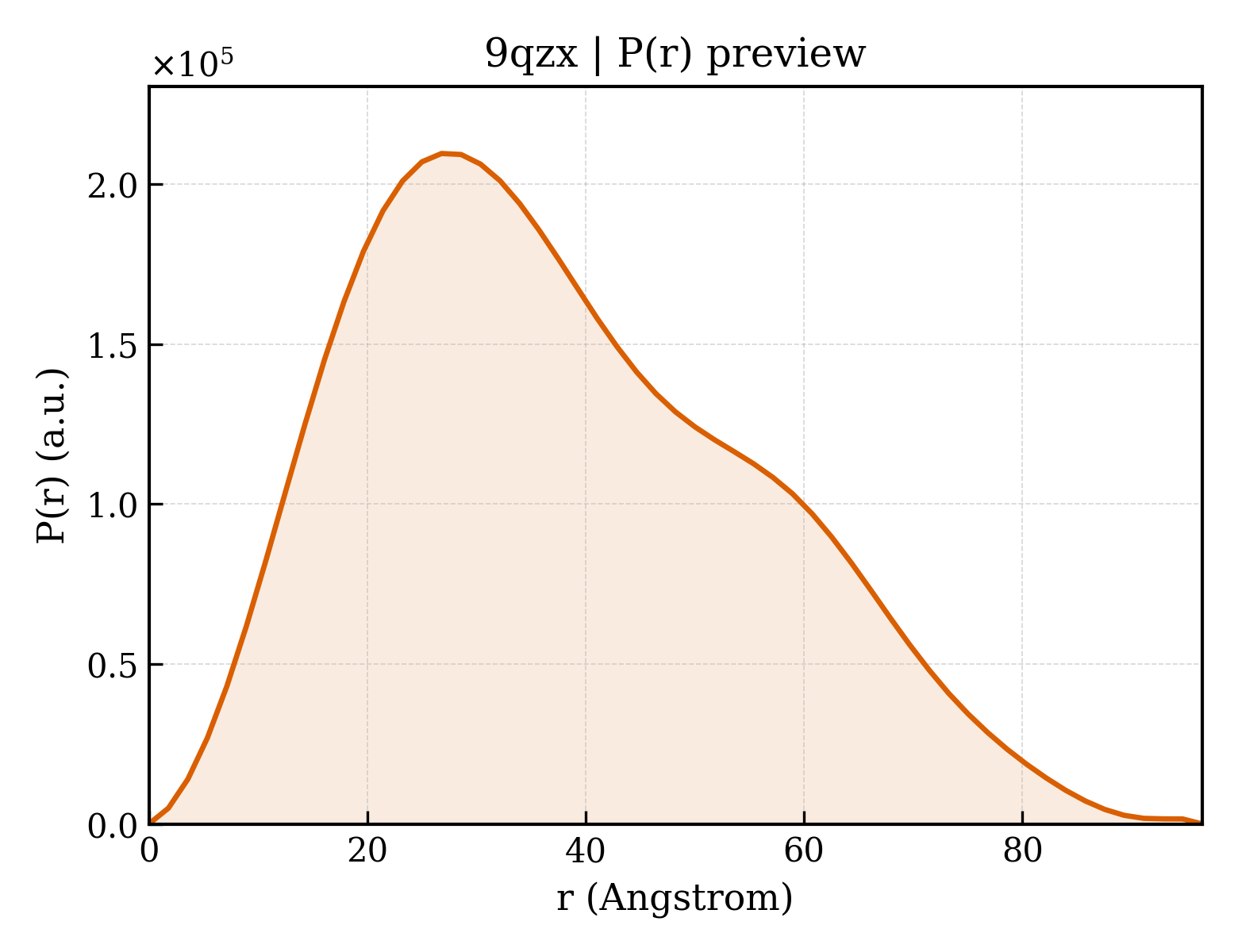

P(r) Distribution

▼

1. Structure Basics

entry_id	9qzx
deposition_date	2025-04-24
last_revision	2026-05-06
title	Room temperature fragment screening of soluble epoxide hydrolase by serial crystallography
keywords	Inhibitor, fragment, SSX, serial crystallography, HYDROLASE; HYDROLASE
method	X-RAY DIFFRACTION

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	29.32 Å
rg_electron	28.92 Å
i0	116650000.00
molecular_weight	57490.0 kDa
excluded_volume	55785 Å³
envelope_volume	96459 Å³
shell_volume	28899 Å³
envelope_diameter	103.4 Å
shell_rg	34.76 Å
envelope_rg	28.87 Å
shape_rg	28.90 Å
total_rg	29.38 Å
total_atoms	4336
n_residues	546
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	96.5 Å
rg_real	29.46 Å
rg_real_error	0.73 Å
i0_real	1.1660e+08
i0_real_error	1.6830e+06
rg_reciprocal	29.40 Å
i0_reciprocal	116600000.0000
total_estimate	0.8652
solution_quality	GOOD a GOOD solution
n_peaks	1
r_peak_primary	26.8 Å
skewness	0.441
kurtosis	-0.506
angular_range	— – 0.2700 Å⁻¹
current_alpha	0.0000
highest_alpha	21300000.0000
n_real_points	55
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.810; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.901; Smooth: 0.912

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (4)

Entity 1 polymer

description	Bifunctional epoxide hydrolase 2
formula_weight	62002.7 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	A
atom_count	4533

GMTLRAAVFDLDGVLALPAVFGVLGRTEEALALPRGLLNDAFQKGGPEGATTRLMKGEITLSQWIPLMEENCRKCSETAKVCLPKNFSIKEIFDKAISARKINRPMLQAALMLRKKGFTTAILTNTWLDDRAERDGLAQLMCELKMHFDFLIESCQVGMVKPEPQIYKFLLDTLKASPSEVVFLDDIGANLKPARDLGMVTILVQDTDTALKELEKVTGIQLLNTPAPLPTSCNPSDMSHGYVTVKPRVRLHFVELGSGPAVCLCHGFPESWYSWRYQIPALAQAGYRVLAMDMKGYGESSAPPEIEEYCMEVLCKEMVTFLDKLGLSQAVFIGHDWGGMLVWYMALFYPERVRAVASLNTPFIPANPNMSPLESIKANPVFDYQLYFQEPGVAEAELEQNLSRTFKSLFRASDESVLSMHKVCEAGGLFVNSPEEPSLSRMVTEEEIQFYVQQFKKSGFRGPLNWYRNMERNWKWACKSLGRKILIPALMVTAEKDFVLVPQMSQHMEDWIPHLKRGHIEDCGHWTQMDKPTEVNQILIKWLDSDARN

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Spodoptera frugiperda

Entity 2 non-polymer

description	4-(4-BROMOPHENYL)PIPERIDIN-4-OL
formula_weight	256.1 kDa
src_method	syn
entity_count	1

Entity 3 non-polymer

description	7-(trifluoromethyl)-1~{H}-quinolin-4-one
formula_weight	213.2 kDa
src_method	syn
entity_count	1

Entity 4 water

description	water
formula_weight	18.0 kDa
src_method	nat
entity_count	189

▶

6. Citations (1)

▶

length_a	94.880 Å
length_b	94.880 Å
length_c	248.080 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	120.00 °
z_pdb	12

space_group	P 65 2 2
int_tables_number	179
crystal_system	—

resolution	1.950 Å
resolution_low	28.390 Å
r_factor	0.2027
r_work	0.2013
r_free	0.2309
