9r02

Room temperature fragment screening of soluble epoxide hydrolase by serial crystallography

Method: X-RAY DIFFRACTION D_max: 99.2 Å Quality: REASONABLE

SAXS Profile

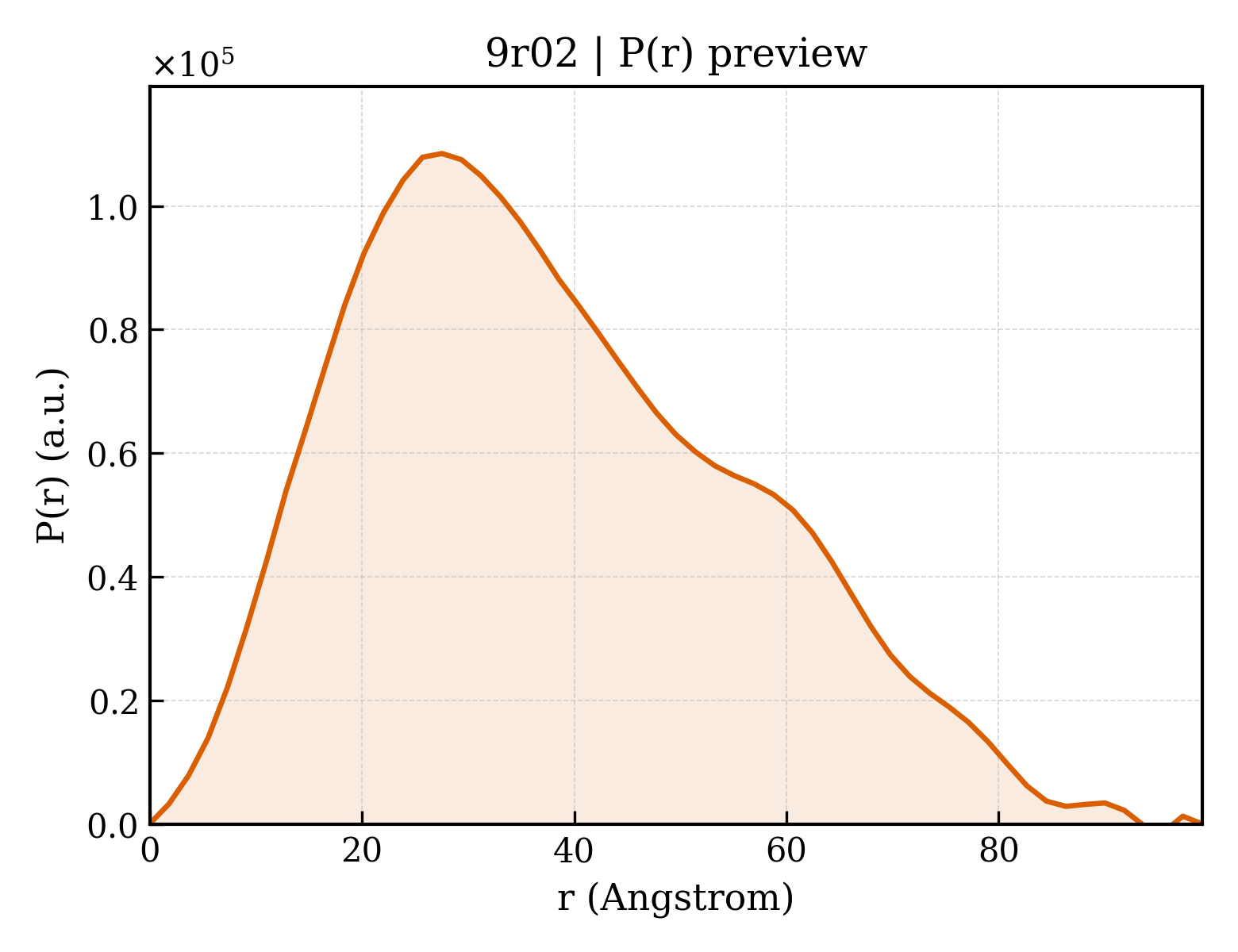

P(r) Distribution

▼

1. Structure Basics

entry_id	9r02
deposition_date	2025-04-24
last_revision	2026-05-06
title	Room temperature fragment screening of soluble epoxide hydrolase by serial crystallography
keywords	Inhibitor, fragment, SSX, serial crystallography, HYDROLASE; HYDROLASE
method	X-RAY DIFFRACTION

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	29.46 Å
rg_electron	28.88 Å
i0	59660000.00
molecular_weight	61506.0 kDa
excluded_volume	77397 Å³
envelope_volume	95687 Å³
shell_volume	28728 Å³
envelope_diameter	104.0 Å
shell_rg	34.66 Å
envelope_rg	28.83 Å
shape_rg	28.86 Å
total_rg	29.51 Å
total_atoms	4318
n_residues	546
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	99.2 Å
rg_real	29.62 Å
rg_real_error	1.09 Å
i0_real	5.9660e+07
i0_real_error	9.2990e+05
rg_reciprocal	29.55 Å
i0_reciprocal	59660000.0000
total_estimate	0.5961
solution_quality	REASONABLE a REASONABLE solution
n_peaks	3
r_peak_primary	27.6 Å
skewness	0.452
kurtosis	-0.475
angular_range	— – 0.2700 Å⁻¹
current_alpha	0.0000
highest_alpha	18920000.0000
n_real_points	55
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.742; Stabil: 0.991; Sysdev: 0.218; Positv: 1.000; Valcen: 0.892; Smooth: 0.000

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (3)

Entity 1 polymer

description	Bifunctional epoxide hydrolase 2
formula_weight	62002.7 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	A
atom_count	4529

GMTLRAAVFDLDGVLALPAVFGVLGRTEEALALPRGLLNDAFQKGGPEGATTRLMKGEITLSQWIPLMEENCRKCSETAKVCLPKNFSIKEIFDKAISARKINRPMLQAALMLRKKGFTTAILTNTWLDDRAERDGLAQLMCELKMHFDFLIESCQVGMVKPEPQIYKFLLDTLKASPSEVVFLDDIGANLKPARDLGMVTILVQDTDTALKELEKVTGIQLLNTPAPLPTSCNPSDMSHGYVTVKPRVRLHFVELGSGPAVCLCHGFPESWYSWRYQIPALAQAGYRVLAMDMKGYGESSAPPEIEEYCMEVLCKEMVTFLDKLGLSQAVFIGHDWGGMLVWYMALFYPERVRAVASLNTPFIPANPNMSPLESIKANPVFDYQLYFQEPGVAEAELEQNLSRTFKSLFRASDESVLSMHKVCEAGGLFVNSPEEPSLSRMVTEEEIQFYVQQFKKSGFRGPLNWYRNMERNWKWACKSLGRKILIPALMVTAEKDFVLVPQMSQHMEDWIPHLKRGHIEDCGHWTQMDKPTEVNQILIKWLDSDARN

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Spodoptera frugiperda

Entity 2 non-polymer

description	2-pyridin-3-yl-1~{H}-benzimidazole
formula_weight	195.2 kDa
src_method	syn
entity_count	1

Entity 3 water

description	water
formula_weight	18.0 kDa
src_method	nat
entity_count	179

▶

6. Citations (1)

▶

length_a	94.550 Å
length_b	94.550 Å
length_c	247.190 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	120.00 °
z_pdb	12

space_group	P 65 2 2
int_tables_number	179
crystal_system	—

resolution	2.020 Å
resolution_low	38.870 Å
r_factor	0.1961
r_work	0.1949
r_free	0.2169
