9r0z
De novo designed homodimeric NTF2-like protein
SAXS Profile

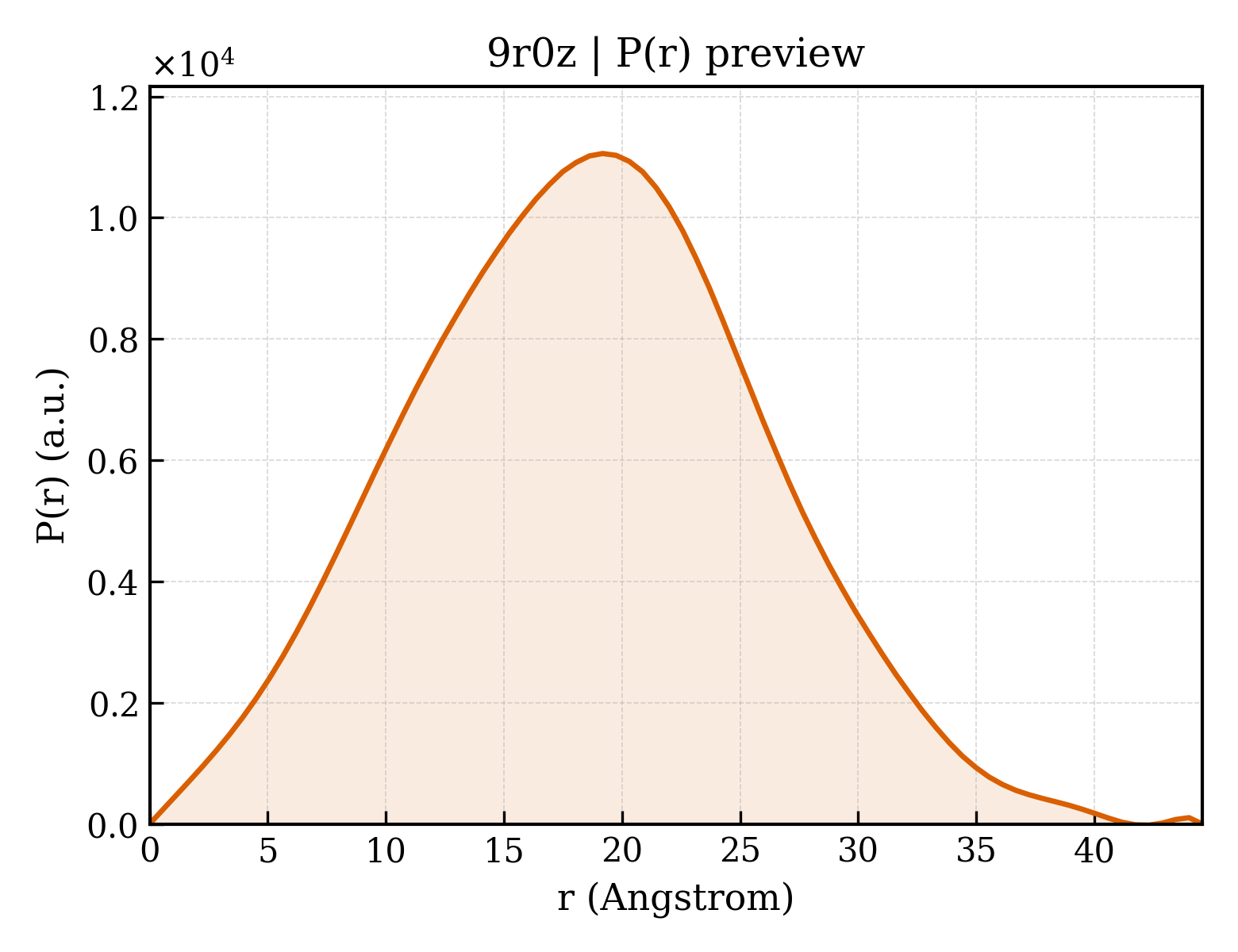

P(r) Distribution
1. Structure Basics
| entry_id | 9r0z |
| deposition_date | 2025-04-24 |
| last_revision | 2025-10-22 |
| title | De novo designed homodimeric NTF2-like protein |
| keywords | NTF2, DE NOVO PROTEIN; DE NOVO PROTEIN |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 14.22 Å |
| rg_electron | 12.64 Å |
| i0 | 2605610.00 |
| molecular_weight | 11515.0 kDa |
| excluded_volume | 14634 ų |
| envelope_volume | 16208 ų |
| shell_volume | 10891 ų |
| envelope_diameter | 43.4 Å |
| shell_rg | 18.39 Å |
| envelope_rg | 12.93 Å |
| shape_rg | 12.61 Å |
| total_rg | 14.11 Å |
| total_atoms | 807 |
| n_residues | 100 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 44.6 Å |
| rg_real | 14.11 Å |
| rg_real_error | 0.23 Å |
| i0_real | 2.6060e+06 |
| i0_real_error | 2.9270e+04 |
| rg_reciprocal | 14.12 Å |
| i0_reciprocal | 2606000.0000 |
| total_estimate | 0.6647 |
| solution_quality | REASONABLE a REASONABLE solution |
| n_peaks | 2 |
| r_peak_primary | 19.2 Å |
| skewness | 0.109 |
| kurtosis | -0.298 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 528800.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.848; Stabil: 1.000; Sysdev: 0.368; Positv: 1.000; Valcen: 0.990; Smooth: 0.000 |
