SAXSdb — 9r18

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Sortilin

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Other combination Monomer Protein × 1 其他Polymer 2 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 1–756	Mutation：V650M	2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 2 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 A1JCL (2~{S})-2-[[6-[3-[8-[2-[(2~{R})-4-[5-[1-[(2-cyanopyridin-3-yl)methyl]-2,2-dimethyl-3-oxidanylidene-pyrrolo[2,3-b]pyridin-6-yl]pyrimidin-2-yl]-2-methyl-piperazin-1-yl]-2-oxidanylidene-ethoxy]octylcarbamoyl]phenoxy]pyridin-3-yl]carbonylamino]-5,5-dimethyl-hexanoic acid × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 8；292.15 K；22 % PEG6000, 1.1 M NaCl, 8% glycerol, 50 mM HEPES pH 8.0	Resolution 2.80 Å R-free 0.253

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 9R18	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
3F6K Crystal structure of the Vps10p domain of human sortilin/NTS3 in complex with neurotensin Deposited 2008-11-06	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 78–756（679 aa） Fragment：UNP residues 78-756	Not recorded	PGE TRIETHYLENE GLYCOL × 1 GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.8；293 K；19% PEG 6000, 600 mM NaCl, 3% Glycerol, 100 mM HEPES, 93 mM Tris-HCl, pH 7.8, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 2.00 Å R-free 0.229
3G2U VHS Domain of human GGA1 complexed with Sotilin C-terminal Peptide Deposited 2009-02-01	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 819–831（13 aa）	Not recorded	IOD IODIDE ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6；292 K；15%(w/v) PEG 5000 mmE, 0.2M NH4I, 0.3M 1,6-hexanediol, 0.1M MES-NaOH, pH 6.0, VAPOR DIFFUSION, SITTING DROP, temperature 292K	Resolution 2.30 Å R-free 0.246
3G2U VHS Domain of human GGA1 complexed with Sotilin C-terminal Peptide Deposited 2009-02-01	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 819–831（13 aa）	Not recorded	IOD IODIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6；292 K；15%(w/v) PEG 5000 mmE, 0.2M NH4I, 0.3M 1,6-hexanediol, 0.1M MES-NaOH, pH 6.0, VAPOR DIFFUSION, SITTING DROP, temperature 292K	Resolution 2.30 Å R-free 0.246
3G2V VHS Domain of human GGA1 complexed with Sotilin C-terminal Phosphopeptide Deposited 2009-02-01	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 819–831（13 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	IOD IODIDE ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6；292 K；16%(w/v) PEG 5000 mmE, 0.2M NH4I, 0.3M 1,6-hexanediol, 0.1M MES-NaOH, pH 6.0, VAPOR DIFFUSION, SITTING DROP, temperature 292K	Resolution 2.10 Å R-free 0.244
3G2V VHS Domain of human GGA1 complexed with Sotilin C-terminal Phosphopeptide Deposited 2009-02-01	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 819–831（13 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	IOD IODIDE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6；292 K；16%(w/v) PEG 5000 mmE, 0.2M NH4I, 0.3M 1,6-hexanediol, 0.1M MES-NaOH, pH 6.0, VAPOR DIFFUSION, SITTING DROP, temperature 292K	Resolution 2.10 Å R-free 0.244
4MSL Crystal structure of the Vps10p domain of human sortilin/NTS3 in complex with AF40431 Deposited 2013-09-18	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Monomer；Protein × 1 PDB declaration: monomeric	Chain A 78–756（679 aa） Fragment：Vps10p domain (UNP residues 78-756)	Not recorded	PG4 TETRAETHYLENE GLYCOL × 1 2ET N-[(7-hydroxy-4-methyl-2-oxo-2H-chromen-8-yl)methyl]-L-leucine × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.3；292 K；0.1 M HEPES-Tris, 0.4 M sodium malonate, 26 % (w/v) PEG 3350, 8 % (v/v) glycerol, pH 7.3, VAPOR DIFFUSION, SITTING DROP, temperature 292K	Resolution 2.70 Å R-free 0.227
4N7E Crystal structure of the Vps10p domain of human sortilin/NTS3 in complex with AF38469 Deposited 2013-10-15	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Monomer；Protein × 1 PDB declaration: monomeric	Chain A 78–756（679 aa） Fragment：UNP residues 78-756	Mutation：V617M	PGE TRIETHYLENE GLYCOL × 1 2JQ 2-[(6-methylpyridin-2-yl)carbamoyl]-5-(trifluoromethyl)benzoic acid × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.3；292 K；0.1 M HEPES-Tris, 0.4 M sodium malonate, 27 % (w/v) PEG 3350, 4.5 % (v/v) glycerol, pH 7.3, VAPOR DIFFUSION, SITTING DROP, temperature 292K	Resolution 2.70 Å R-free 0.242
4PO7 Structure of the Sortilin:neurotensin complex at excess neurotensin concentration Deposited 2014-02-25	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 78–756（679 aa） Fragment：unp residues 78-756	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 PG4 TETRAETHYLENE GLYCOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.9；292 K；20% PEG 6k, 300 mM sodium malonate, 3% glycerol and 100 mM TrisHCl, pH 7.9, VAPOR DIFFUSION, SITTING DROP, temperature 292K	Resolution 2.66 Å R-free 0.212
5MRH Crystal structure of the Vps10p domain of human sortilin/NTS3 in complex with Triazolone 1 Deposited 2016-12-23	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Monomer；Protein × 1 PDB declaration: monomeric	Chain A 78–756（679 aa）	Not recorded	Q9Z 3-(3-methylbutyl)-4~{H}-1,2,3-triazol-5-one × 1 PGE TRIETHYLENE GLYCOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.3；292 K；0.1M HEPES-Tris pH=7.3 0.4 M Sodium malonate 22 % (w/V) PEG 3350 8 (V/V) glycerol	Resolution 2.50 Å R-free 0.233
5MRI Crystal structure of the Vps10p domain of human sortilin/NTS3 in complex with Triazolone 18 Deposited 2016-12-23	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Monomer；Protein × 1 PDB declaration: monomeric	Chain A 78–756（679 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 Q9Y ~{N}-methyl-3-(3-methylbutyl)-5-oxidanyl-1,2,3-triazole-4-carboxamide × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.3；292 K；0.1 M HEPES-Tris pH 7.3 0.4 M Sodium malonate 6 % (V/V) glycerol 26 % (w/V) PEG 3350	Resolution 2.00 Å R-free 0.219
6EHO Dimer of the Sortilin Vps10p domain at low pH Deposited 2017-09-14	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 34–756（723 aa）	Mutation：R43G , R44G	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；291 K；2.0 Ammonium sulphate	Resolution 3.50 Å R-free 0.272
6X3L Sortilin-Progranulin Interaction With Compound 2 Deposited 2020-05-21	Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–756（756 aa）	Not recorded	UMJ 1-benzyl-3-tert-butyl-1H-pyrazole-5-carboxylic acid × 1 GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；20-25% PEG3350, 0.4M Na Malonate, pH8, 0.1M Tris, 5% Glycerol	Resolution 2.70 Å R-free 0.269
6X48 Sortilin-Progranulin Interaction With Compound 17 Deposited 2020-05-22	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Monomer；Protein × 1 PDB declaration: monomeric	Chain A 86–748（663 aa）	Not recorded	UP4 N-(3,5-dichlorobenzene-1-carbonyl)-5,5-dimethyl-L-norleucine × 1 UNL UNKNOWN LIGAND × 1 GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；20-25% PEG3350, 0.4M Na Malonate, pH8, 0.1M Tris, 5% Glycerol	Resolution 2.90 Å R-free 0.252
6X4H Sortilin-Progranulin Interaction With Compound 24 Deposited 2020-05-22	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Monomer；Protein × 1 PDB declaration: monomeric	Chain A 86–748（663 aa）	Not recorded	UOY 4-methyl-N-(6-phenoxypyridine-3-carbonyl)-L-leucine × 1 GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；20-25% PEG3350, 0.4M Na Malonate, pH8, 0.1M Tris, 5% Glycerol	Resolution 2.90 Å R-free 0.253
8T8R Sortilin-PGRN peptide complex Deposited 2023-06-23	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 79–756（678 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；293 K；20.00 %w/ PEG 3350, 0.20 M Sodium citrate	Resolution 2.87 Å R-free 0.287
8T8S Sortilin-PGRN peptide complex Deposited 2023-06-23	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 79–756（678 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 CL CHLORIDE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 7；293 K；0.10 M Tris, 30.00 %w/v PEG 3000, 0.20 M NaCl	Resolution 2.99 Å R-free 0.275
8T8S Sortilin-PGRN peptide complex Deposited 2023-06-23	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Other combination Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 79–756（678 aa）	Not recorded	CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 7；293 K；0.10 M Tris, 30.00 %w/v PEG 3000, 0.20 M NaCl	Resolution 2.99 Å R-free 0.275
9I0N Cryo-EM structure of human sortilin ectodomain Deposited 2025-01-15	Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Monomer；Protein × 1 PDB declaration: monomeric	Chain A 34–756（723 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.10 Å
9I0O Cryo-EM structure of human sortilin ectodomain in complex with a thyroglobulin C-terminal peptide Deposited 2025-01-15	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 34–756（723 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.36 Å

16 other PDB entries and 19 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	SORT_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–756； UniProt 1–756

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9r18
Deposition date deposition_date	2025-04-25
Structure title title	Structure of Sortilin ECD in complex with TNFa-targeting SORTAC
Keywords keywords	Lysosome sorting receptor, Targeted protein degradation, SORtilin-based lysosome TArgeting Chimeras (SORTACs), PROTEIN BINDING; PROTEIN BINDING
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	28.83 Å
Radius of gyration Rg (electron density) rg_electron	27.73 Å
Forward intensity I(0) i0	94156600.00
Molecular weight molecular_weight	75627.0 kDa
Excluded volume excluded_volume	94315 Å³
Envelope volume envelope_volume	124160 Å³
Hydration-shell volume shell_volume	36477 Å³
Envelope diameter envelope_diameter	101.4 Å
Shell Rg shell_rg	35.93 Å
Envelope Rg envelope_rg	27.54 Å
Shape Rg shape_rg	27.73 Å
Total Rg total_rg	28.56 Å
Total atoms total_atoms	10447
Residues n_residues	658
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

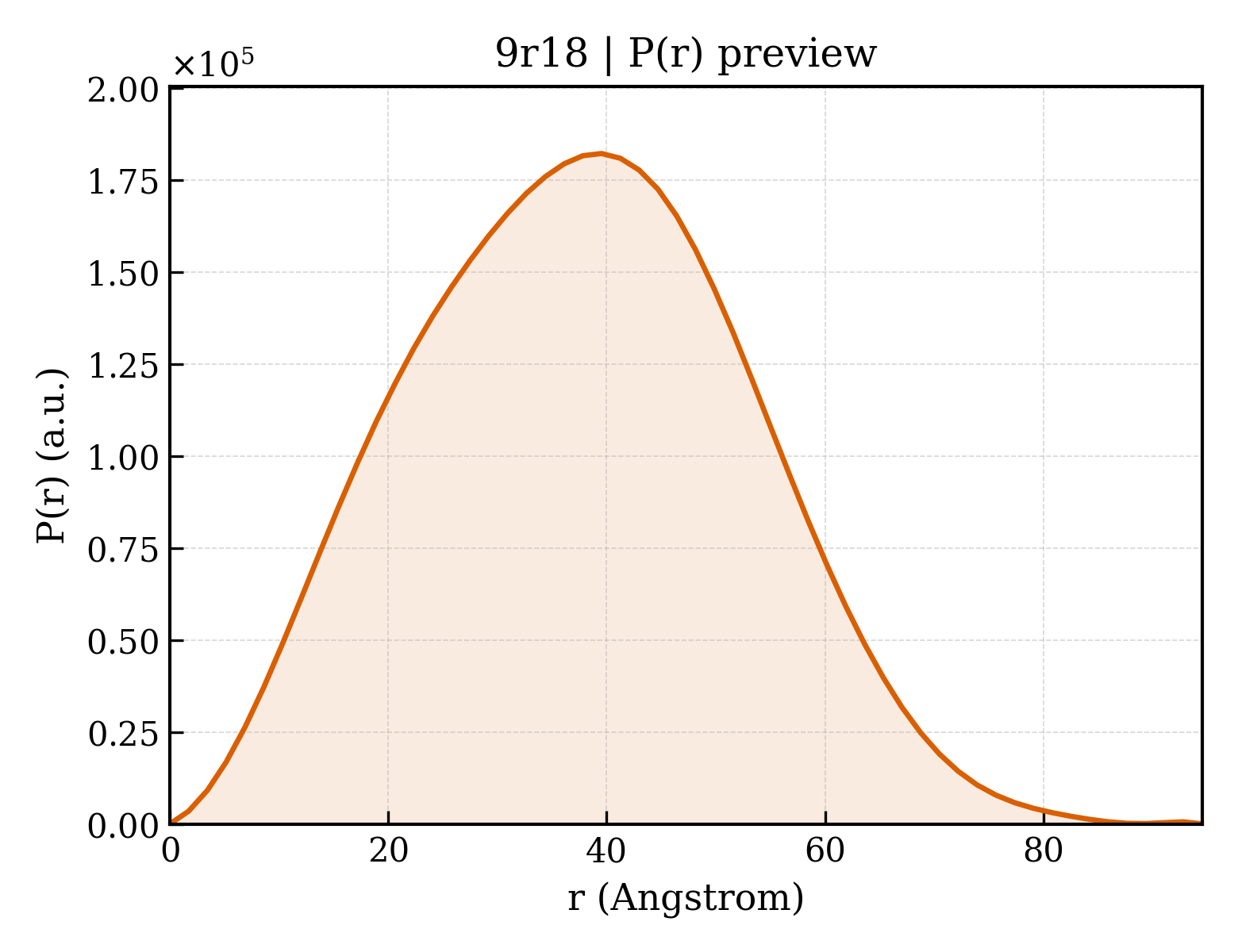

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	94.5 Å
Rg (real space) rg_real	28.68 Å
Rg uncertainty (real space) rg_real_error	0.57 Å
I(0) (real space) i0_real	9.4160e+07
I(0) uncertainty (real space) i0_real_error	1.2510e+06
Rg (reciprocal space) rg_reciprocal	28.75 Å
I(0) (reciprocal space) i0_reciprocal	94160000.0000
Solution quality estimate total_estimate	0.6935
Solution quality rating solution_quality	REASONABLE a REASONABLE solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	39.5 Å
Skewness Skewness skewness	0.114
Kurtosis Kurtosis kurtosis	-0.452
Angular range angular_range	— – 0.2750 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	17580000.0000
Real-space data points n_real_points	56
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.852; Stabil: 1.000; Sysdev: 0.156; Positv: 1.000; Valcen: 1.000; Smooth: 0.987

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	Sortilin
Molecular weight formula_weight	84991.2 kDa
Mutation mutation	V650M
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	10547

MERPWGAADGLSRWPHGLGLLLLLQLLPPSTLSQDRLDAPPPPAAPLPRWSGPIGVSWGLRAAAAGGAFPRGGRWRRSAPGEDEECGRVRDFVAKLANNTHQHVFDDLRGSVSLSWVGDSTGVILVLTTFHVPLVIMTFGQSKLYRSEDYGKNFKDITDLINNTFIRTEFGMAIGPENSGKVVLTAEVSGGSRGGRIFRSSDFAKNFVQTDLPFHPLTQMMYSPQNSDYLLALSTENGLWVSKNFGGKWEEIHKAVCLAKWGSDNTIFFTTYANGSCKADLGALELWRTSDLGKSFKTIGVKIYSFGLGGRFLFASVMADKDTTRRIHVSTDQGDTWSMAQLPSVGQEQFYSILAANDDMVFMHVDEPGDTGFGTIFTSDDRGIVYSKSLDRHLYTTTGGETDFTNVTSLRGVYITSVLSEDNSIQTMITFDQGGRWTHLRKPENSECDATAKNKNECSLHIHASYSISQKLNVPMAPLSEPNAVGIVIAHGSVGDAISVMVPDVYISDDGGYSWTKMLEGPHYYTILDSGGIIVAIEHSSRPINVIKFSTDEGQCWQTYTFTRDPIYFTGLASEPGARSMNISIWGFTESFLTSQWVSYTIDFKDILERNCEEKDYTIWLAHSTDPEDYEDGCILGYKEQFLRLRKSSMCQNGRDYVVTKQPSICLCSLEDFLCDFGYYRPENDSKCVEQPELKGHDLEFCLYGREEHLTTNGYRKIPGDKCQGGVNPVREVKDLKKKCTSNFLSPEKQNSKSNSHHHHHH

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Cricetulus griseus

Entity 2 Entity 2 branched

Description description	2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	424.4 kDa
Source method src_method	man
Copy count entity_count	2

Entity 3 Entity 3 non-polymer

Description description	2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	221.2 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 non-polymer

Description description	;(2~{S})-2-[[6-[3-[8-[2-[(2~{R})-4-[5-[1-[(2-cyanopyridin-3-yl)methyl]-2,2-dimethyl-3-oxidanylidene-pyrrolo[2,3-b]pyridin-6-yl]pyrimidin-2-yl]-2-methyl-piperazin-1-yl]-2-oxidanylidene-ethoxy]octylcarbamoyl]phenoxy]pyridin-3-yl]carbonylamino]-5,5-dimethyl-hexanoic acid ;
Molecular weight formula_weight	1022.2 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	100

▶

8. Citations (1)

▶

Unit-cell length a length_a	161.771 Å
Unit-cell length b length_b	75.617 Å
Unit-cell length c length_c	110.197 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	127.39 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	C 1 2 1
Space-group number int_tables_number	5
Crystal system crystal_system	—

Resolution resolution	2.802 Å
Low-resolution limit resolution_low	79.875 Å
R factor r_factor	—
R_work r_work	0.2119
R_free r_free	0.2532
