9r2k
De novo designed N30 protein fold
SAXS Profile

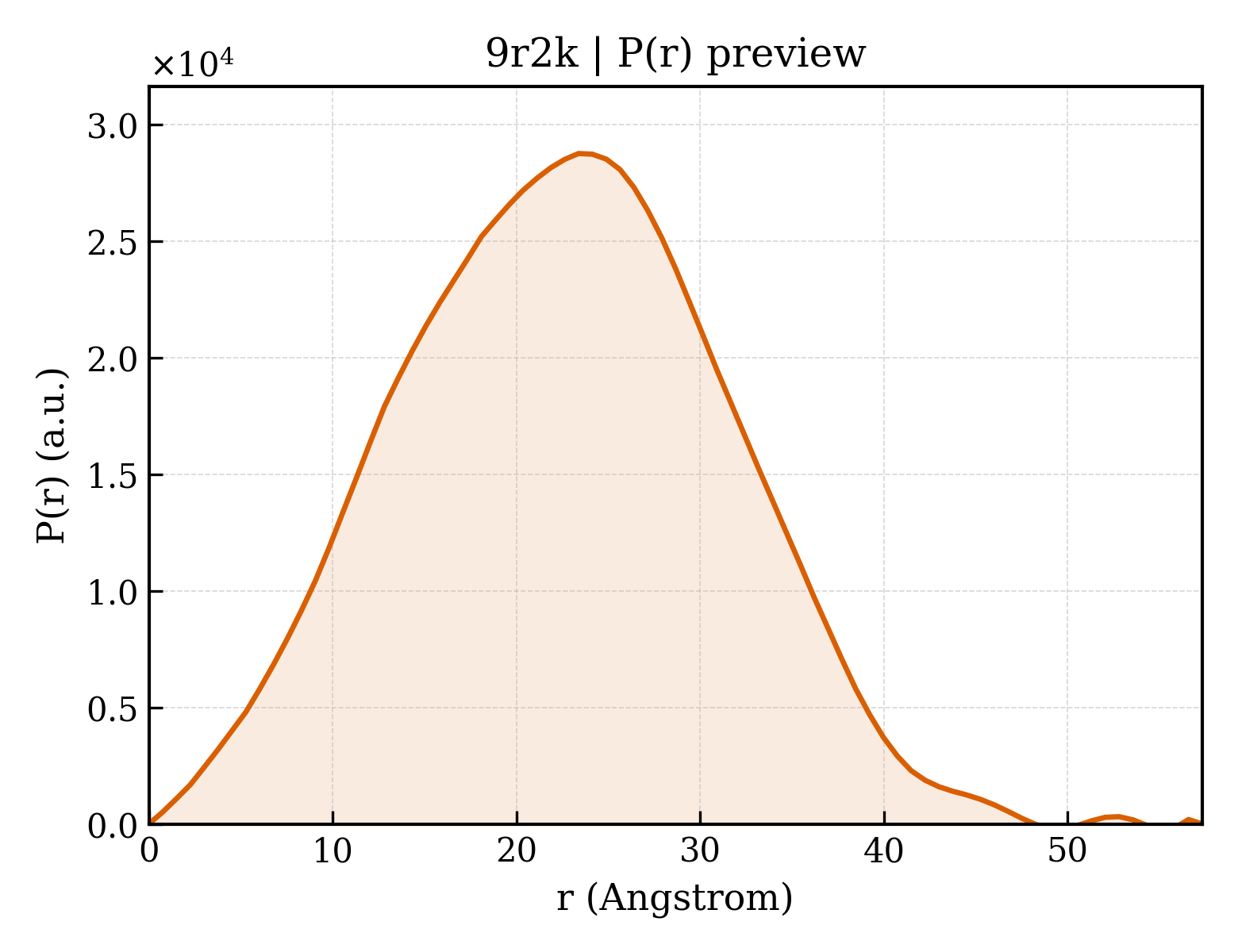

P(r) Distribution
1. Structure Basics
| entry_id | 9r2k |
| deposition_date | 2025-04-30 |
| title | De novo designed N30 protein fold |
| keywords | dark fold, de novo, unnatural, DE NOVO PROTEIN; DE NOVO PROTEIN |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 17.19 Å |
| rg_electron | 15.66 Å |
| i0 | 8273170.00 |
| molecular_weight | 21364.0 kDa |
| excluded_volume | 26907 ų |
| envelope_volume | 30626 ų |
| shell_volume | 16095 ų |
| envelope_diameter | 53.7 Å |
| shell_rg | 22.02 Å |
| envelope_rg | 15.97 Å |
| shape_rg | 15.62 Å |
| total_rg | 16.92 Å |
| total_atoms | 3013 |
| n_residues | 177 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 57.3 Å |
| rg_real | 17.04 Å |
| rg_real_error | 0.33 Å |
| i0_real | 8.2730e+06 |
| i0_real_error | 8.6140e+04 |
| rg_reciprocal | 17.06 Å |
| i0_reciprocal | 8273000.0000 |
| total_estimate | 0.7825 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 3 |
| r_peak_primary | 23.4 Å |
| skewness | 0.043 |
| kurtosis | -0.418 |
| angular_range | — – 0.4650 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 2319000.0000 |
| n_real_points | 77 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.728; Stabil: 0.996; Sysdev: 1.000; Positv: 1.000; Valcen: 0.996; Smooth: 0.000 |
