9r3i

Structure of liver pyruvate kinase in complex with fluorescent probe 4c

Method: X-RAY DIFFRACTION D_max: 118.0 Å Quality: GOOD

SAXS Profile

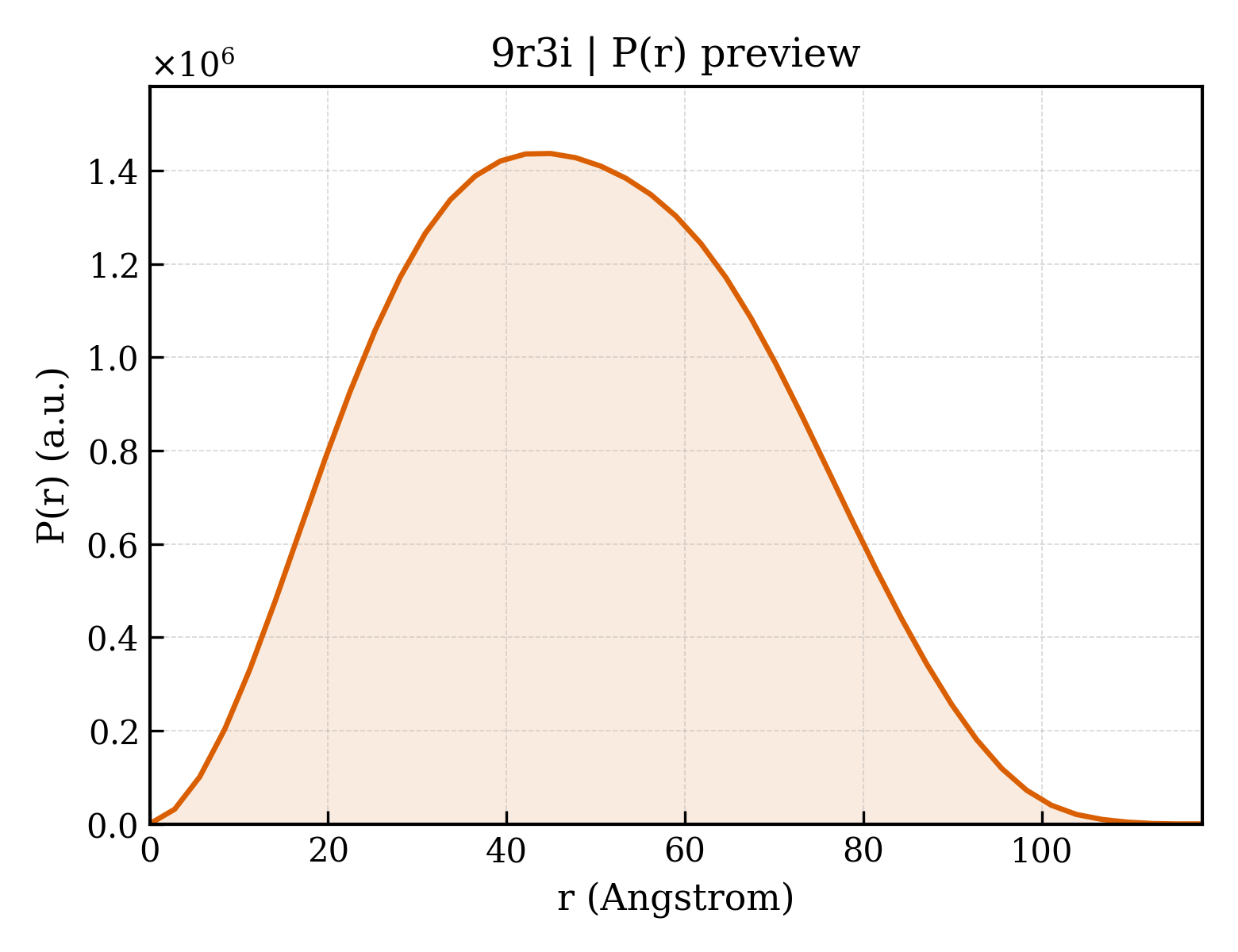

P(r) Distribution

▼

1. Structure Basics

entry_id	9r3i
deposition_date	2025-05-05
last_revision	2025-08-13
title	Structure of liver pyruvate kinase in complex with fluorescent probe 4c
keywords	Pyruvate kinase, fluorescence, allosteric site, TRANSFERASE; TRANSFERASE
method	X-RAY DIFFRACTION

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	37.47 Å
rg_electron	36.92 Å
i0	1047920000.00
molecular_weight	172390.0 kDa
excluded_volume	164400 Å³
envelope_volume	281050 Å³
shell_volume	60839 Å³
envelope_diameter	120.1 Å
shell_rg	45.01 Å
envelope_rg	36.81 Å
shape_rg	36.90 Å
total_rg	37.27 Å
total_atoms	13054
n_residues	1696
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	118.0 Å
rg_real	37.31 Å
rg_real_error	0.75 Å
i0_real	1.0480e+09
i0_real_error	1.7750e+07
rg_reciprocal	37.42 Å
i0_reciprocal	1048000000.0000
total_estimate	0.8325
solution_quality	GOOD a GOOD solution
n_peaks	1
r_peak_primary	45.0 Å
skewness	0.155
kurtosis	-0.639
angular_range	— – 0.2100 Å⁻¹
current_alpha	0.0000
highest_alpha	205100000.0000
n_real_points	43
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.941; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.995; Smooth: 0.000

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (4)

Entity 1 polymer

description	Isoform L-type of Pyruvate kinase PKLR
formula_weight	48285.4 kDa
ec_number	2.7.1.40
src_method	man
entity_count	4

Polymer

type	polypeptide(L)
strand_id	A,B,C,D
atom_count	13329

GSMEGPAGYLRRADVAQLTQELGTAFFQQQQLPAAMADTFLEHLCLLDIDSEPVAARSTSIIATIGPASRSVERLKEMIKAGMNIARLNFSHGSHEYHAESIANVREAVESFAGSPLSYRPVAIALDTKGPGSGPGLSEQDVRDLRFGVEHGVDIVFASFVRKASDVAAVRAALGPEGHGIKIISKIENHEGVKRFDEILEVSDGIMVARGDLGIEIPAEKVFLAQKMMIGRCNLAGKPVVCATQMLESMITKPRPTRAETSDVANAVLDGADCIMLSGETAKGNFPVEAVKMQHAIAREAEAAVYHRQLFEELRRAAPLSRDPTEVTAIGAVEAAFKCCAAAIIVLTTTGRSAQLLSRYRPRAAVIAVTRSAQAARQVHLCRGVFPLLYREPPEAIWADDVDRRVQFGIESGKLRGFLRVGDLVIVVTGWRPGSGYTNIMRVLSIS

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Escherichia coli

Entity 2 non-polymer

description	1,6-di-O-phosphono-beta-D-fructofuranose
formula_weight	340.1 kDa
src_method	syn
entity_count	4

Entity 3 non-polymer

description	4-[4-[[7-(dimethylamino)-2,1,3-benzoxadiazol-4-yl]sulfonyl]piperazin-1-yl]sulfonyl-5-pyridin-3-yl-benzene-1,2-diol
formula_weight	560.6 kDa
src_method	syn
entity_count	2

Entity 4 water

description	water
formula_weight	18.0 kDa
src_method	nat
entity_count	239

▶

6. Citations (1)

▶

length_a	190.121 Å
length_b	113.026 Å
length_c	140.304 Å
angle_alpha	90.00 °
angle_beta	132.05 °
angle_gamma	90.00 °
z_pdb	16

space_group	C 1 2 1
int_tables_number	5
crystal_system	—

resolution	2.579 Å
resolution_low	28.320 Å
r_factor	0.2434
r_work	0.2411
r_free	0.2914
