9r7w
;5-Helix Tile - Twist Corrected (5HT-TC) with 2'-Fluoro-modified pyrimidines (FY RNA) ;
SAXS Profile

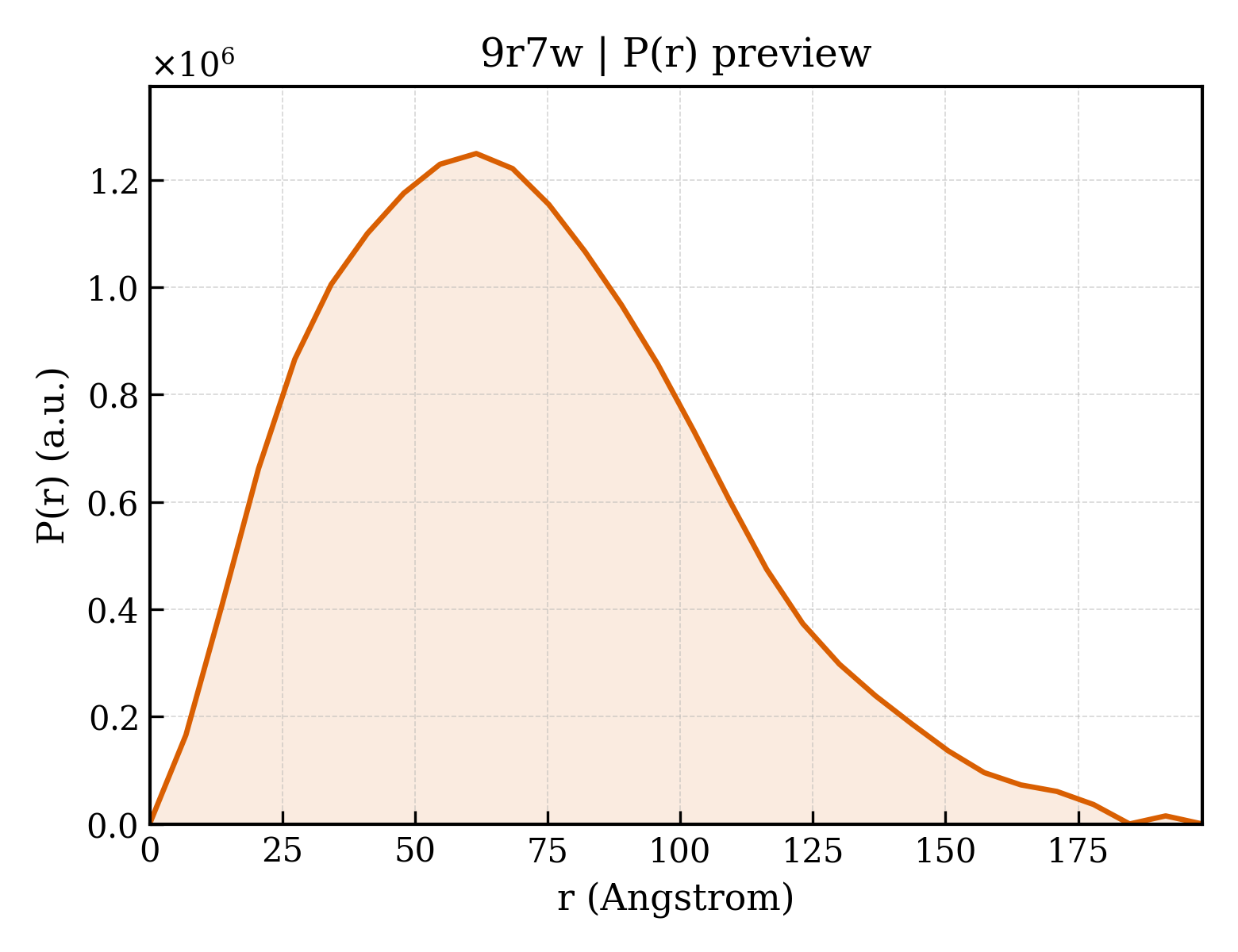

P(r) Distribution
1. Structure Basics
| entry_id | 9r7w |
| deposition_date | 2025-05-15 |
| title | ;5-Helix Tile - Twist Corrected (5HT-TC) with 2'-Fluoro-modified pyrimidines (FY RNA) ; |
| keywords | ;origami, modified nucleic acids, XNA, RNA, crossover, tetra-loop, kissing-loop, 2'fluoro ;; RNA |
| method | ELECTRON MICROSCOPY |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 55.09 Å |
| rg_electron | 55.62 Å |
| i0 | 1413460000.00 |
| molecular_weight | 178870.0 kDa |
| excluded_volume | 166220 ų |
| envelope_volume | 352370 ų |
| shell_volume | 57117 ų |
| envelope_diameter | 208.7 Å |
| shell_rg | 52.40 Å |
| envelope_rg | 54.02 Å |
| shape_rg | 55.57 Å |
| total_rg | 55.63 Å |
| total_atoms | 11752 |
| n_residues | 278 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 198.4 Å |
| rg_real | 55.49 Å |
| rg_real_error | 3.19 Å |
| i0_real | 1.4130e+09 |
| i0_real_error | 3.4010e+07 |
| rg_reciprocal | 54.75 Å |
| i0_reciprocal | 1412000000.0000 |
| total_estimate | 0.8410 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 61.6 Å |
| skewness | 0.513 |
| kurtosis | -0.109 |
| angular_range | — – 0.1450 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 27680000.0000 |
| n_real_points | 30 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.795; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.919; Smooth: 0.628 |
