9r89
CTE Type II tau filament from the brain of a football player
SAXS Profile
P(r) Distribution
1. Structure Basics
| entry_id | 9r89 |
| deposition_date | 2025-05-16 |
| title | CTE Type II tau filament from the brain of a football player |
| keywords | tau, football player, CTE type II, filament, PROTEIN FIBRIL; PROTEIN FIBRIL |
| method | ELECTRON MICROSCOPY |
Download Data

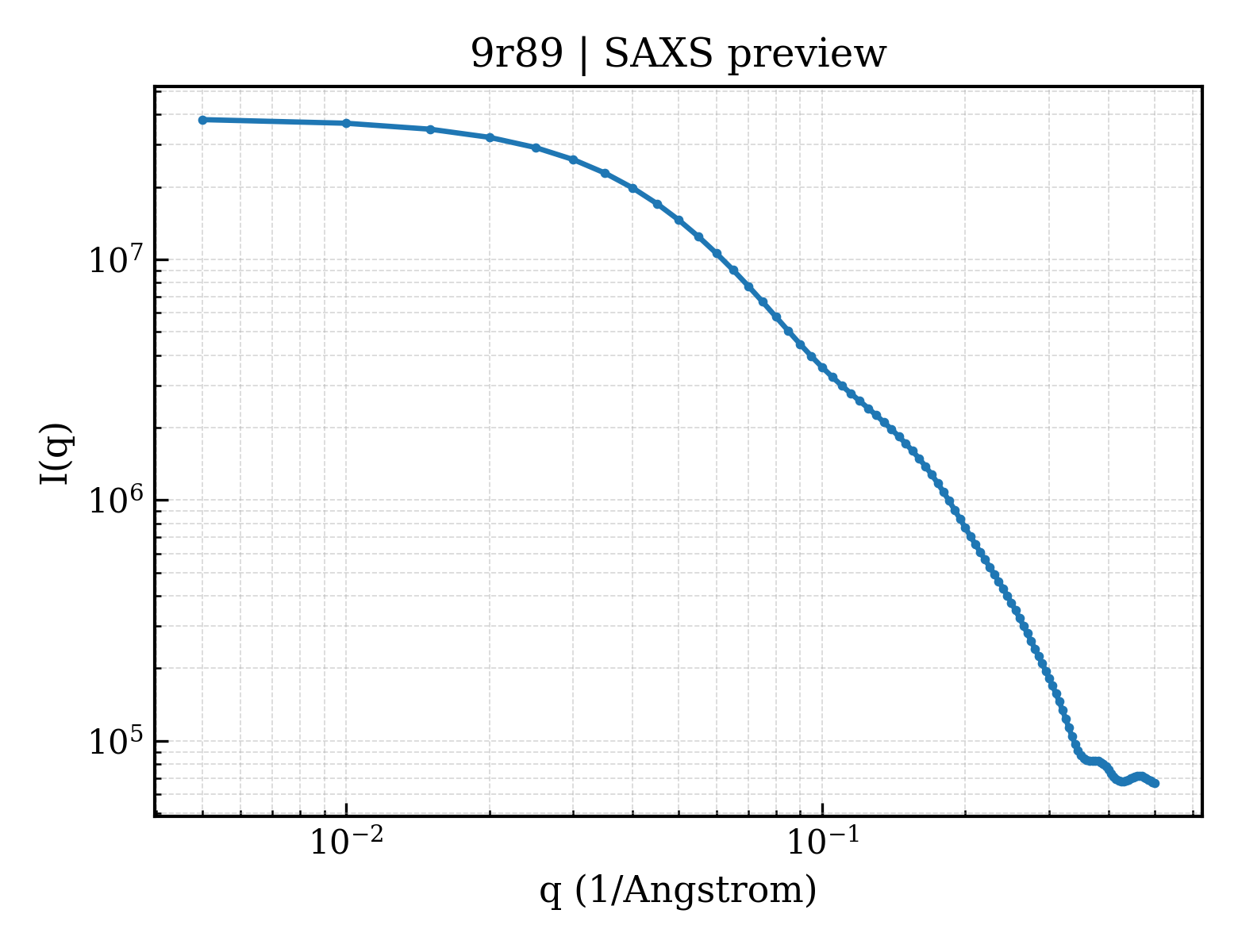

2. SAXS Parameters (CRYSOL)
| rg_guinier | 36.53 Å |
| rg_electron | 38.94 Å |
| i0 | 38516500.00 |
| molecular_weight | 48939.0 kDa |
| excluded_volume | 61587 ų |
| envelope_volume | 88252 ų |
| shell_volume | 23092 ų |
| envelope_diameter | 148.3 Å |
| shell_rg | 35.50 Å |
| envelope_rg | 39.19 Å |
| shape_rg | 38.92 Å |
| total_rg | 38.74 Å |
| total_atoms | 3444 |
| n_residues | 450 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |

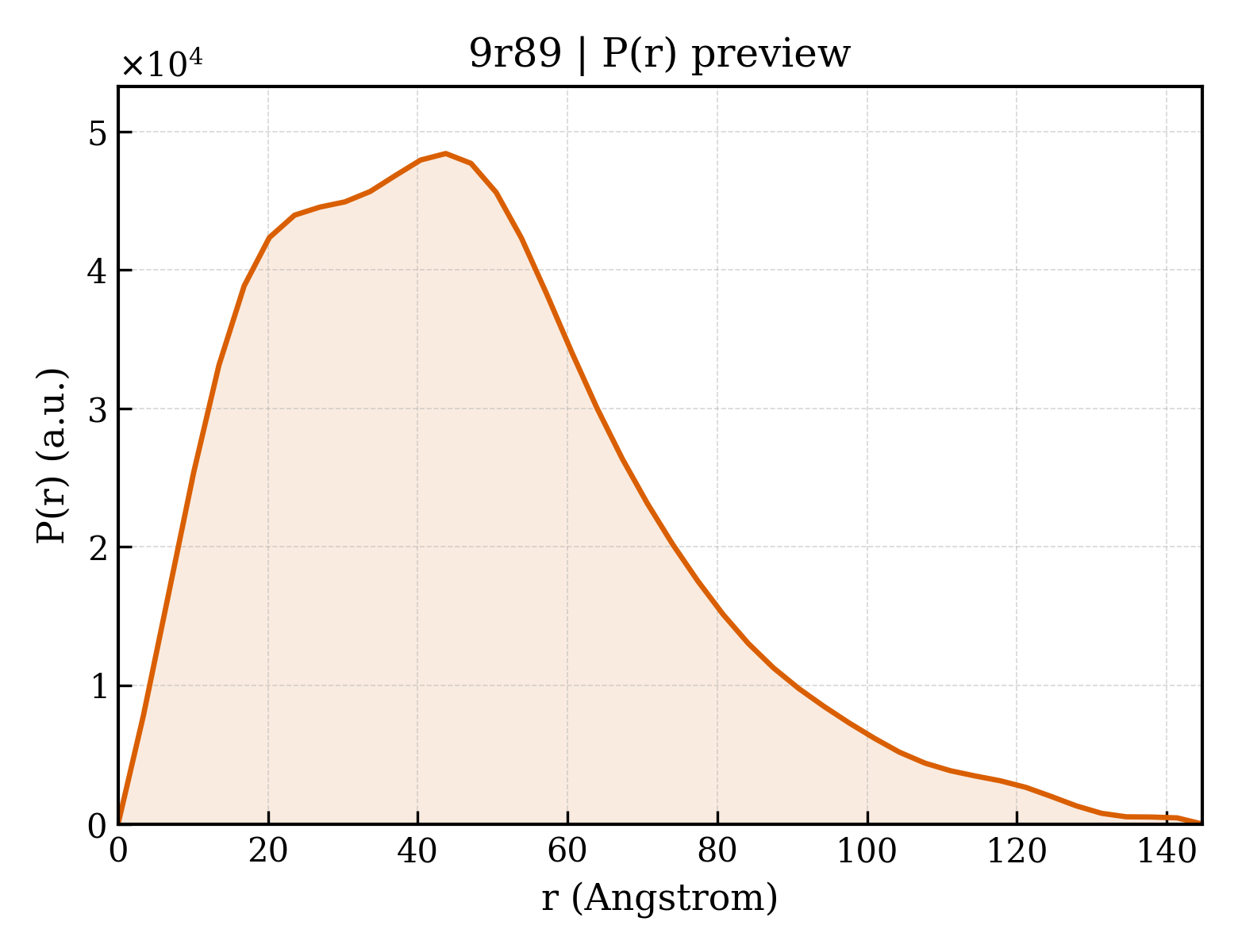

3. P(r) Analysis (GNOM)
| dmax | 144.7 Å |
| rg_real | 37.28 Å |
| rg_real_error | 2.14 Å |
| i0_real | 3.8520e+07 |
| i0_real_error | 7.6210e+05 |
| rg_reciprocal | 36.81 Å |
| i0_reciprocal | 38500000.0000 |
| total_estimate | 0.7383 |
| solution_quality | REASONABLE a REASONABLE solution |
| n_peaks | 1 |
| r_peak_primary | 43.8 Å |
| skewness | 0.717 |
| kurtosis | 0.297 |
| angular_range | — – 0.2150 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 1345000.0000 |
| n_real_points | 44 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.478; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.246; Smooth: 0.915 |
