9r8d
SF tau filament from the brain of a football player

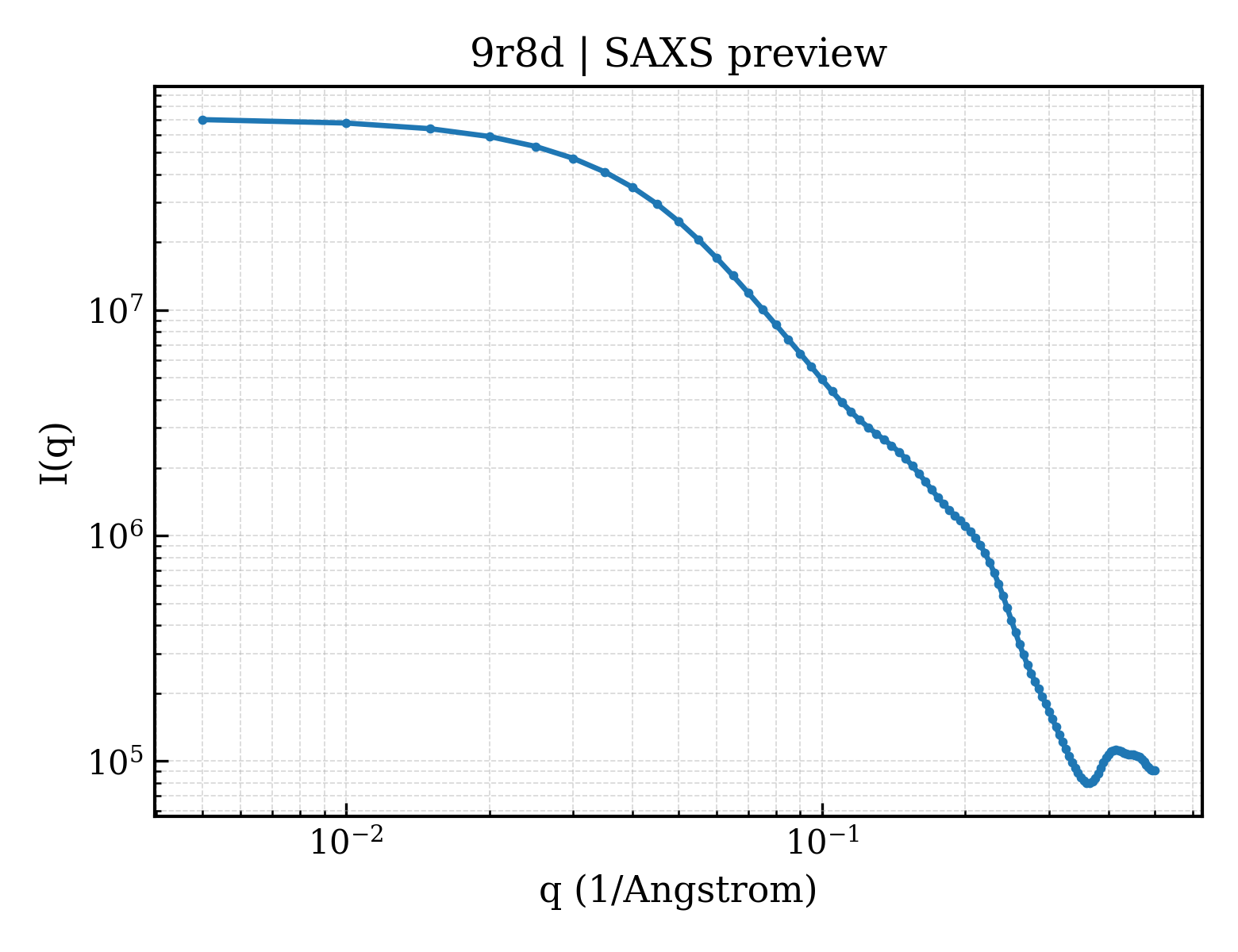

SAXS Profile

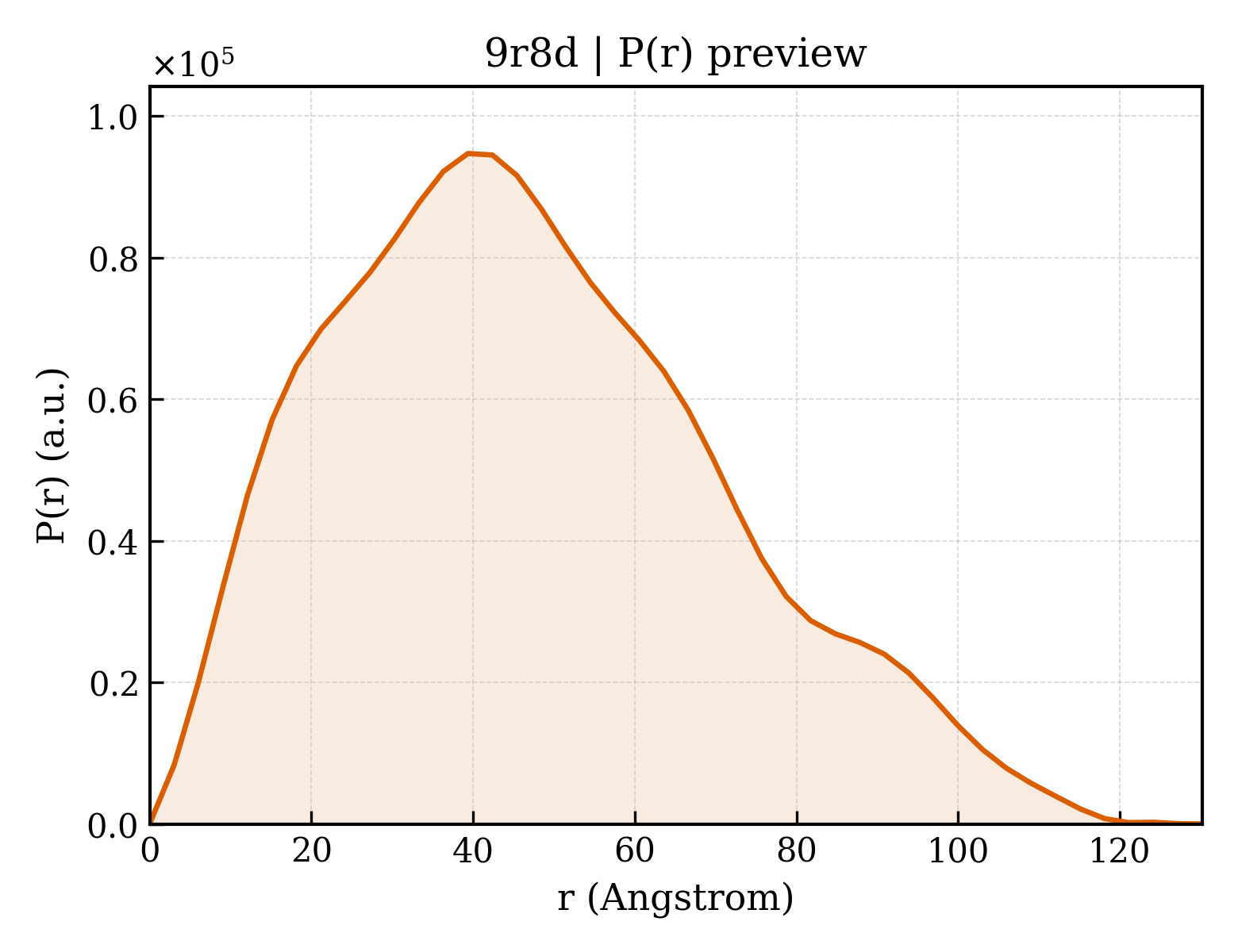

P(r) Distribution
1. Structure Basics
| entry_id | 9r8d |
| deposition_date | 2025-05-16 |
| title | SF tau filament from the brain of a football player |
| keywords | tau, football player, SF, filament, PROTEIN FIBRIL; PROTEIN FIBRIL |
| method | ELECTRON MICROSCOPY |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 36.97 Å |
| rg_electron | 37.18 Å |
| i0 | 70737100.00 |
| molecular_weight | 66733.0 kDa |
| excluded_volume | 83739 ų |
| envelope_volume | 118330 ų |
| shell_volume | 29250 ų |
| envelope_diameter | 128.5 Å |
| shell_rg | 38.48 Å |
| envelope_rg | 37.18 Å |
| shape_rg | 37.20 Å |
| total_rg | 37.23 Å |
| total_atoms | 4696 |
| n_residues | 616 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 130.2 Å |
| rg_real | 37.30 Å |
| rg_real_error | 1.65 Å |
| i0_real | 7.0740e+07 |
| i0_real_error | 1.3070e+06 |
| rg_reciprocal | 37.10 Å |
| i0_reciprocal | 70720000.0000 |
| total_estimate | 0.8452 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 39.4 Å |
| skewness | 0.450 |
| kurtosis | -0.357 |
| angular_range | — – 0.2150 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 2250000.0000 |
| n_real_points | 44 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.795; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.719; Smooth: 0.881 |
