9ral

E-selectin complexed with glycomimetic ligand MZ2139

Method: X-RAY DIFFRACTION Dmax: 144.0 Å Quality: REASONABLE

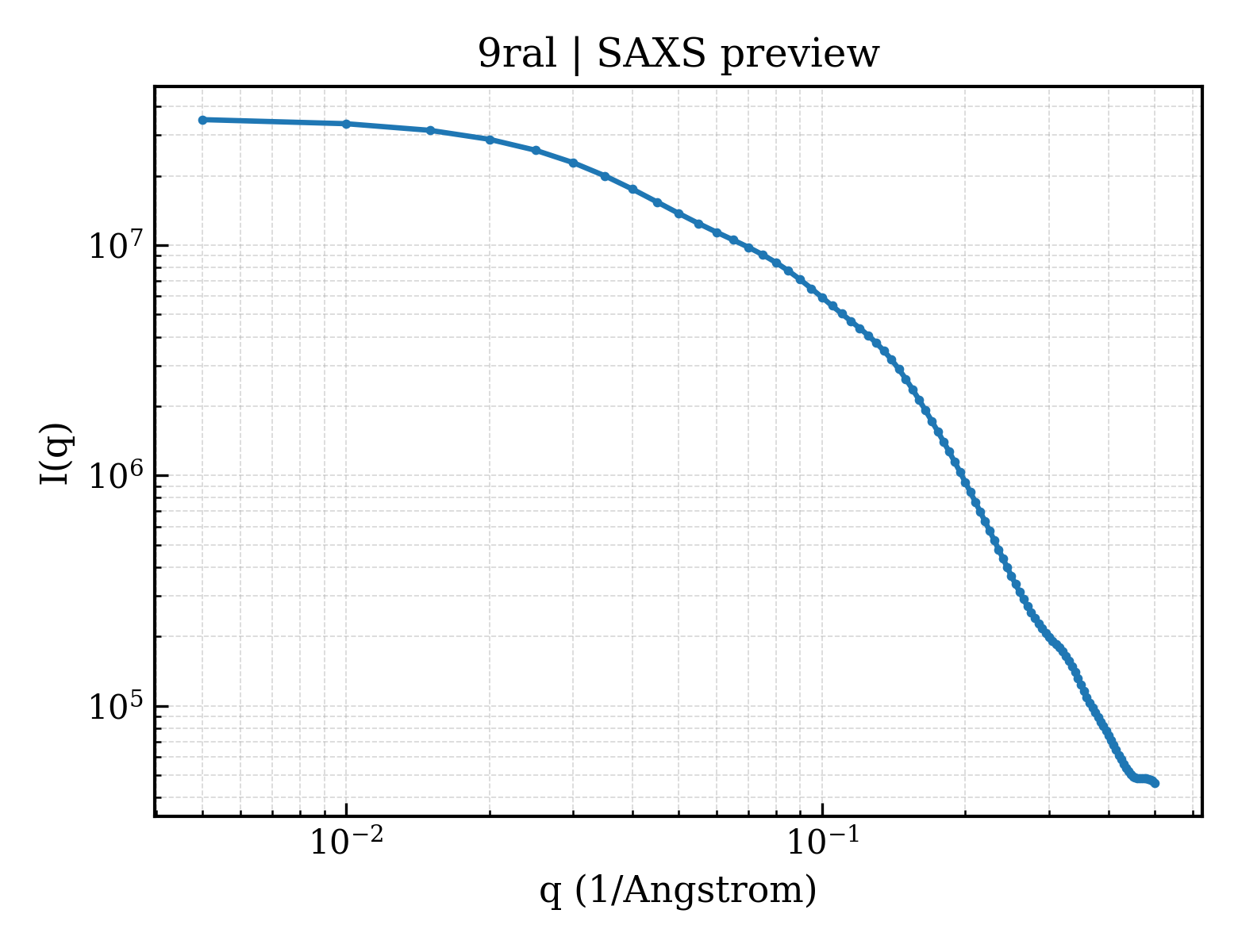

SAXS Profile

SAXS profile for 9ral

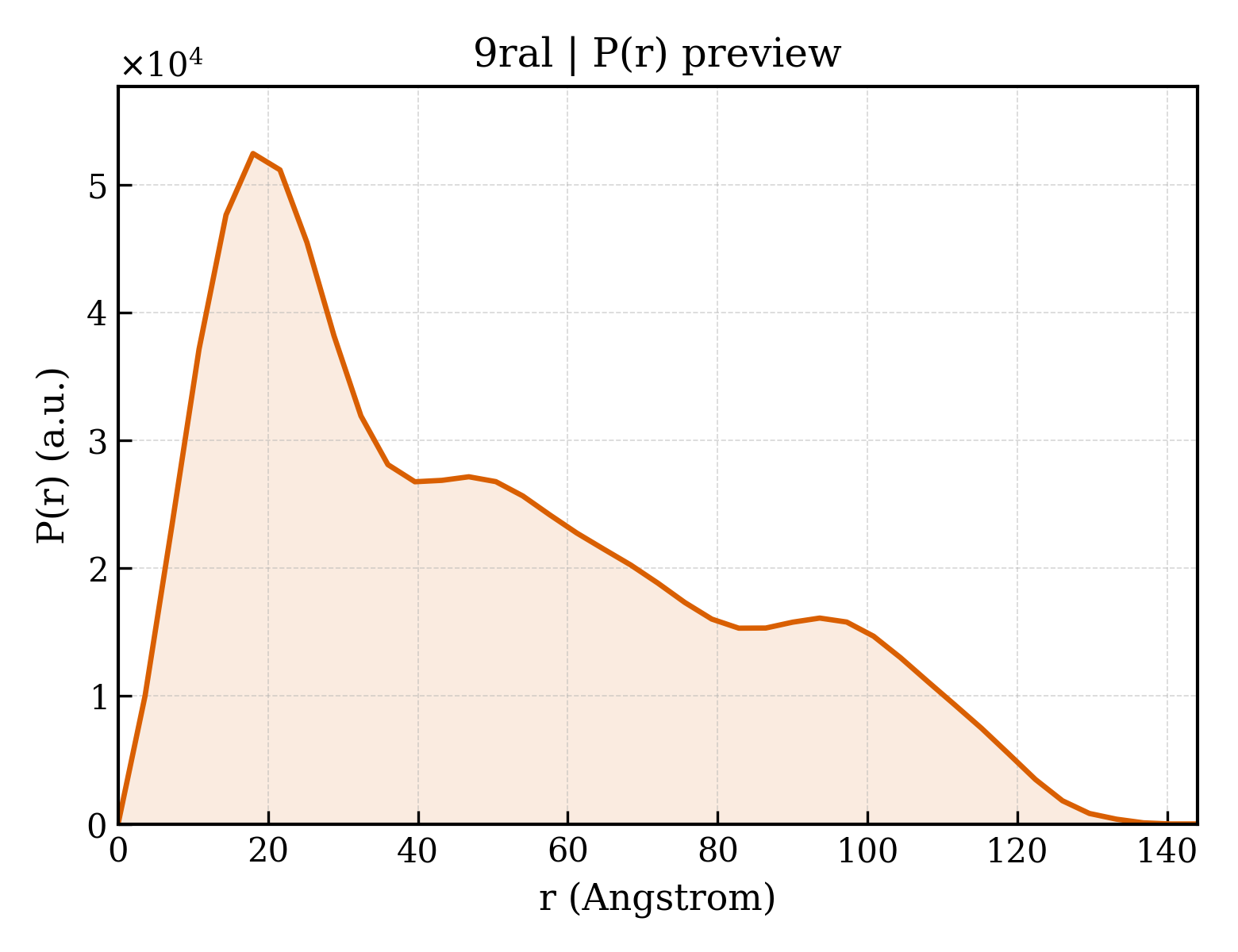

P(r) Distribution

P(r) distribution for 9ral

1. Structure Basics

entry_id9ral
deposition_date2025-05-21
last_revision2026-06-03
titleE-selectin complexed with glycomimetic ligand MZ2139
keywordsselectin, glycomimetic, CELL ADHESION; CELL ADHESION
methodX-RAY DIFFRACTION

Download Data

2. SAXS Parameters (CRYSOL)

rg_guinier39.15
rg_electron40.94
i035537100.00
molecular_weight30913.0 kDa
excluded_volume29466 ų
envelope_volume60179 ų
shell_volume15538 ų
envelope_diameter142.9
shell_rg35.36
envelope_rg40.92
shape_rg40.95
total_rg40.60
total_atoms2302
n_residues278
n_harmonics20
q_range— – 0.5000 −1
n_points101
shell_typedirectional
solvent_density0.3340 e/ų
contrast_shell0.0300 e/ų
crysol_version4.1.3

3. P(r) Analysis (GNOM)

dmax144.0
rg_real40.55
rg_real_error2.63
i0_real3.5540e+07
i0_real_error7.0800e+05
rg_reciprocal39.70
i0_reciprocal35510000.0000
total_estimate0.5983
solution_quality REASONABLE a REASONABLE solution
n_peaks3
r_peak_primary18.0
skewness0.599
kurtosis-0.714
angular_range— – 0.2000 −1
current_alpha0.0000
highest_alpha552800.0000
n_real_points41
gnom_version4.1.3
quality_criteria AN1: 0.000; Oscil: 0.014; Stabil: 0.998; Sysdev: 1.000; Positv: 1.000; Valcen: 0.002; Smooth: 0.736
