9ran

Structural characterization of a galactose-binding site in human RNase2

Method: X-RAY DIFFRACTION D_max: 52.4 Å Quality: EXCELLENT

SAXS Profile

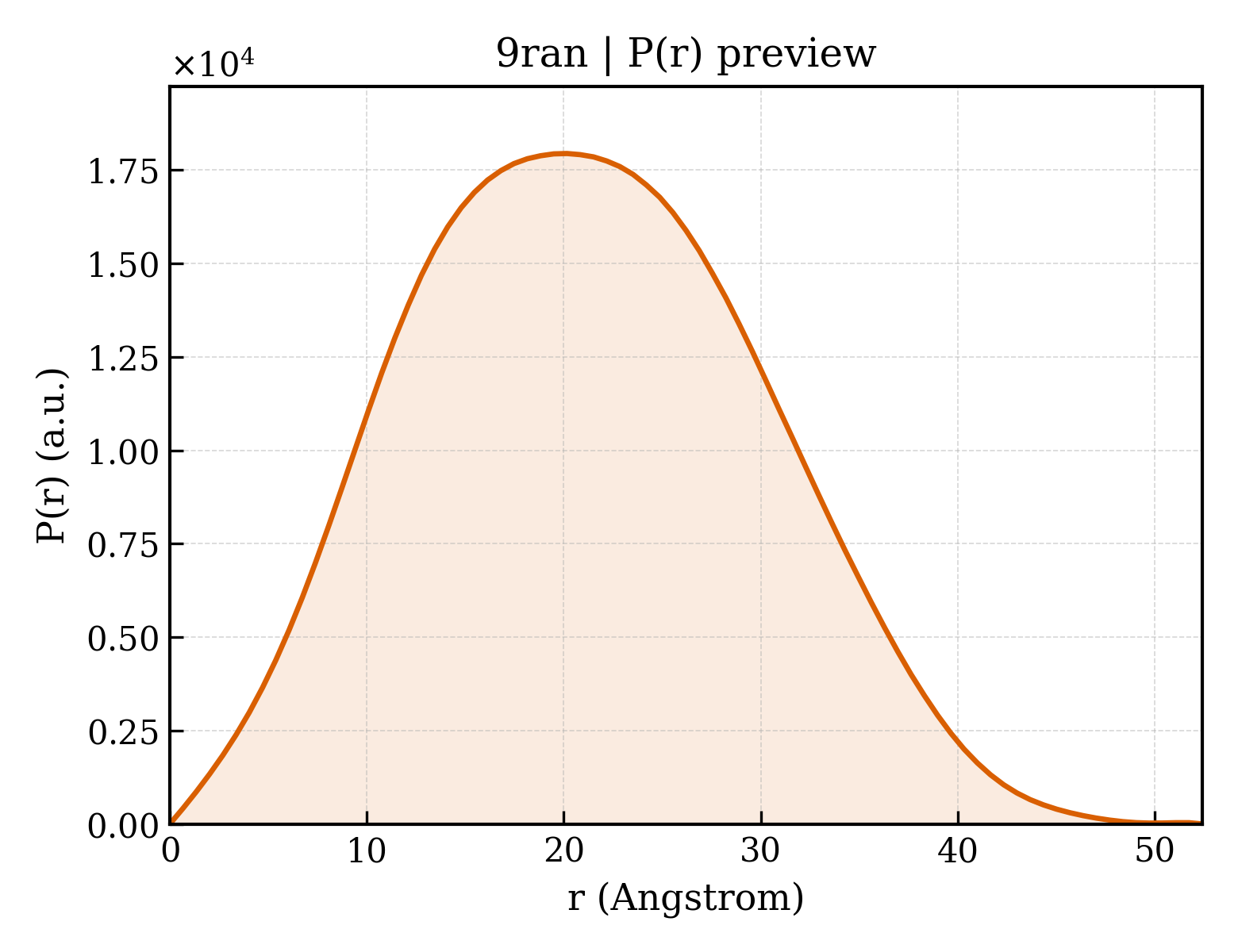

P(r) Distribution

▼

1. Structure Basics

entry_id	9ran
deposition_date	2025-05-21
last_revision	2026-04-22
title	Structural characterization of a galactose-binding site in human RNase2
keywords	Monosaccharide, RNase2, Immune system, N-linked glycosylation, PROTEIN BINDING; PROTEIN BINDING
method	X-RAY DIFFRACTION

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	16.25 Å
rg_electron	15.14 Å
i0	5514040.00
molecular_weight	16575.0 kDa
excluded_volume	20492 Å³
envelope_volume	23074 Å³
shell_volume	13029 Å³
envelope_diameter	52.1 Å
shell_rg	20.77 Å
envelope_rg	15.44 Å
shape_rg	15.11 Å
total_rg	16.25 Å
total_atoms	1144
n_residues	135
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	52.4 Å
rg_real	16.17 Å
rg_real_error	0.22 Å
i0_real	5.5140e+06
i0_real_error	6.0420e+04
rg_reciprocal	16.18 Å
i0_reciprocal	5514000.0000
total_estimate	0.9016
solution_quality	EXCELLENT a EXCELLENT solution
n_peaks	2
r_peak_primary	20.2 Å
skewness	0.163
kurtosis	-0.504
angular_range	— – 0.4900 Å⁻¹
current_alpha	0.0000
highest_alpha	1352000.0000
n_real_points	79
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.906; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 1.000; Smooth: 0.999

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (9)

Entity 1 polymer

description	Non-secretory ribonuclease
formula_weight	15611.8 kDa
ec_number	4.6.1.18
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	A
atom_count	1427

MKPPQFTWAQWFETQHINMTSQQCTNAMQVINNYQRRCKNQNTFLLTTFANVVNVCGNPNMTCPSNKTRKNCHHSGSQVPLIHCNLTTPSPQNISNCRYAQTPANMFYIVACDNRDQRRDPPQYPVVPVHLDRII

Source

organism	;Escherichia coli 'BL21-Gold(DE3)pLysS AG' ;
ncbi_taxonomy_id	866768
host_organism	Expression vector pET-mod

Entity 2 non-polymer

description	alpha-D-galactopyranose
formula_weight	180.2 kDa
src_method	syn
entity_count	1

Entity 3 non-polymer

description	ACETATE ION
formula_weight	59.0 kDa
src_method	syn
entity_count	2

Entity 4 non-polymer

description	FORMIC ACID
formula_weight	46.0 kDa
src_method	syn
entity_count	2

Entity 5 non-polymer

description	DI(HYDROXYETHYL)ETHER
formula_weight	106.1 kDa
src_method	syn
entity_count	1

Entity 6 non-polymer

description	1,2-ETHANEDIOL
formula_weight	62.1 kDa
src_method	syn
entity_count	2

Entity 7 non-polymer

description	SODIUM ION
formula_weight	23.0 kDa
src_method	syn
entity_count	13

Entity 8 non-polymer

description	CHLORIDE ION
formula_weight	35.5 kDa
src_method	syn
entity_count	2

Entity 9 water

description	water
formula_weight	18.0 kDa
src_method	nat
entity_count	198

▶

6. Citations (1)

▶

length_a	41.667 Å
length_b	52.668 Å
length_c	56.452 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	4

space_group	P 21 21 21
int_tables_number	19
crystal_system	orthorhombic

resolution	1.020 Å
resolution_low	38.510 Å
r_factor	0.1394
r_work	0.1390
r_free	0.1517
