9rb3
A53T alpha-synuclein fibril - Type 1
SAXS Profile

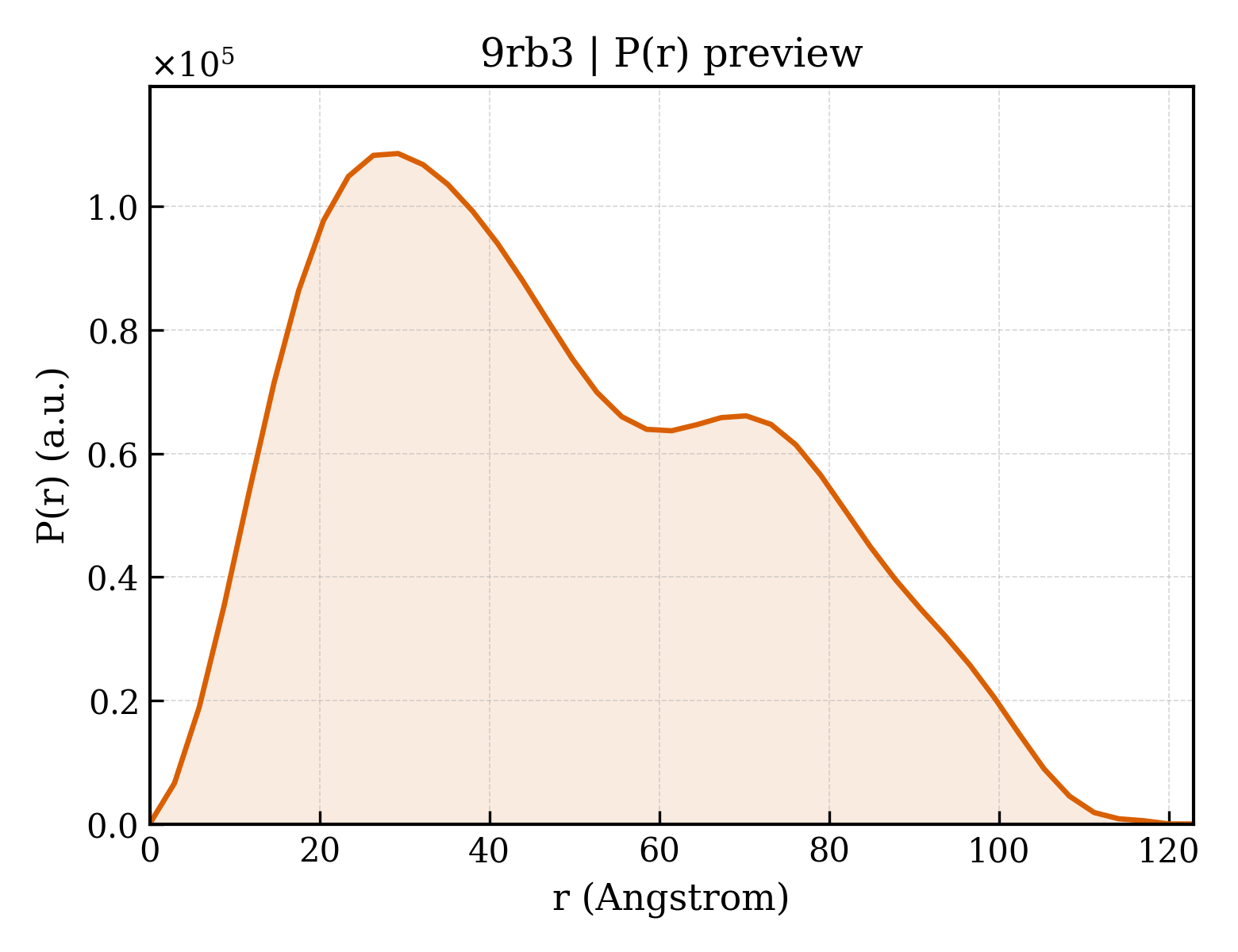

P(r) Distribution
1. Structure Basics
| entry_id | 9rb3 |
| deposition_date | 2025-05-21 |
| title | A53T alpha-synuclein fibril - Type 1 |
| keywords | alpha-synuclein, fibril, A53T mutant, PROTEIN FIBRIL; PROTEIN FIBRIL |
| method | ELECTRON MICROSCOPY |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 37.54 Å |
| rg_electron | 37.68 Å |
| i0 | 83154600.00 |
| molecular_weight | 73995.0 kDa |
| excluded_volume | 93456 ų |
| envelope_volume | 129800 ų |
| shell_volume | 30984 ų |
| envelope_diameter | 122.5 Å |
| shell_rg | 40.06 Å |
| envelope_rg | 37.08 Å |
| shape_rg | 37.67 Å |
| total_rg | 37.90 Å |
| total_atoms | 5200 |
| n_residues | 750 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 122.9 Å |
| rg_real | 37.94 Å |
| rg_real_error | 1.29 Å |
| i0_real | 8.3150e+07 |
| i0_real_error | 1.3590e+06 |
| rg_reciprocal | 37.70 Å |
| i0_reciprocal | 83130000.0000 |
| total_estimate | 0.7959 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 29.3 Å |
| skewness | 0.392 |
| kurtosis | -0.808 |
| angular_range | — – 0.2100 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 6252000.0000 |
| n_real_points | 43 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.692; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.625; Smooth: 0.643 |
