9rb6
A53T alpha-synuclein fibril - Type 2
SAXS Profile

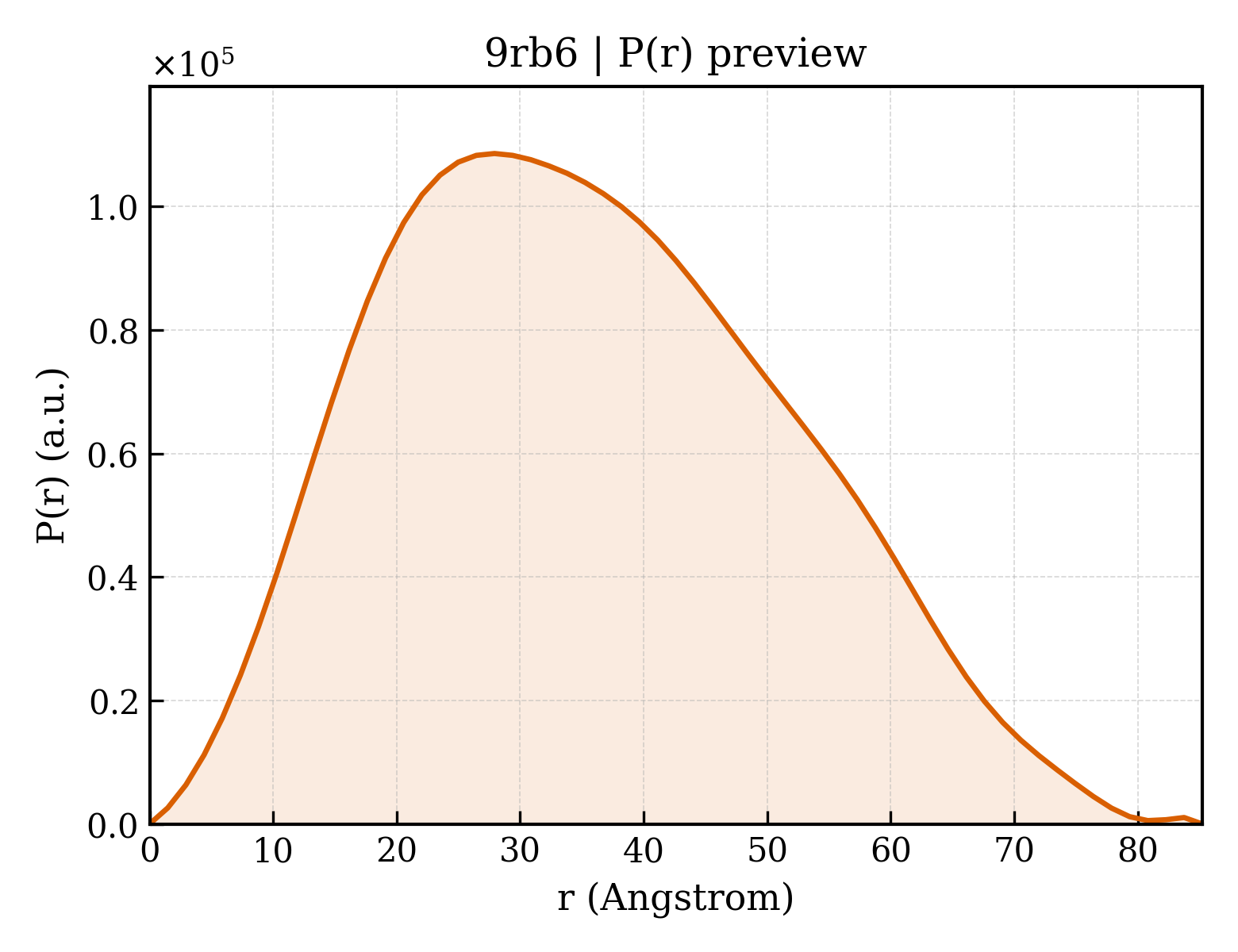

P(r) Distribution
1. Structure Basics
| entry_id | 9rb6 |
| deposition_date | 2025-05-21 |
| title | A53T alpha-synuclein fibril - Type 2 |
| keywords | alpha-synuclein, fibril, A53T mutant, PROTEIN FIBRIL; PROTEIN FIBRIL |
| method | ELECTRON MICROSCOPY |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 27.48 Å |
| rg_electron | 27.00 Å |
| i0 | 59312800.00 |
| molecular_weight | 61300.0 kDa |
| excluded_volume | 77700 ų |
| envelope_volume | 94504 ų |
| shell_volume | 29701 ų |
| envelope_diameter | 88.5 Å |
| shell_rg | 34.13 Å |
| envelope_rg | 26.95 Å |
| shape_rg | 27.00 Å |
| total_rg | 27.80 Å |
| total_atoms | 4310 |
| n_residues | 620 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 85.2 Å |
| rg_real | 27.47 Å |
| rg_real_error | 0.47 Å |
| i0_real | 5.9310e+07 |
| i0_real_error | 7.3990e+05 |
| rg_reciprocal | 27.48 Å |
| i0_reciprocal | 59310000.0000 |
| total_estimate | 0.9058 |
| solution_quality | EXCELLENT a EXCELLENT solution |
| n_peaks | 2 |
| r_peak_primary | 27.9 Å |
| skewness | 0.281 |
| kurtosis | -0.588 |
| angular_range | — – 0.2900 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 15860000.0000 |
| n_real_points | 59 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.959; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.988; Smooth: 0.905 |
