9rb7
Wild-type alpha-synuclein fibril - Type 1

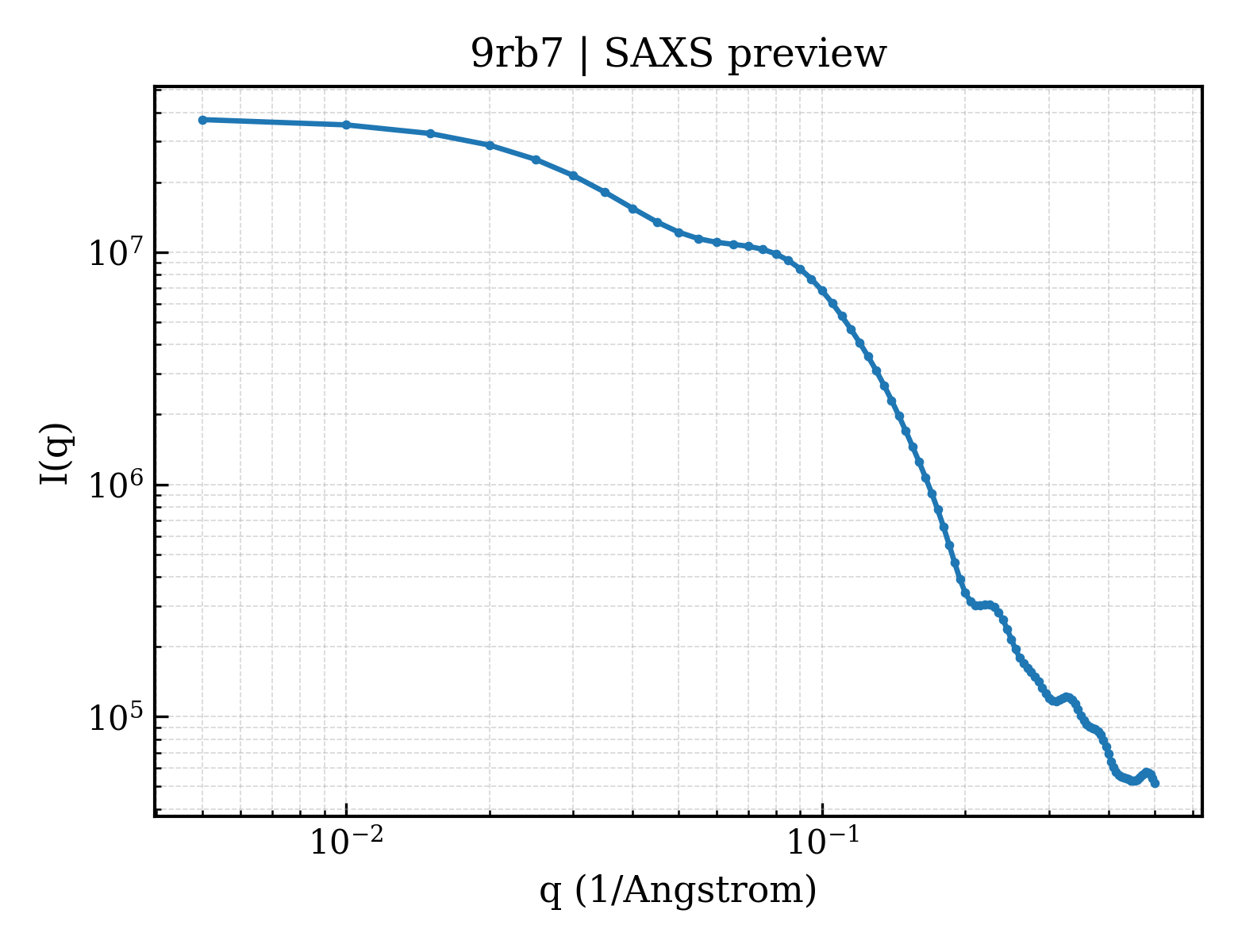

SAXS Profile

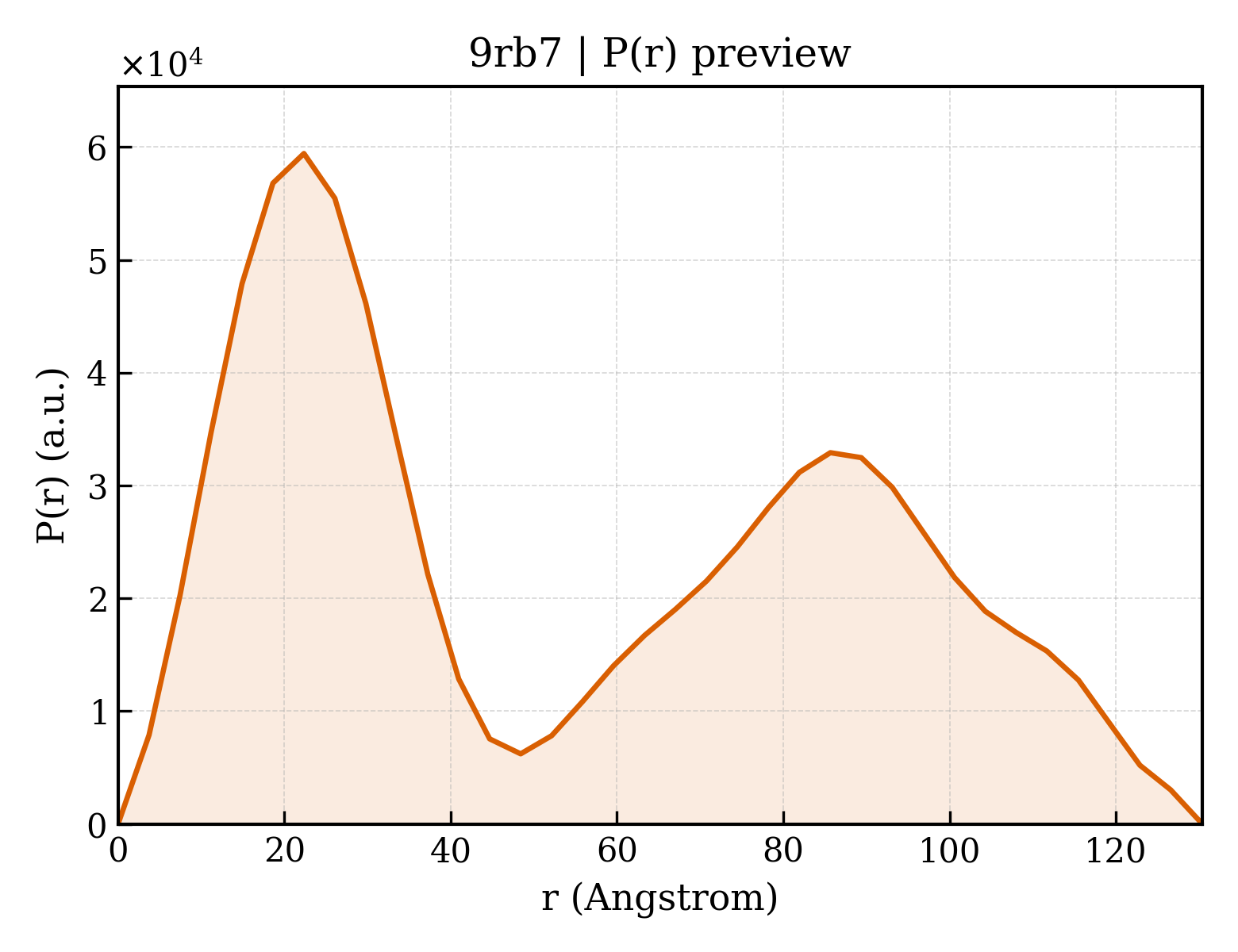

P(r) Distribution
1. Structure Basics
| entry_id | 9rb7 |
| deposition_date | 2025-05-21 |
| title | Wild-type alpha-synuclein fibril - Type 1 |
| keywords | alpha-synuclein, fibril, PROTEIN FIBRIL; PROTEIN FIBRIL |
| method | ELECTRON MICROSCOPY |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 44.97 Å |
| rg_electron | 45.56 Å |
| i0 | 37866900.00 |
| molecular_weight | 51088.0 kDa |
| excluded_volume | 64401 ų |
| envelope_volume | 89300 ų |
| shell_volume | 16658 ų |
| envelope_diameter | 136.5 Å |
| shell_rg | 48.94 Å |
| envelope_rg | 43.70 Å |
| shape_rg | 45.55 Å |
| total_rg | 45.74 Å |
| total_atoms | 7340 |
| n_residues | 530 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 130.4 Å |
| rg_real | 45.76 Å |
| rg_real_error | 1.52 Å |
| i0_real | 3.7870e+07 |
| i0_real_error | 7.2430e+05 |
| rg_reciprocal | 44.98 Å |
| i0_reciprocal | 37830000.0000 |
| total_estimate | 0.5399 |
| solution_quality | REASONABLE a REASONABLE solution |
| n_peaks | 2 |
| r_peak_primary | 22.4 Å |
| skewness | 0.271 |
| kurtosis | -1.375 |
| angular_range | — – 0.1750 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 1013000.0000 |
| n_real_points | 36 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.004; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.002; Smooth: 0.000 |
