9rbl

Three dimensional structure of human carbonic anhydrase IX in complex with sulfonamide MKV558

Method: X-RAY DIFFRACTION D_max: 118.9 Å Quality: REASONABLE

SAXS Profile

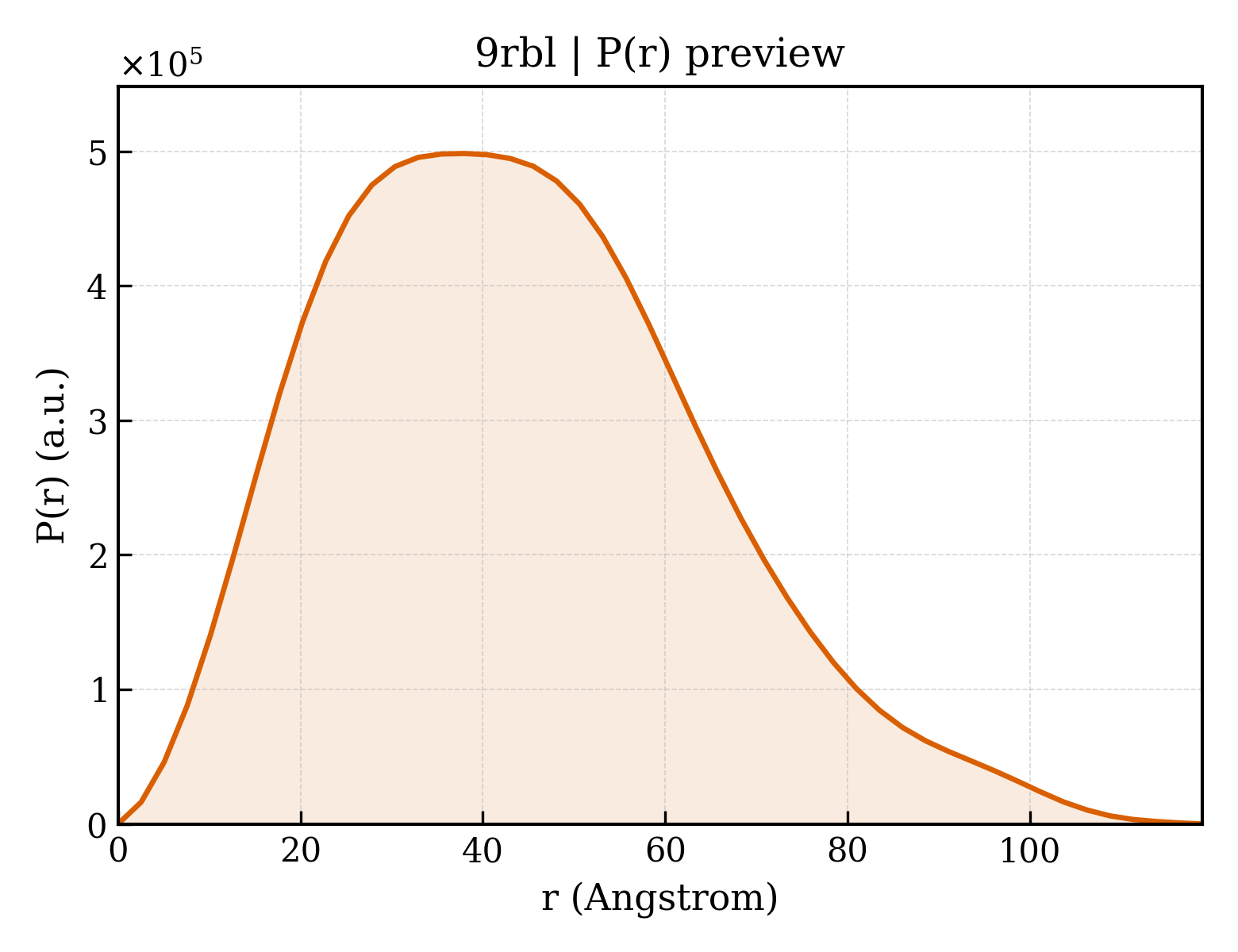

P(r) Distribution

▼

1. Structure Basics

entry_id	9rbl
deposition_date	2025-05-27
last_revision	2026-05-27
title	Three dimensional structure of human carbonic anhydrase IX in complex with sulfonamide MKV558
keywords	CA IX, CA 9, CARBONIC ANHYDRASE IX, CARBONIC ANHYDRASE 9, LYASE; LYASE
method	X-RAY DIFFRACTION

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	33.98 Å
rg_electron	33.77 Å
i0	340232000.00
molecular_weight	98843.0 kDa
excluded_volume	95262 Å³
envelope_volume	164930 Å³
shell_volume	41704 Å³
envelope_diameter	124.8 Å
shell_rg	39.41 Å
envelope_rg	33.66 Å
shape_rg	33.78 Å
total_rg	34.07 Å
total_atoms	7488
n_residues	956
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	118.9 Å
rg_real	34.10 Å
rg_real_error	0.88 Å
i0_real	3.4020e+08
i0_real_error	5.8880e+06
rg_reciprocal	34.03 Å
i0_reciprocal	340200000.0000
total_estimate	0.6697
solution_quality	REASONABLE a REASONABLE solution
n_peaks	1
r_peak_primary	38.0 Å
skewness	0.468
kurtosis	-0.144
angular_range	— – 0.2350 Å⁻¹
current_alpha	0.0000
highest_alpha	109800000.0000
n_real_points	48
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.778; Stabil: 1.000; Sysdev: 0.214; Positv: 1.000; Valcen: 0.848; Smooth: 0.876

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (4)

Entity 1 polymer

description	Carbonic anhydrase 9
formula_weight	28089.6 kDa
ec_number	4.2.1.1
mutation	C41S, N213Q
src_method	man
entity_count	4

Polymer

type	polypeptide(L)
strand_id	A,B,C,D
atom_count	7866

GDQSHWRYGGDPPWPRVSPACAGRFQSPVDIRPQLAAFSPALRPLELLGFQLPPLPELRLRNNGHSVQLTLPPGLEMALGPGREYRALQLHLHWGAAGRPGSEHTVEGHRFPAEIHVVHLSTAFARVDEALGRPGGLAVLAAFLEEGPEENSAYEQLLSRLEEIAEEGSETQVPGLDISALLPSDFSRYFQYEGSLTTPPCAQGVIWTVFQQTVMLSAKQLHTLSDTLWGPGDSRLQLNFRATQPLNGRVIEASFP

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Komagataella pastoris

Entity 2 non-polymer

description	ZINC ION
formula_weight	65.4 kDa
src_method	syn
entity_count	4

Entity 3 non-polymer

description	3-(Cyclooctylamino)-5-ethoxy-2,6-difluoro-4-((3-hydroxypropyl)sulfonyl)benzenesulfonamide
formula_weight	484.6 kDa
src_method	syn
entity_count	4

Entity 4 water

description	water
formula_weight	18.0 kDa
src_method	nat
entity_count	354

▶

6. Citations (1)

▶

length_a	152.362 Å
length_b	152.362 Å
length_c	172.445 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	120.00 °
z_pdb	36

space_group	H 3
int_tables_number	146
crystal_system	—

resolution	2.050 Å
resolution_low	47.910 Å
r_factor	0.1800
r_work	0.1784
r_free	0.2144
