9rep

Crystal Structure of the Protein-Kinase A catalytic subunit from Cricetulus griseus in complex with F304

Method: X-RAY DIFFRACTION D_max: 67.2 Å Quality: REASONABLE

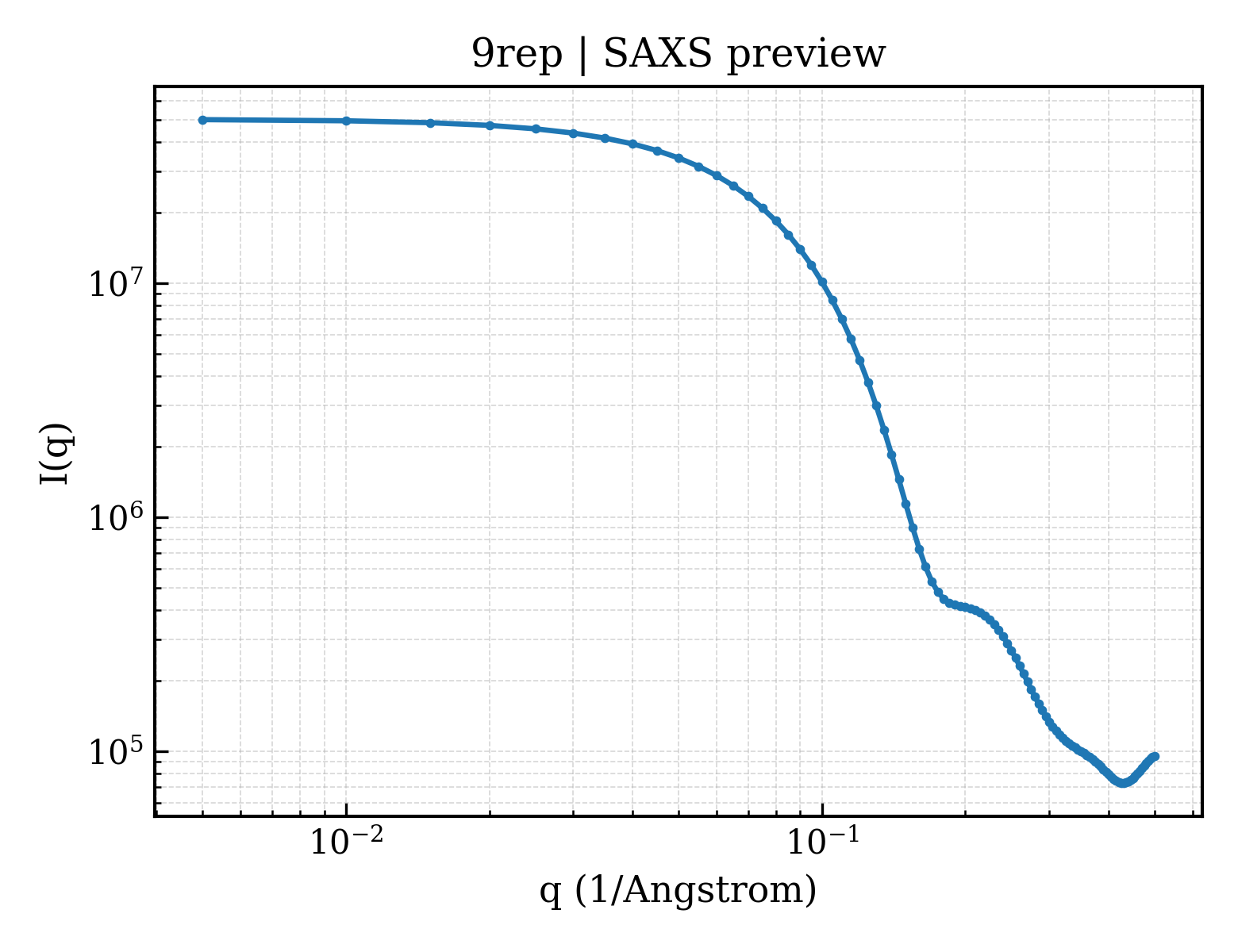

SAXS Profile

P(r) Distribution

▼

1. Structure Basics

entry_id	9rep
deposition_date	2025-06-03
title	Crystal Structure of the Protein-Kinase A catalytic subunit from Cricetulus griseus in complex with F304
keywords	serine-threonine kinase, small molecules, ligand binding, fragment-based drug discovery, TRANSFERASE; TRANSFERASE
method	X-RAY DIFFRACTION

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	21.35 Å
rg_electron	20.28 Å
i0	50120400.00
molecular_weight	37649.0 kDa
excluded_volume	36820 Å³
envelope_volume	59403 Å³
shell_volume	23931 Å³
envelope_diameter	69.5 Å
shell_rg	27.32 Å
envelope_rg	20.39 Å
shape_rg	20.22 Å
total_rg	21.03 Å
total_atoms	2849
n_residues	337
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	67.2 Å
rg_real	21.22 Å
rg_real_error	0.30 Å
i0_real	5.0120e+07
i0_real_error	6.5350e+05
rg_reciprocal	21.24 Å
i0_reciprocal	50120000.0000
total_estimate	0.7327
solution_quality	REASONABLE a REASONABLE solution
n_peaks	1
r_peak_primary	65.2 Å
skewness	0.173
kurtosis	-0.415
angular_range	— – 0.3700 Å⁻¹
current_alpha	0.0000
highest_alpha	10530000.0000
n_real_points	69
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.894; Stabil: 1.000; Sysdev: 0.281; Positv: 1.000; Valcen: 0.995; Smooth: 0.999

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (5)

Entity 1 polymer

description	cAMP-dependent protein kinase catalytic subunit alpha
formula_weight	41113.8 kDa
ec_number	2.7.11.11
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	A
atom_count	3229

GHMGNAAAAKKGSEQESVKEFLAKAKEEFLKKWESPSQNTAQLDHFDRIKTLGTGSFGRVMLVKHKETGNHYAMKILDKQKVVKLKQIEHTLNEKRILQAVNFPFLVKLEFSFKDNSNLYMVMEYVPGGEMFSHLRRIGRFSEPHARFYAAQIVLTFEYLHSLDLIYRDLKPENLLIDQQGYIQVTDFGFAKRVKGRTWTLCGTPEYLAPEIILSKGYNKAVDWWALGVLIYEMAAGYPPFFADQPIQIYEKIVSGKVRFPSHFSSDLKDLLRNLLQVDLTKRFGNLKNGVNDIKNHKWFATTDWIAIYQRKVEAPFIPKFKGPGDTSNFDDYEEEEIRVSINEKCGKEFTEF

Source

organism	Cricetulus griseus
common_name	Chinese hamster
ncbi_taxonomy_id	10029
host_organism	;Escherichia coli 'BL21-Gold(DE3)pLysS AG' ;

Entity 2 non-polymer

description	DI(HYDROXYETHYL)ETHER
formula_weight	106.1 kDa
src_method	syn
entity_count	1

Entity 3 non-polymer

description	3-(4-methoxyphenyl)-4-[(1~{S})-1-oxidanylethyl]-1,2-oxazole-5-carboxylic acid
formula_weight	263.2 kDa
src_method	syn
entity_count	3

Entity 4 non-polymer

description	DIMETHYL SULFOXIDE
formula_weight	78.1 kDa
src_method	syn
entity_count	9

Entity 5 water

description	water
formula_weight	18.0 kDa
src_method	nat
entity_count	222

▶

6. Citations (1)

▶

length_a	52.704 Å
length_b	71.383 Å
length_c	99.065 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	4

space_group	P 21 21 21
int_tables_number	19
crystal_system	orthorhombic

resolution	1.440 Å
resolution_low	24.770 Å
r_factor	0.1567
r_work	0.1554
r_free	0.1808
