9rf1
Structure of human GPX4-U46C-R152K mutant
SAXS Profile

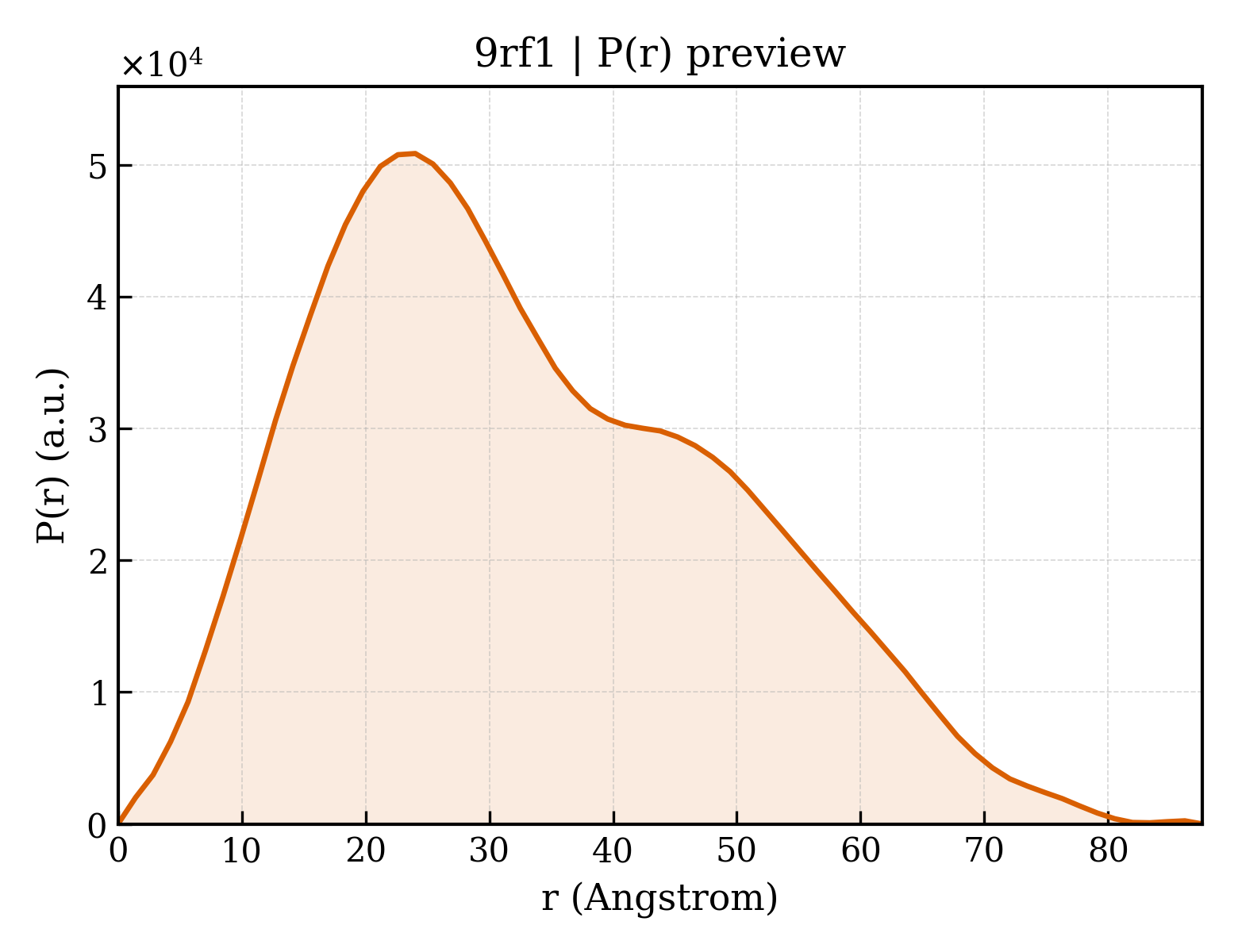

P(r) Distribution
1. Structure Basics
| entry_id | 9rf1 |
| deposition_date | 2025-06-04 |
| title | Structure of human GPX4-U46C-R152K mutant |
| keywords | Ferroptosis, GPX4, Xray, STRUCTURAL PROTEIN; STRUCTURAL PROTEIN |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 25.78 Å |
| rg_electron | 25.06 Å |
| i0 | 24195500.00 |
| molecular_weight | 37862.0 kDa |
| excluded_volume | 47296 ų |
| envelope_volume | 57684 ų |
| shell_volume | 20101 ų |
| envelope_diameter | 89.3 Å |
| shell_rg | 30.81 Å |
| envelope_rg | 25.11 Å |
| shape_rg | 25.01 Å |
| total_rg | 25.90 Å |
| total_atoms | 2658 |
| n_residues | 334 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 87.6 Å |
| rg_real | 25.96 Å |
| rg_real_error | 0.97 Å |
| i0_real | 2.4200e+07 |
| i0_real_error | 4.0240e+05 |
| rg_reciprocal | 25.91 Å |
| i0_reciprocal | 24190000.0000 |
| total_estimate | 0.8306 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 24.0 Å |
| skewness | 0.450 |
| kurtosis | -0.531 |
| angular_range | — – 0.3100 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 5767000.0000 |
| n_real_points | 63 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.679; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.783; Smooth: 0.977 |
