9rfq

Structure of liver pyruvate kinase in complex with Liver pyruvate kinase in complex with fluorescent probe I

Method: X-RAY DIFFRACTION D_max: 171.9 Å Quality: GOOD

SAXS Profile

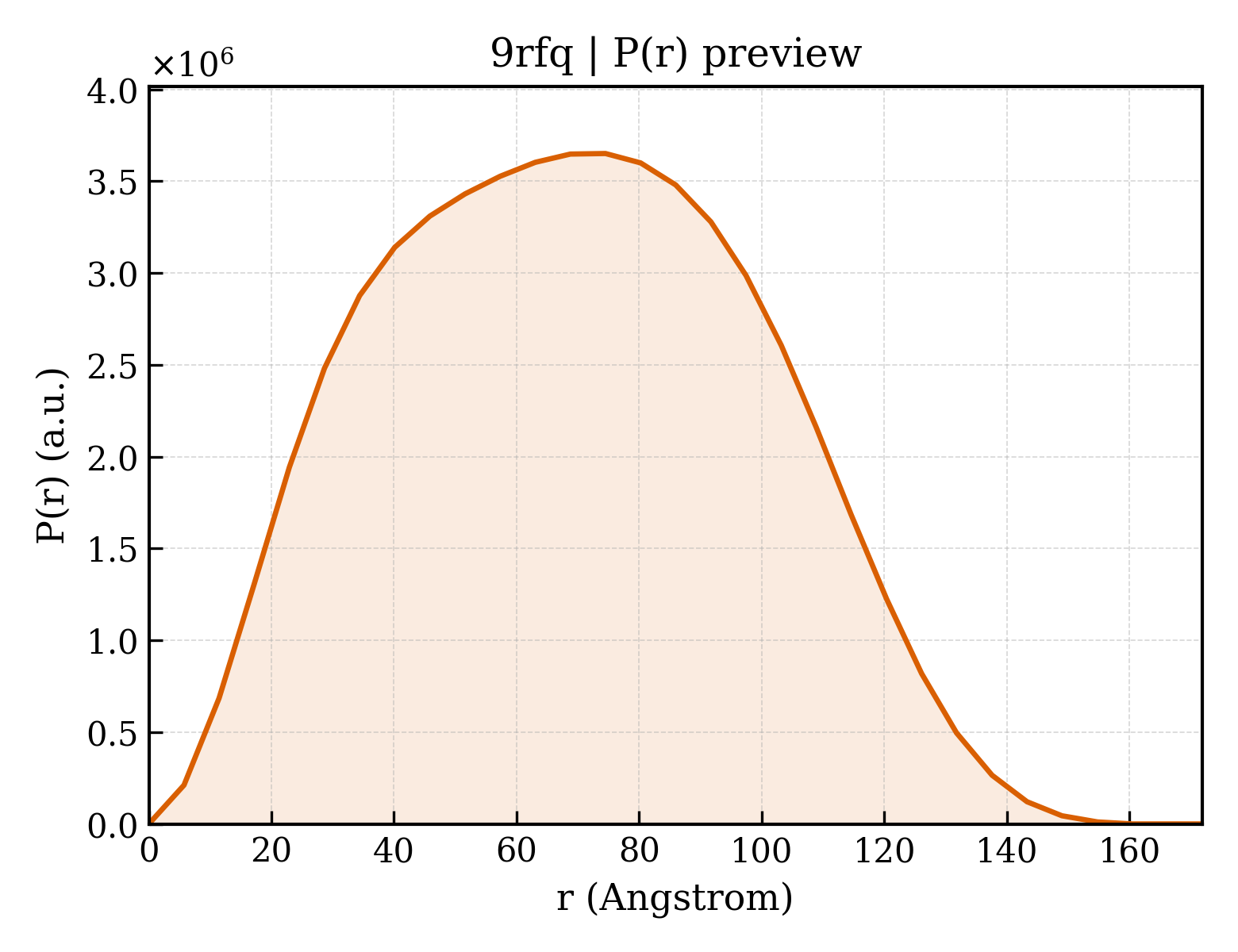

P(r) Distribution

▼

1. Structure Basics

entry_id	9rfq
deposition_date	2025-06-04
title	Structure of liver pyruvate kinase in complex with Liver pyruvate kinase in complex with fluorescent probe I
keywords	Pyruvate kinase, fluorescence, allosteric site, TRANSFERASE; TRANSFERASE
method	X-RAY DIFFRACTION

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	53.30 Å
rg_electron	52.97 Å
i0	4076220000.00
molecular_weight	348030.0 kDa
excluded_volume	332520 Å³
envelope_volume	623150 Å³
shell_volume	94059 Å³
envelope_diameter	165.9 Å
shell_rg	60.68 Å
envelope_rg	51.44 Å
shape_rg	52.95 Å
total_rg	53.12 Å
total_atoms	26310
n_residues	3417
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	171.9 Å
rg_real	53.17 Å
rg_real_error	1.75 Å
i0_real	4.0760e+09
i0_real_error	8.5330e+07
rg_reciprocal	53.39 Å
i0_reciprocal	4077000000.0000
total_estimate	0.8961
solution_quality	GOOD a GOOD solution
n_peaks	2
r_peak_primary	74.5 Å
skewness	0.100
kurtosis	-0.750
angular_range	— – 0.1500 Å⁻¹
current_alpha	0.0000
highest_alpha	217700000.0000
n_real_points	31
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.930; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.998; Smooth: 0.858

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (7)

Entity 1 polymer

description	Isoform L-type of Pyruvate kinase PKLR
formula_weight	48285.4 kDa
ec_number	2.7.1.40
src_method	man
entity_count	8

Polymer

type	polypeptide(L)
strand_id	A,B,C,D,E,F,G,H
atom_count	27172

GSMEGPAGYLRRADVAQLTQELGTAFFQQQQLPAAMADTFLEHLCLLDIDSEPVAARSTSIIATIGPASRSVERLKEMIKAGMNIARLNFSHGSHEYHAESIANVREAVESFAGSPLSYRPVAIALDTKGPGSGPGLSEQDVRDLRFGVEHGVDIVFASFVRKASDVAAVRAALGPEGHGIKIISKIENHEGVKRFDEILEVSDGIMVARGDLGIEIPAEKVFLAQKMMIGRCNLAGKPVVCATQMLESMITKPRPTRAETSDVANAVLDGADCIMLSGETAKGNFPVEAVKMQHAIAREAEAAVYHRQLFEELRRAAPLSRDPTEVTAIGAVEAAFKCCAAAIIVLTTTGRSAQLLSRYRPRAAVIAVTRSAQAARQVHLCRGVFPLLYREPPEAIWADDVDRRVQFGIESGKLRGFLRVGDLVIVVTGWRPGSGYTNIMRVLSIS

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Escherichia coli

Entity 2 non-polymer

description	1,6-di-O-phosphono-beta-D-fructofuranose
formula_weight	340.1 kDa
src_method	syn
entity_count	8

Entity 3 non-polymer

description	OXALATE ION
formula_weight	88.0 kDa
src_method	syn
entity_count	8

Entity 4 non-polymer

description	MAGNESIUM ION
formula_weight	24.3 kDa
src_method	syn
entity_count	8

Entity 5 non-polymer

description	POTASSIUM ION
formula_weight	39.1 kDa
src_method	syn
entity_count	8

Entity 6 non-polymer

description	2-(phenylmethyl)-6-(phenylsulfonyl)phthalazin-1-one
formula_weight	376.4 kDa
src_method	syn
entity_count	4

Entity 7 water

description	water
formula_weight	18.0 kDa
src_method	nat
entity_count	628

▶

6. Citations (1)

▶

length_a	207.363 Å
length_b	112.743 Å
length_c	187.803 Å
angle_alpha	90.00 °
angle_beta	91.83 °
angle_gamma	90.00 °
z_pdb	32

space_group	C 1 2 1
int_tables_number	5
crystal_system	—

resolution	2.385 Å
resolution_low	187.710 Å
r_factor	0.2106
r_work	0.2090
r_free	0.2417

fit	/app/data/saxs_computation/rf/9rfq/9rfq.fit
pddf	/app/data/pr_computation/rf/9rfq/9rfq.pr.out
profile	/app/data/saxs_computation/rf/9rfq/9rfq.dat
