9rgz
X-ray crystal structure of a de novo designed single-chain antiparallel 3-helix coiled-coil bundle, sc-apCC3-CW-2NTT
SAXS Profile

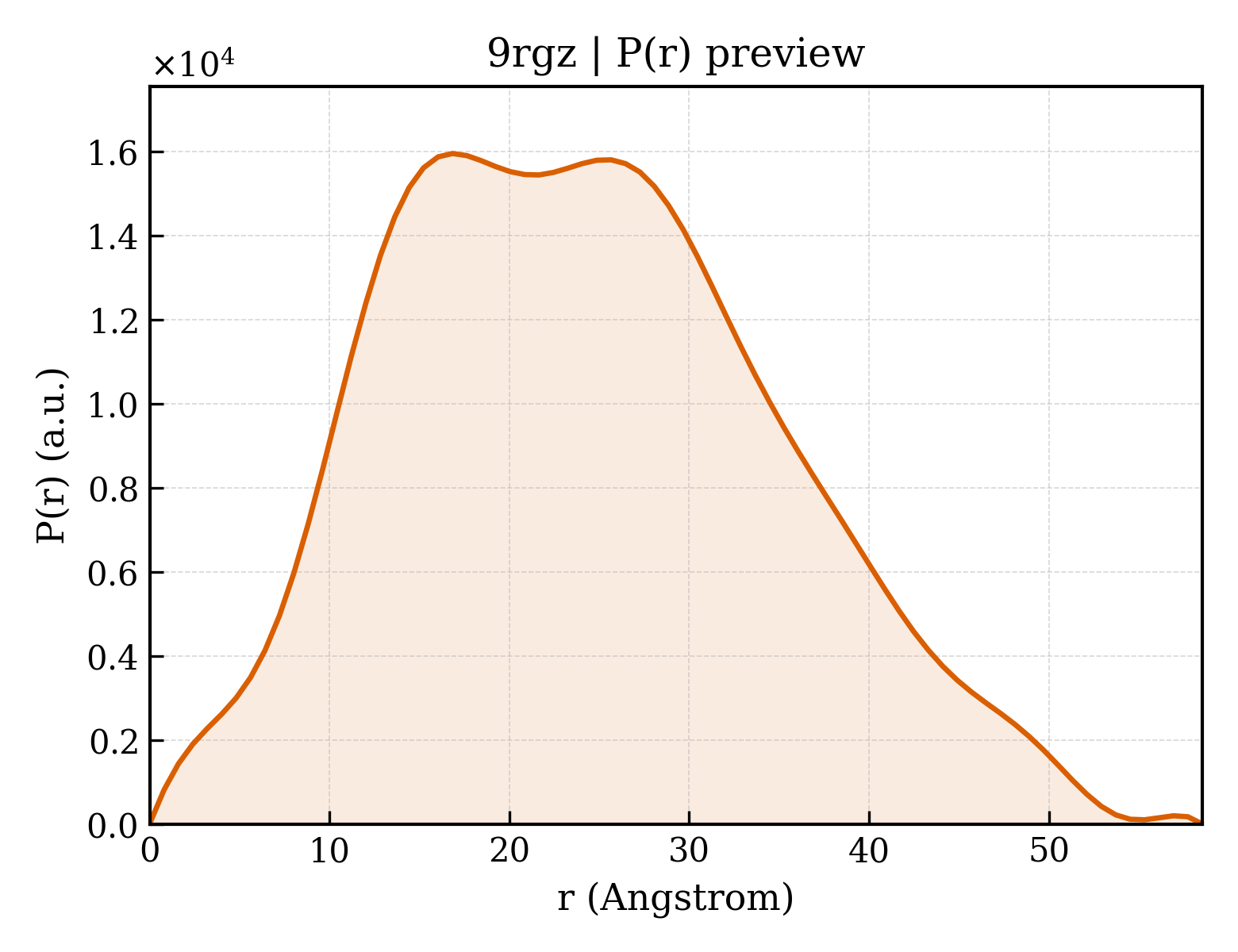

P(r) Distribution
1. Structure Basics
| entry_id | 9rgz |
| deposition_date | 2025-06-08 |
| title | X-ray crystal structure of a de novo designed single-chain antiparallel 3-helix coiled-coil bundle, sc-apCC3-CW-2NTT |
| keywords | Coiled coil, CC, de novo, DE NOVO PROTEIN; DE NOVO PROTEIN |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 18.73 Å |
| rg_electron | 18.12 Å |
| i0 | 5924040.00 |
| molecular_weight | 19149.0 kDa |
| excluded_volume | 24637 ų |
| envelope_volume | 29206 ų |
| shell_volume | 14177 ų |
| envelope_diameter | 58.4 Å |
| shell_rg | 23.17 Å |
| envelope_rg | 18.26 Å |
| shape_rg | 18.11 Å |
| total_rg | 19.07 Å |
| total_atoms | 1353 |
| n_residues | 194 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 58.5 Å |
| rg_real | 18.72 Å |
| rg_real_error | 0.35 Å |
| i0_real | 5.9240e+06 |
| i0_real_error | 7.8900e+04 |
| rg_reciprocal | 18.72 Å |
| i0_reciprocal | 5924000.0000 |
| total_estimate | 0.8911 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 3 |
| r_peak_primary | 16.8 Å |
| skewness | 0.296 |
| kurtosis | -0.440 |
| angular_range | — – 0.4250 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 2537000.0000 |
| n_real_points | 74 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.877; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.989; Smooth: 0.960 |
