9rjg

Structure of Mycobacterium tuberculosis InhA in complex with pyridomycin (compound 1)

Method: X-RAY DIFFRACTION D_max: 126.1 Å Quality: GOOD

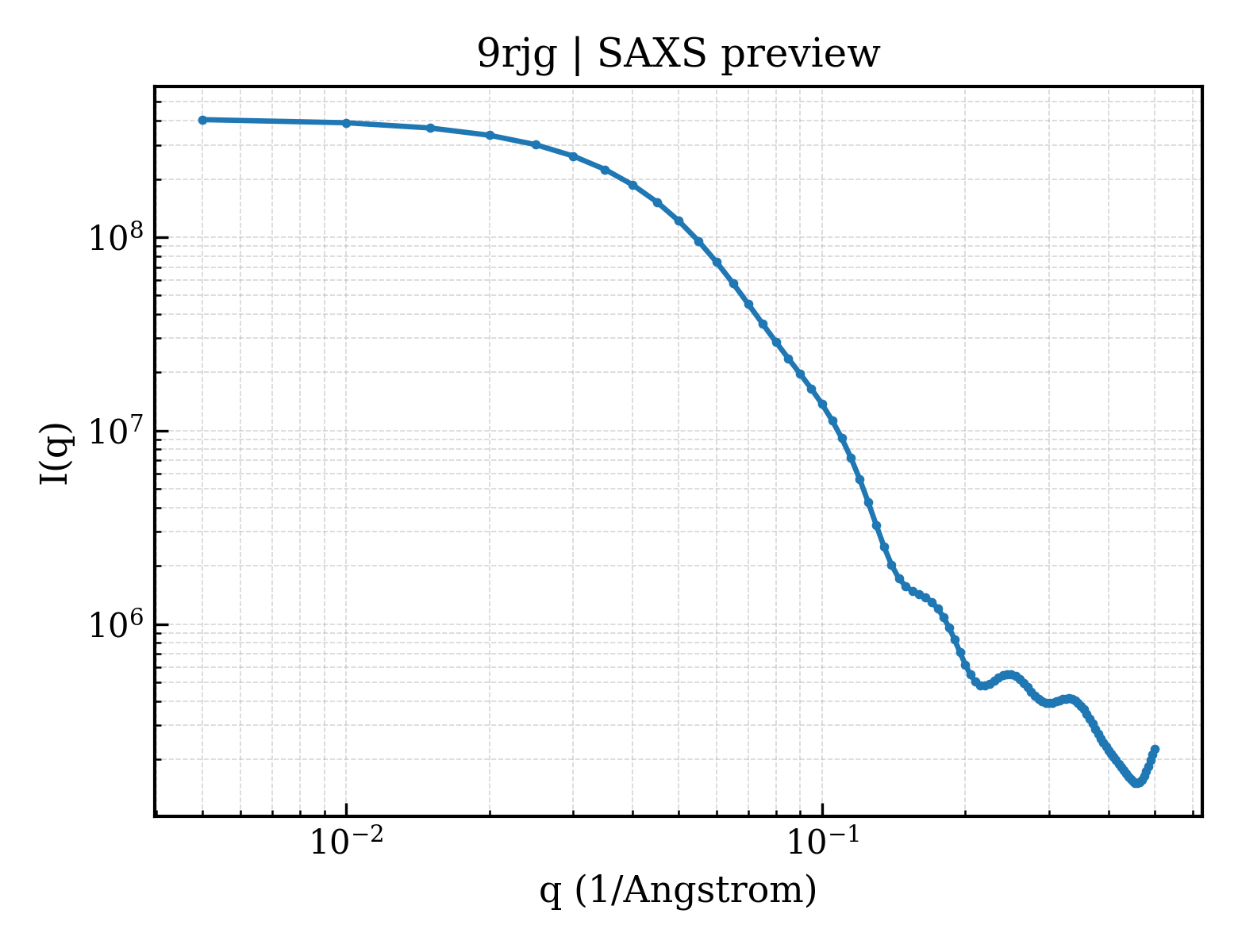

SAXS Profile

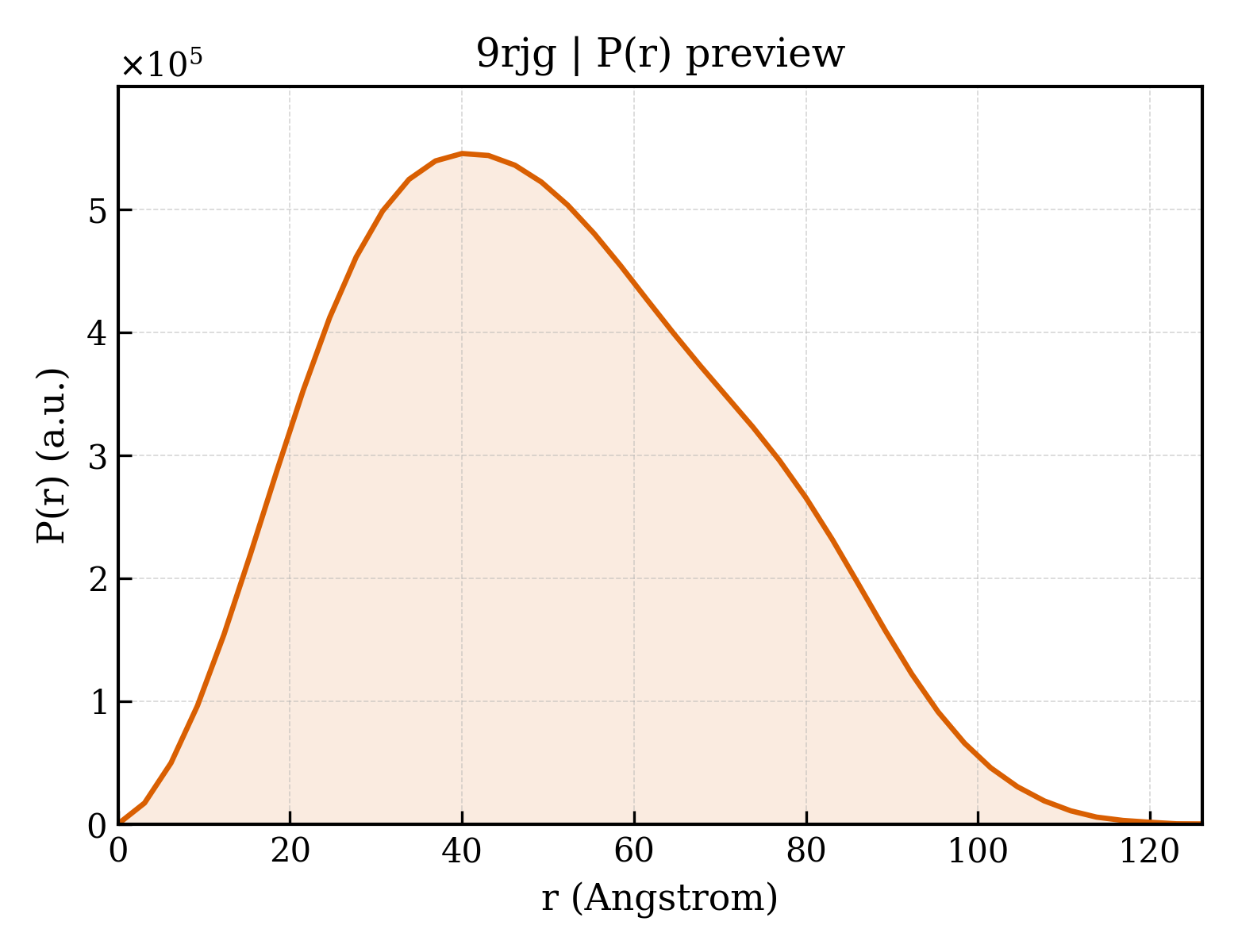

P(r) Distribution

▼

1. Structure Basics

entry_id	9rjg
deposition_date	2025-06-12
title	Structure of Mycobacterium tuberculosis InhA in complex with pyridomycin (compound 1)
keywords	InhA mycobacterium tuberculosis pyridomycin complex inhibitor, OXIDOREDUCTASE; OXIDOREDUCTASE
method	X-RAY DIFFRACTION

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	38.53 Å
rg_electron	38.12 Å
i0	409998000.00
molecular_weight	166770.0 kDa
excluded_volume	209480 Å³
envelope_volume	264400 Å³
shell_volume	57079 Å³
envelope_diameter	130.8 Å
shell_rg	44.51 Å
envelope_rg	38.06 Å
shape_rg	38.13 Å
total_rg	38.47 Å
total_atoms	11735
n_residues	1559
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	126.1 Å
rg_real	38.52 Å
rg_real_error	0.99 Å
i0_real	4.1000e+08
i0_real_error	6.6010e+06
rg_reciprocal	38.53 Å
i0_reciprocal	410000000.0000
total_estimate	0.8922
solution_quality	GOOD a GOOD solution
n_peaks	1
r_peak_primary	40.0 Å
skewness	0.291
kurtosis	-0.574
angular_range	— – 0.2050 Å⁻¹
current_alpha	0.0000
highest_alpha	130800000.0000
n_real_points	42
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.898; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.995; Smooth: 0.904

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (4)

Entity 1 polymer

description	Enoyl-[acyl-carrier-protein] reductase [NADH]
formula_weight	28837.1 kDa
ec_number	1.3.1.9
src_method	man
entity_count	6

Polymer

type	polypeptide(L)
strand_id	A,B,C,D,E,F
atom_count	13037

GSHMTGLLDGKRILVSGIITDSSIAFHIARVAQEQGAQLVLTGFDRLRLIQRITDRLPAKAPLLELDVQNEEHLASLAGRVTEAIGAGNKLDGVVHSIGFMPQTGMGINPFFDAPYADVSKGIHISAYSYASMAKALLPIMNPGGSIVGMDFDPSRAMPAYNWMTVAKSALESVNRFVAREAGKYGVRSNLVAAGPIRTLAMSAIVGGALGEEAGAQIQLLEEGWDQRAPIGWNMKDATPVAKTVCALLSDWLPATTGDIIYADGGAHTQLL

Source

organism	Mycobacterium tuberculosis
ncbi_taxonomy_id	1773
host_organism	Escherichia coli BL21(DE3)

Entity 2 non-polymer

description	Pyridomycin
formula_weight	540.6 kDa
src_method	syn
entity_count	6

Entity 3 non-polymer

description	TRIETHYLENE GLYCOL
formula_weight	150.2 kDa
src_method	syn
entity_count	1

Entity 4 water

description	water
formula_weight	18.0 kDa
src_method	nat
entity_count	1118

▶

6. Citations (1)

▶

length_a	100.230 Å
length_b	82.500 Å
length_c	188.410 Å
angle_alpha	90.00 °
angle_beta	95.89 °
angle_gamma	90.00 °
z_pdb	24

space_group	C 1 2 1
int_tables_number	5
crystal_system	—

resolution	1.711 Å
resolution_low	62.470 Å
r_factor	0.1736
r_work	0.1724
r_free	0.1944

fit	/app/data/saxs_computation/rj/9rjg/9rjg.fit
pddf	/app/data/pr_computation/rj/9rjg/9rjg.pr.out
profile	/app/data/saxs_computation/rj/9rjg/9rjg.dat
