9rjm

Structure of Mycobacterium tuberculosis InhA in complex with pyridomycin derivative EP196 (compound 13)

Method: X-RAY DIFFRACTION D_max: 122.3 Å Quality: EXCELLENT

SAXS Profile

P(r) Distribution

▼

1. Structure Basics

entry_id	9rjm
deposition_date	2025-06-12
title	Structure of Mycobacterium tuberculosis InhA in complex with pyridomycin derivative EP196 (compound 13)
keywords	InhA mycobacterium tuberculosis pyridomycin complex inhibitor, OXIDOREDUCTASE; OXIDOREDUCTASE
method	X-RAY DIFFRACTION

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	39.15 Å
rg_electron	38.61 Å
i0	800850000.00
molecular_weight	153610.0 kDa
excluded_volume	148240 Å³
envelope_volume	276800 Å³
shell_volume	58447 Å³
envelope_diameter	127.8 Å
shell_rg	45.74 Å
envelope_rg	37.83 Å
shape_rg	38.60 Å
total_rg	38.91 Å
total_atoms	11631
n_residues	1548
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

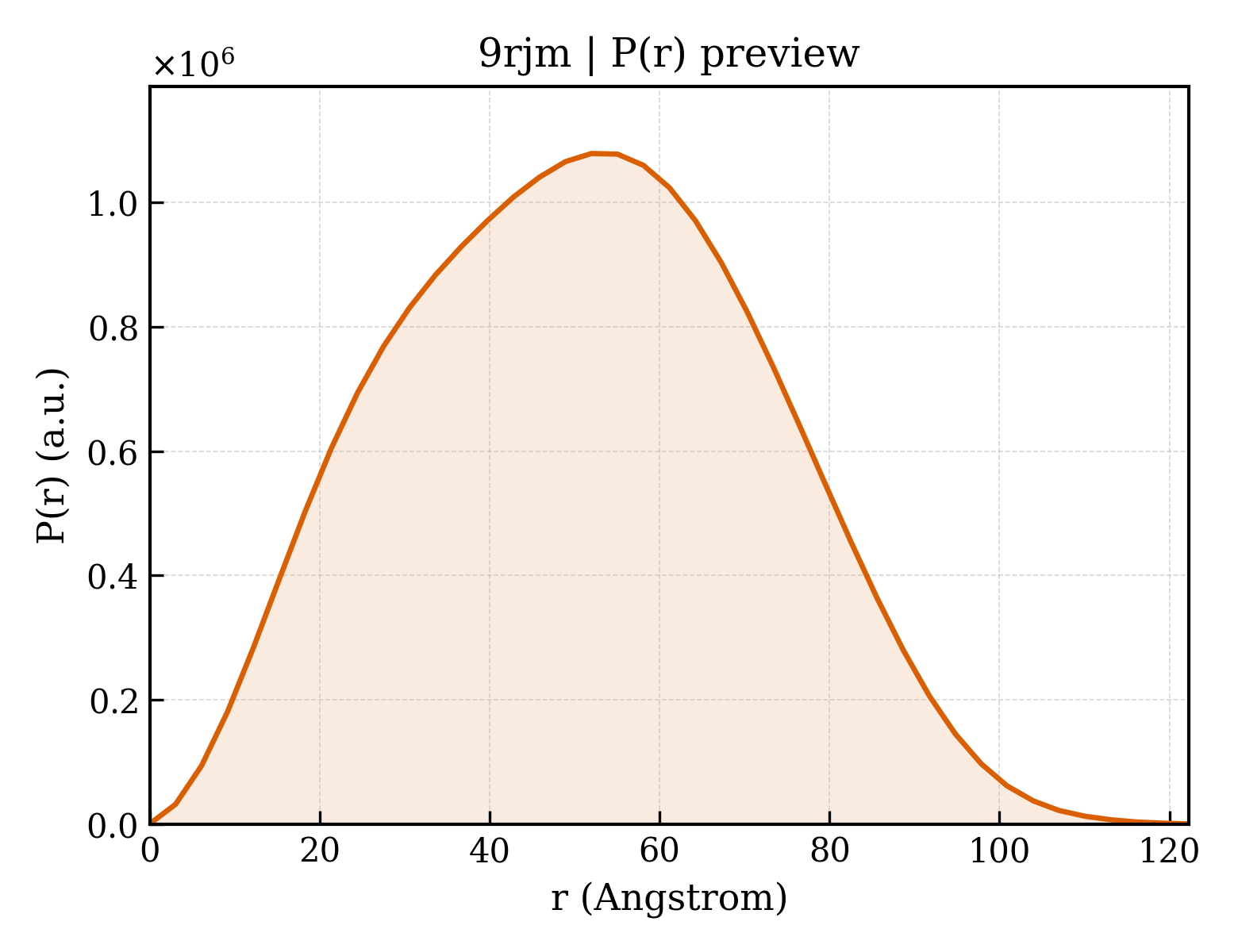

3. P(r) Analysis (GNOM)

dmax	122.3 Å
rg_real	38.93 Å
rg_real_error	0.71 Å
i0_real	8.0080e+08
i0_real_error	1.1470e+07
rg_reciprocal	39.07 Å
i0_reciprocal	801000000.0000
total_estimate	0.9037
solution_quality	EXCELLENT a EXCELLENT solution
n_peaks	1
r_peak_primary	52.0 Å
skewness	0.094
kurtosis	-0.607
angular_range	— – 0.2000 Å⁻¹
current_alpha	0.0000
highest_alpha	62750000.0000
n_real_points	41
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.946; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.997; Smooth: 0.909

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (3)

Entity 1 polymer

description	Enoyl-[acyl-carrier-protein] reductase [NADH]
formula_weight	28837.1 kDa
ec_number	1.3.1.9
src_method	man
entity_count	6

Polymer

type	polypeptide(L)
strand_id	A,B,C,D,E,F
atom_count	12576

GSHMTGLLDGKRILVSGIITDSSIAFHIARVAQEQGAQLVLTGFDRLRLIQRITDRLPAKAPLLELDVQNEEHLASLAGRVTEAIGAGNKLDGVVHSIGFMPQTGMGINPFFDAPYADVSKGIHISAYSYASMAKALLPIMNPGGSIVGMDFDPSRAMPAYNWMTVAKSALESVNRFVAREAGKYGVRSNLVAAGPIRTLAMSAIVGGALGEEAGAQIQLLEEGWDQRAPIGWNMKDATPVAKTVCALLSDWLPATTGDIIYADGGAHTQLL

Source

organism	Mycobacterium tuberculosis
ncbi_taxonomy_id	1773
host_organism	Escherichia coli BL21(DE3)

Entity 2 non-polymer

description	;~{N}-[(2~{Z},5~{R},6~{S},9~{S},10~{S},11~{R})-2-butan-2-ylidene-5,11-dimethyl-10-oxidanyl-3,7,12-tris(oxidanylidene)-9-(pyridin-3-ylmethyl)-1,4-dioxa-8-azacyclododec-6-yl]-4-fluoranyl-3-oxidanyl-pyridine-2-carboxamide ;
formula_weight	558.6 kDa
src_method	syn
entity_count	6

Entity 3 water

description	water
formula_weight	18.0 kDa
src_method	nat
entity_count	854

▶

6. Citations (1)

▶

length_a	100.040 Å
length_b	82.580 Å
length_c	188.610 Å
angle_alpha	90.00 °
angle_beta	95.94 °
angle_gamma	90.00 °
z_pdb	24

space_group	C 1 2 1
int_tables_number	5
crystal_system	—

resolution	1.986 Å
resolution_low	187.600 Å
r_factor	0.2009
r_work	0.1995
r_free	0.2267
