SAXSdb — 9rob

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

B-cell receptor CD22

Homo sapiens

UniProt P20273

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Other combination	Monomer	Protein 1 其他Polymer 1	beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 1 ;(2R,4S,5R,6R)-5-acetamido-2-[[2,3-bis(chloranyl)phenyl]methoxy]-6-[(1R,2R)-1,2-bis(oxidanyl)-3-[(4-phenylphenyl)carbonylamino]propyl]-4-oxidanyl-oxane-2-carboxylic acid ; × 1 GLYCEROL × 1 water × 1	Consistent with protein count
2	Other combination	Monomer	Protein 1 其他Polymer 1	beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 1 ;(2R,4S,5R,6R)-5-acetamido-2-[[2,3-bis(chloranyl)phenyl]methoxy]-6-[(1R,2R)-1,2-bis(oxidanyl)-3-[(4-phenylphenyl)carbonylamino]propyl]-4-oxidanyl-oxane-2-carboxylic acid ; × 1 GLYCEROL × 2 water × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	CD22_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 4–314； UniProt 20–330 Author chain B； PDBConstruct 4–314； UniProt 20–330

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9rob
Deposition date deposition_date	2025-06-20
Last revision last_revision	2025-12-10
Structure title title	Crystal structure of human CD22 Ig domains 1-3 in complex with modified sialoside 1B
Keywords keywords	Siglec, sialic acid, B cell, IMMUNE SYSTEM; IMMUNE SYSTEM
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

9rob__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

9rob__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

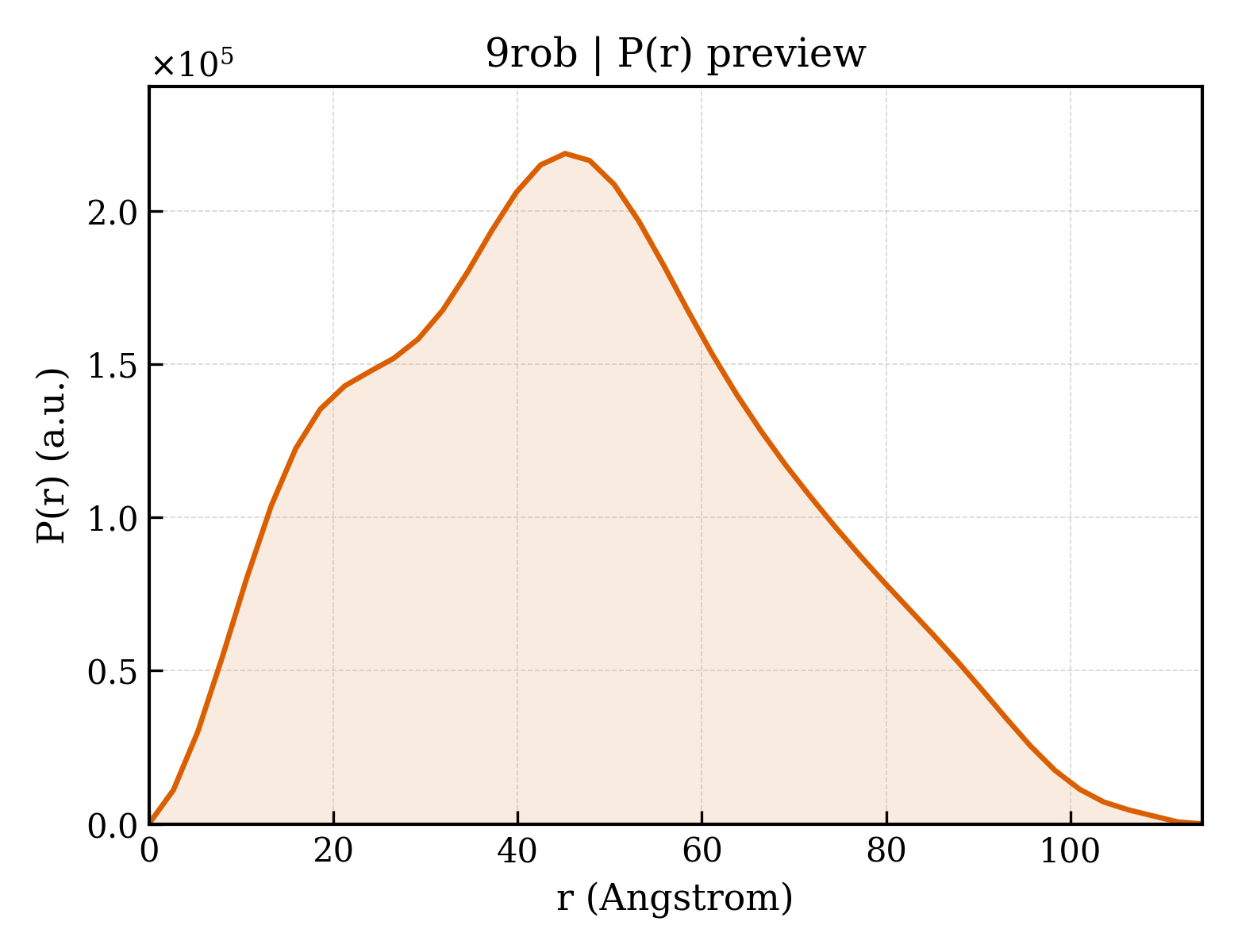

9rob__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	32.16 Å
Rg (electron density)	32.71 Å
Total Rg	32.85 Å
Atom count	2463
Residues	298
Excluded volume	43633 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`9rob__assembly_1__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`9rob__assembly_2__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	B-cell receptor CD22
Molecular weight formula_weight	36660.3 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	4979

ETGDSSKWVFEHPETLYAWEGACVWIPCTYRALDGDLESFILFHNPEYNKATSKFDGTRLYESTKDGKVPSEQKRVQFLGDKNKNCTLSIHPVHLADSGQLGLRMESKTEKWMERIHLAVSERPFPPHIQLPPEIQESQEVTLTCLLAFSCYGYPIQLQWLLEGVPMRQAAVTSTSLTIKSVFTRSELKFSPQWSHHGKIVTCQLQDADGKFLSADTVQLNVKHTPKLEIKVTPSDAIVREGDSVTMTCEVSSSNPEYTTVSWLKDGTSLKKQNTFTLNLREVTKDQSGKYCCQVSNDVGPGRSEEVFLQVQYAGGTKHHHHHH

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Homo sapiens

Entity 2 Entity 2 branched

Description description	beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	586.5 kDa
Source method src_method	man
Copy count entity_count	2

Entity 3 Entity 3 non-polymer

Description description	;(2R,4S,5R,6R)-5-acetamido-2-[[2,3-bis(chloranyl)phenyl]methoxy]-6-[(1R,2R)-1,2-bis(oxidanyl)-3-[(4-phenylphenyl)carbonylamino]propyl]-4-oxidanyl-oxane-2-carboxylic acid ;
Molecular weight formula_weight	647.5 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 4 Entity 4 non-polymer

Description description	GLYCEROL
Molecular weight formula_weight	92.1 kDa
Source method src_method	syn
Copy count entity_count	3

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	19

▶

Unit-cell length a length_a	91.621 Å
Unit-cell length b length_b	111.099 Å
Unit-cell length c length_c	164.282 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	16

Space group space_group	I 21 21 21
Space-group number int_tables_number	24
Crystal system crystal_system	—

Resolution resolution	2.700 Å
Low-resolution limit resolution_low	41.010 Å
R factor r_factor	0.2235
R_work r_work	0.2212
R_free r_free	0.2674

Crystal structure of human CD22 Ig domains 1-3 in complex with modified sialoside 1B
