9rul

CdmB methyltransferase involved in the anaerobic dehalogenation of haloalkanes soaked with dichloromethane

Method: X-RAY DIFFRACTION Dmax: 113.8 Å Quality: GOOD

SAXS Profile

SAXS profile for 9rul

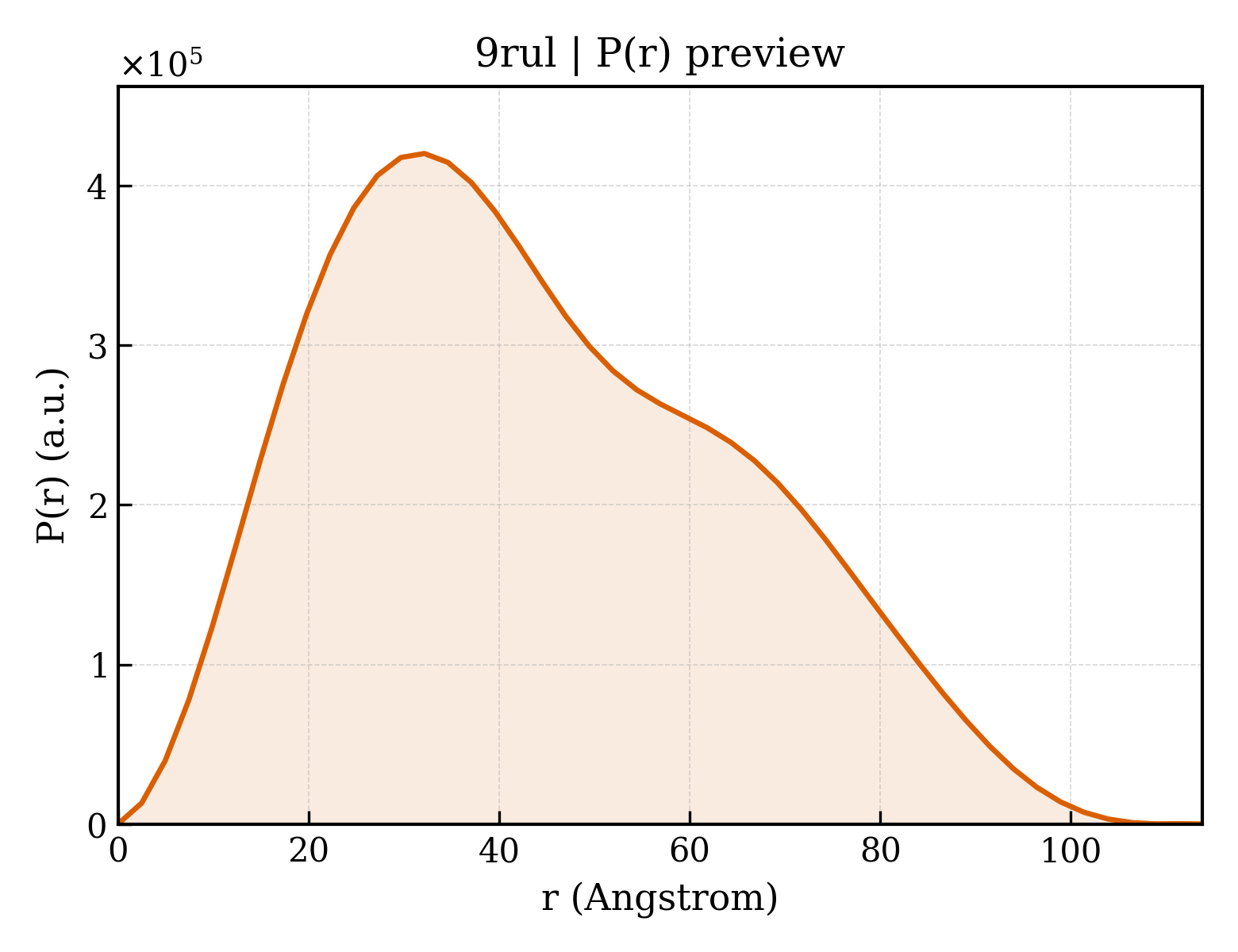

P(r) Distribution

P(r) distribution for 9rul
▼

1. Structure Basics

entry_id9rul
deposition_date2025-07-04
titleCdmB methyltransferase involved in the anaerobic dehalogenation of haloalkanes soaked with dichloromethane
keywordsChloromethane conversion, acetogenesis, anaerobic bacteria, dehalogenation, methyl-transfer, dichloromethane, TRANSFERASE; TRANSFERASE
methodX-RAY DIFFRACTION
▼

Download Data

▼

2. SAXS Parameters (CRYSOL)

rg_guinier34.25 Å
rg_electron34.00 Å
i0277753000.00
molecular_weight92141.0 kDa
excluded_volume90303 ų
envelope_volume150930 ų
shell_volume37536 ų
envelope_diameter112.7 Å
shell_rg39.86 Å
envelope_rg34.03 Å
shape_rg33.99 Å
total_rg34.33 Å
total_atoms6973
n_residues838
n_harmonics20
q_range— – 0.5000 Å−1
n_points101
shell_typedirectional
solvent_density0.3340 e/ų
contrast_shell0.0300 e/ų
crysol_version4.1.3
▼

3. P(r) Analysis (GNOM)

dmax113.8 Å
rg_real34.40 Å
rg_real_error0.78 Å
i0_real2.7780e+08
i0_real_error4.2060e+06
rg_reciprocal34.31 Å
i0_reciprocal277700000.0000
total_estimate0.8626
solution_quality GOOD a GOOD solution
n_peaks2
r_peak_primary32.1 Å
skewness0.391
kurtosis-0.637
angular_range— – 0.2300 Å−1
current_alpha0.0000
highest_alpha28090000.0000
n_real_points47
gnom_version4.1.3
quality_criteria AN1: 0.000; Oscil: 0.801; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.901; Smooth: 0.904
▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (12)

▶

6. Citations (1)

▶

7. Files & Curves (10)
