Ternary structure of 14-3-3s, CRAF V263A NS mutant phosphopeptide (pS259), and compound 23 (1083848)

entry_id	9s2n
deposition_date	2025-07-21
title	Ternary structure of 14-3-3s, CRAF V263A NS mutant phosphopeptide (pS259), and compound 23 (1083848)
keywords	PPI, 14-3-3, molecular glue, CRAF, PEPTIDE BINDING PROTEIN; PEPTIDE BINDING PROTEIN
method	X-RAY DIFFRACTION

rg_guinier	27.43 Å
rg_electron	26.76 Å
i0	104632000.00
molecular_weight	52270.0 kDa
excluded_volume	49577 ų
envelope_volume	88292 ų
shell_volume	27577 ų
envelope_diameter	86.3 Å
shell_rg	34.14 Å
envelope_rg	26.34 Å
shape_rg	26.76 Å
total_rg	27.34 Å
total_atoms	3906
n_residues	488
n_harmonics	20
q_range	— – 0.5000 Å−1
n_points	101
shell_type	directional
solvent_density	0.3340 e/ų
contrast_shell	0.0300 e/ų
crysol_version	4.1.3

dmax	85.1 Å
rg_real	27.38 Å
rg_real_error	0.50 Å
i0_real	1.0460e+08
i0_real_error	1.3760e+06
rg_reciprocal	27.40 Å
i0_reciprocal	104600000.0000
total_estimate	0.9133
solution_quality	EXCELLENT a EXCELLENT solution
n_peaks	0
r_peak_primary	— Å
skewness	0.193
kurtosis	-0.690
angular_range	— – 0.2900 Å−1
current_alpha	0.0000
highest_alpha	13330000.0000
n_real_points	59
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.969; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.988; Smooth: 0.972

Unit Cell

length_a	61.026 Å
length_b	89.368 Å
length_c	117.851 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	8

Symmetry

space_group	P 2 21 21
int_tables_number	18
crystal_system	—

Refinement

resolution	1.850 Å
resolution_low	54.250 Å
r_factor	—
r_work	0.2090
r_free	0.2386

Diffraction

temperature

100.0 K

Files (7)

• pr_distribution /app/data/pr_computation/s2/9s2n/pr_distribution.json
• pr_output /app/data/pr_computation/s2/9s2n/9s2n.pr.out

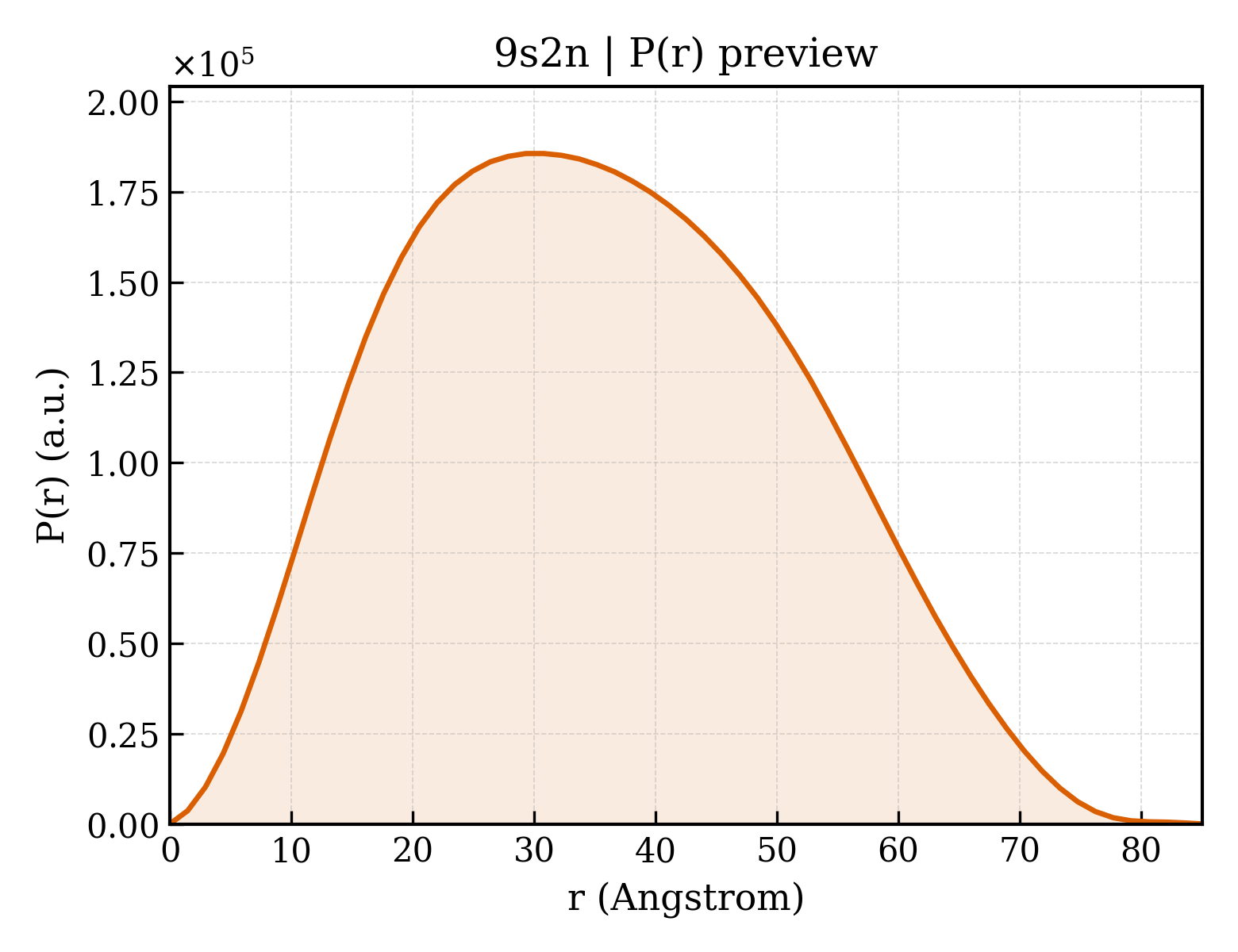

• pr_plot /app/data/visualization/pr_computation/s2/9s2n/9s2n_pr_distribution.png
• saxs_curve_dat /app/data/saxs_computation/s2/9s2n/9s2n.dat
• saxs_fit /app/data/saxs_computation/s2/9s2n/9s2n.fit
• saxs_log /app/data/saxs_computation/s2/9s2n/9s2n.log
• saxs_plot /app/data/visualization/saxs_computation/s2/9s2n/9s2n_saxs_profile.png

Curves (3)

fit	/app/data/saxs_computation/s2/9s2n/9s2n.fit
pddf	/app/data/pr_computation/s2/9s2n/9s2n.pr.out
profile	/app/data/saxs_computation/s2/9s2n/9s2n.dat
