9s4c
diFe-Sulerythin_E126A reduced

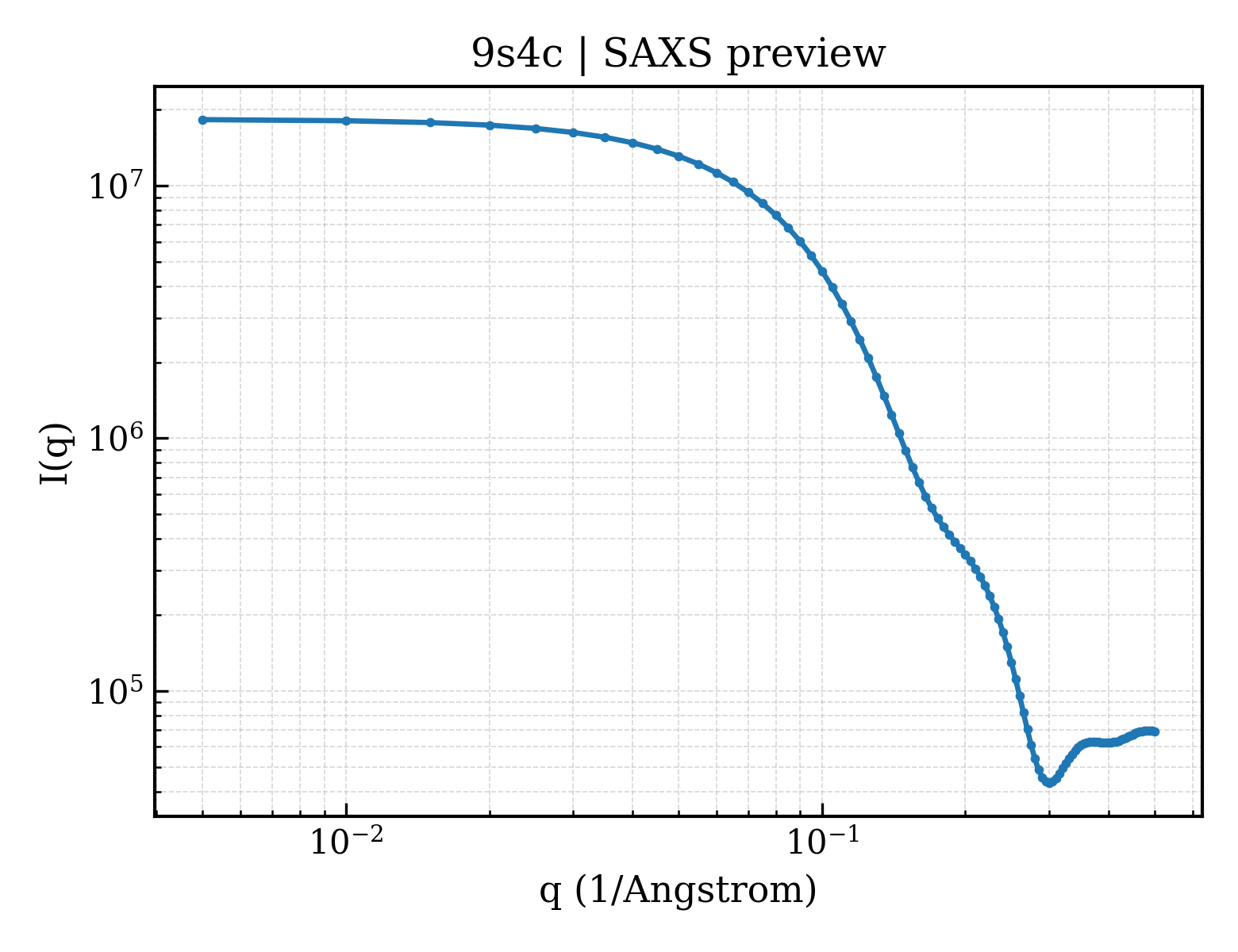

SAXS Profile
P(r) Distribution
1. Structure Basics
| entry_id | 9s4c |
| deposition_date | 2025-07-28 |
| last_revision | 2026-06-10 |
| title | diFe-Sulerythin_E126A reduced |
| keywords | dioxygen activation, four-helix bundle, diiron, diferric-peroxo ligand, OXIDOREDUCTASE; OXIDOREDUCTASE |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 20.06 Å |
| rg_electron | 19.20 Å |
| i0 | 18319600.00 |
| molecular_weight | 32037.0 kDa |
| excluded_volume | 39810 ų |
| envelope_volume | 45067 ų |
| shell_volume | 19552 ų |
| envelope_diameter | 66.9 Å |
| shell_rg | 25.54 Å |
| envelope_rg | 19.53 Å |
| shape_rg | 19.18 Å |
| total_rg | 20.08 Å |
| total_atoms | 2246 |
| n_residues | 286 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 64.7 Å |
| rg_real | 19.96 Å |
| rg_real_error | 0.32 Å |
| i0_real | 1.8320e+07 |
| i0_real_error | 2.0850e+05 |
| rg_reciprocal | 19.98 Å |
| i0_reciprocal | 18320000.0000 |
| total_estimate | 0.8985 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 24.0 Å |
| skewness | 0.143 |
| kurtosis | -0.570 |
| angular_range | — – 0.3950 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 6708000.0000 |
| n_real_points | 71 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.894; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 1.000; Smooth: 0.994 |
