9s5g
Temporizin-1 NMR analysis

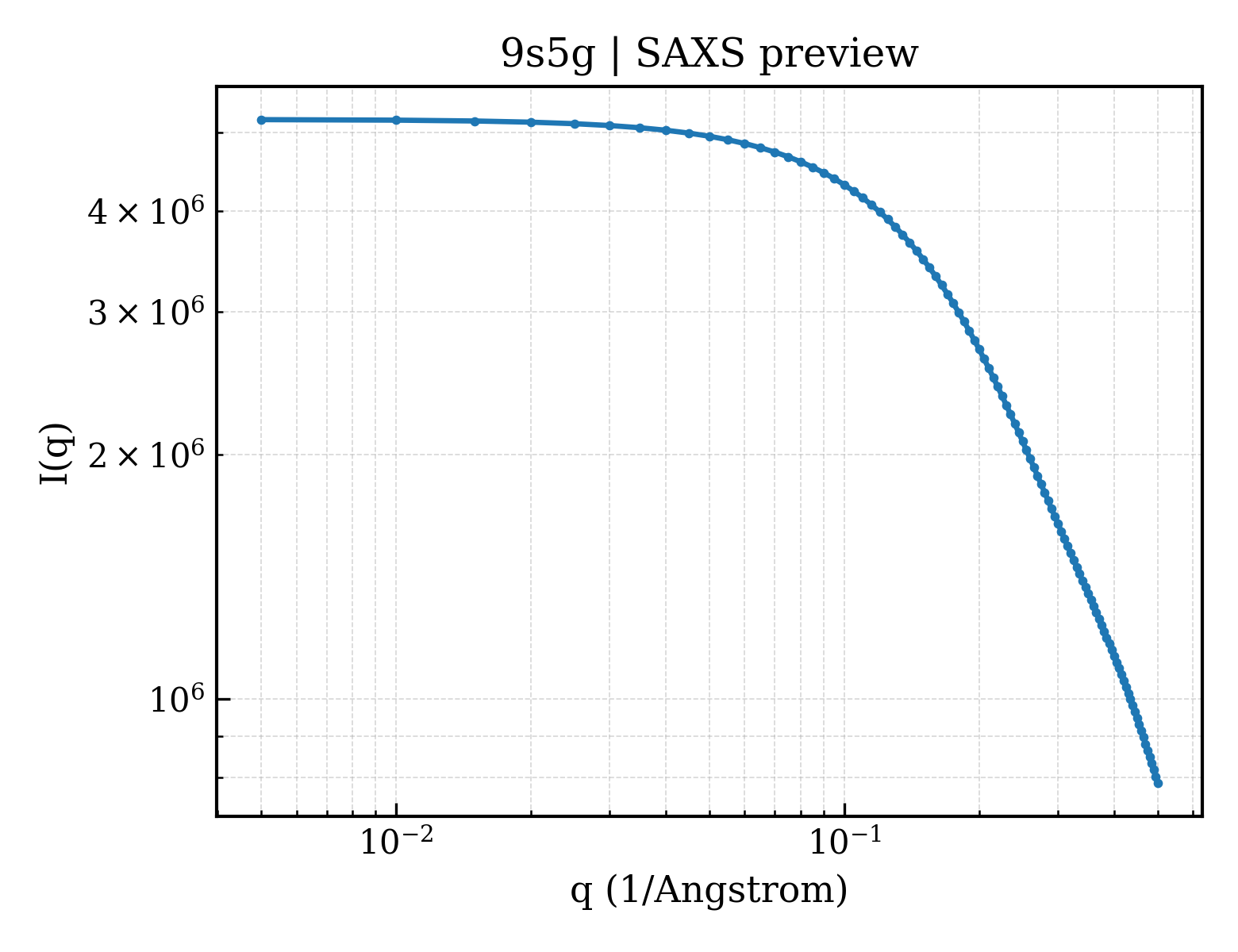

SAXS Profile

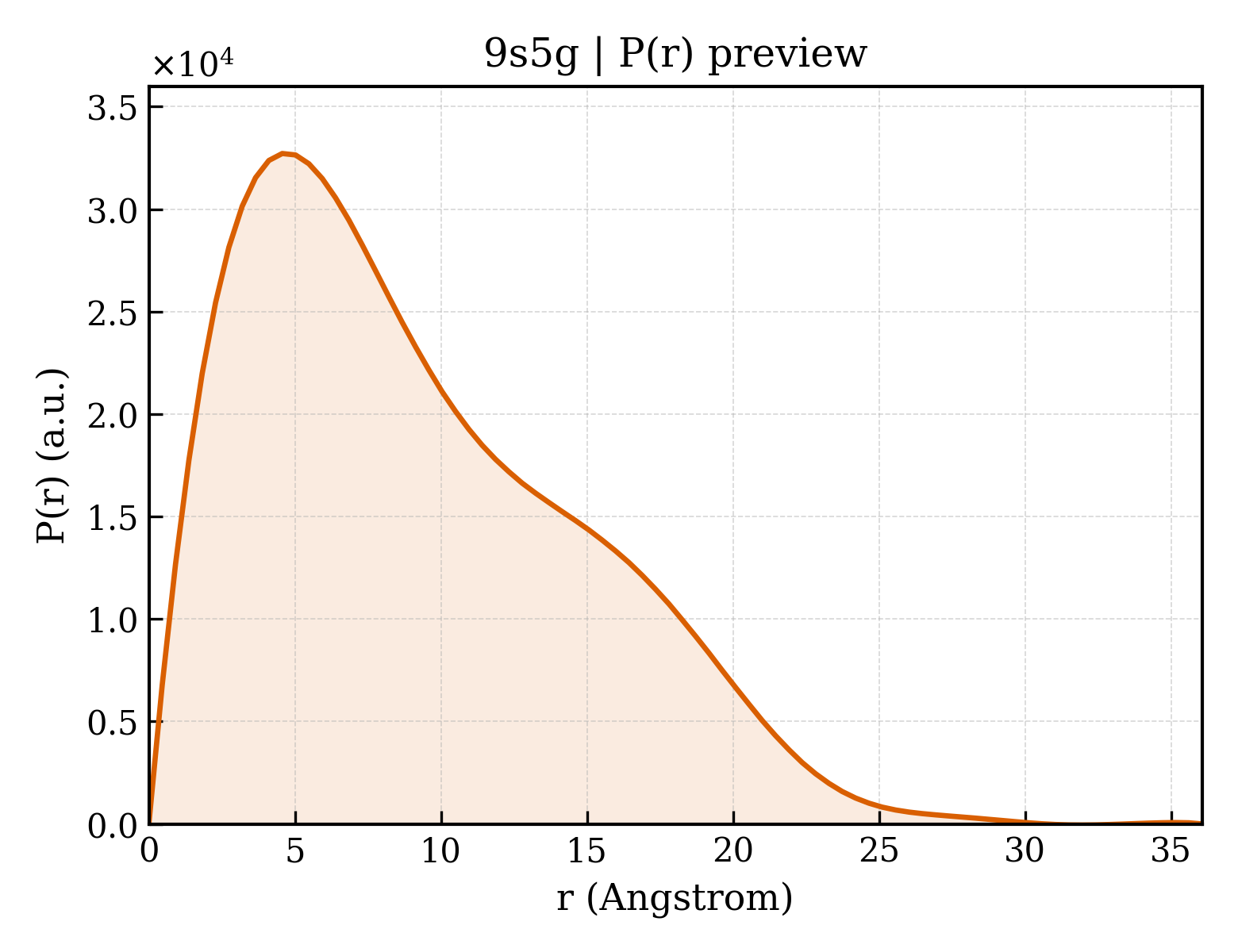

P(r) Distribution
1. Structure Basics
| entry_id | 9s5g |
| deposition_date | 2025-07-29 |
| title | Temporizin-1 NMR analysis |
| keywords | hybrid antimicrobial peptide temporizin NMR structure, ANTIMICROBIAL PROTEIN; ANTIMICROBIAL PROTEIN |
| method | SOLUTION NMR |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 7.34 Å |
| rg_electron | 8.58 Å |
| i0 | 5186990.00 |
| molecular_weight | 26780.0 kDa |
| excluded_volume | 36916 ų |
| envelope_volume | 5769 ų |
| shell_volume | 5303 ų |
| envelope_diameter | 36.9 Å |
| shell_rg | 14.90 Å |
| envelope_rg | 11.21 Å |
| shape_rg | 8.51 Å |
| total_rg | 9.60 Å |
| total_atoms | 4035 |
| n_residues | 195 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 36.1 Å |
| rg_real | 7.60 Å |
| rg_real_error | 0.90 Å |
| i0_real | 5.1870e+06 |
| i0_real_error | 6.5160e+04 |
| rg_reciprocal | 7.59 Å |
| i0_reciprocal | 5187000.0000 |
| total_estimate | 0.6185 |
| solution_quality | REASONABLE a REASONABLE solution |
| n_peaks | 2 |
| r_peak_primary | 4.6 Å |
| skewness | 0.664 |
| kurtosis | -0.245 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 809.4000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.013; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.000; Smooth: 0.998 |
