9s73

Complex of Equine Serum Albumin with Ampicillin

Method: X-RAY DIFFRACTION Dmax: 92.5 Å Quality: REASONABLE

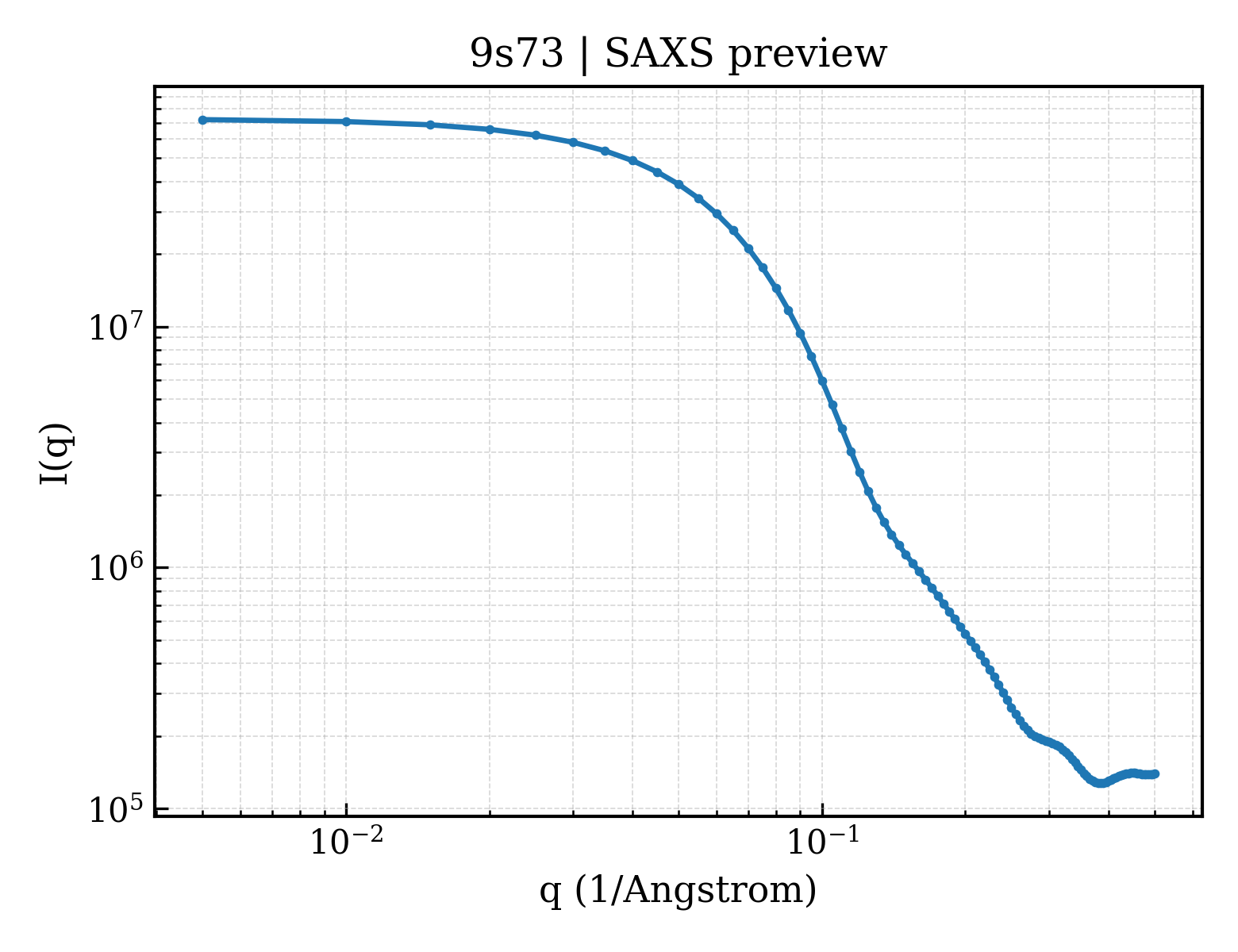

SAXS Profile

SAXS profile for 9s73

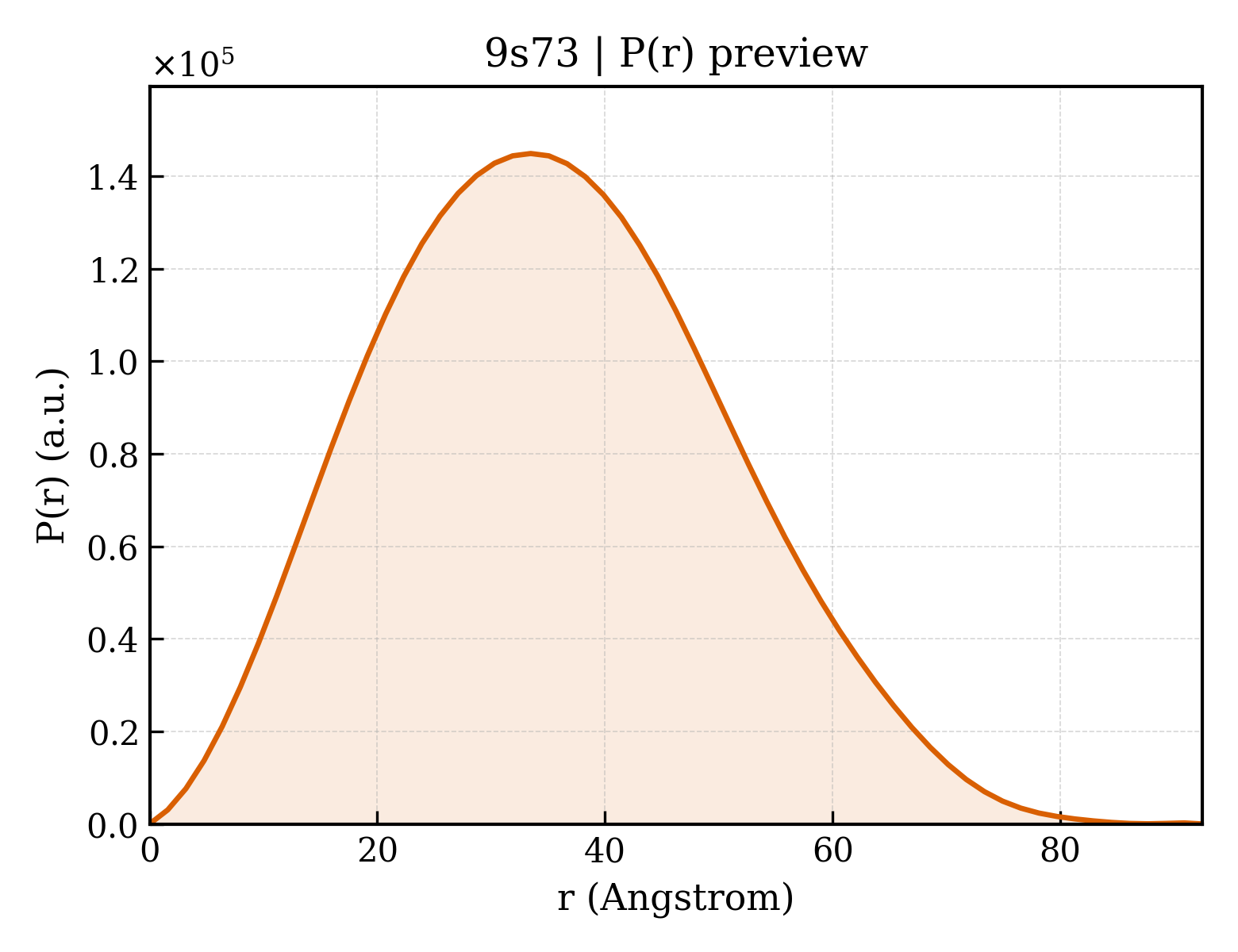

P(r) Distribution

P(r) distribution for 9s73

1. Structure Basics

entry_id9s73
deposition_date2025-08-02
last_revision2026-02-04
titleComplex of Equine Serum Albumin with Ampicillin
keywordsserum albumin, ampicillin, TRANSPORT PROTEIN; TRANSPORT PROTEIN
methodX-RAY DIFFRACTION

Download Data

2. SAXS Parameters (CRYSOL)

rg_guinier27.28
rg_electron26.32
i072556400.00
molecular_weight65947.0 kDa
excluded_volume82225 ų
envelope_volume100500 ų
shell_volume32080 ų
envelope_diameter98.4
shell_rg33.45
envelope_rg26.48
shape_rg26.31
total_rg27.06
total_atoms4621
n_residues579
n_harmonics20
q_range— – 0.5000 −1
n_points101
shell_typedirectional
solvent_density0.3340 e/ų
contrast_shell0.0300 e/ų
crysol_version4.1.3

3. P(r) Analysis (GNOM)

dmax92.5
rg_real27.18
rg_real_error0.67
i0_real7.2560e+07
i0_real_error1.1930e+06
rg_reciprocal27.21
i0_reciprocal72560000.0000
total_estimate0.7156
solution_quality REASONABLE a REASONABLE solution
n_peaks2
r_peak_primary33.5
skewness0.239
kurtosis-0.411
angular_range— – 0.2900 −1
current_alpha0.0000
highest_alpha11370000.0000
n_real_points59
gnom_version4.1.3
quality_criteria AN1: 0.000; Oscil: 0.835; Stabil: 1.000; Sysdev: 0.267; Positv: 1.000; Valcen: 0.999; Smooth: 0.995

4. Crystallography & Experiment

5. Entities & Polymer Info (6)

6. Citations (1)

7. Files & Curves (10)
