9s87

Crystal structure of the BRI1 ectodomain from Arabidopsis thaliana in complex with castasterone.

Method: X-RAY DIFFRACTION Dmax: 103.0 Å Quality: EXCELLENT

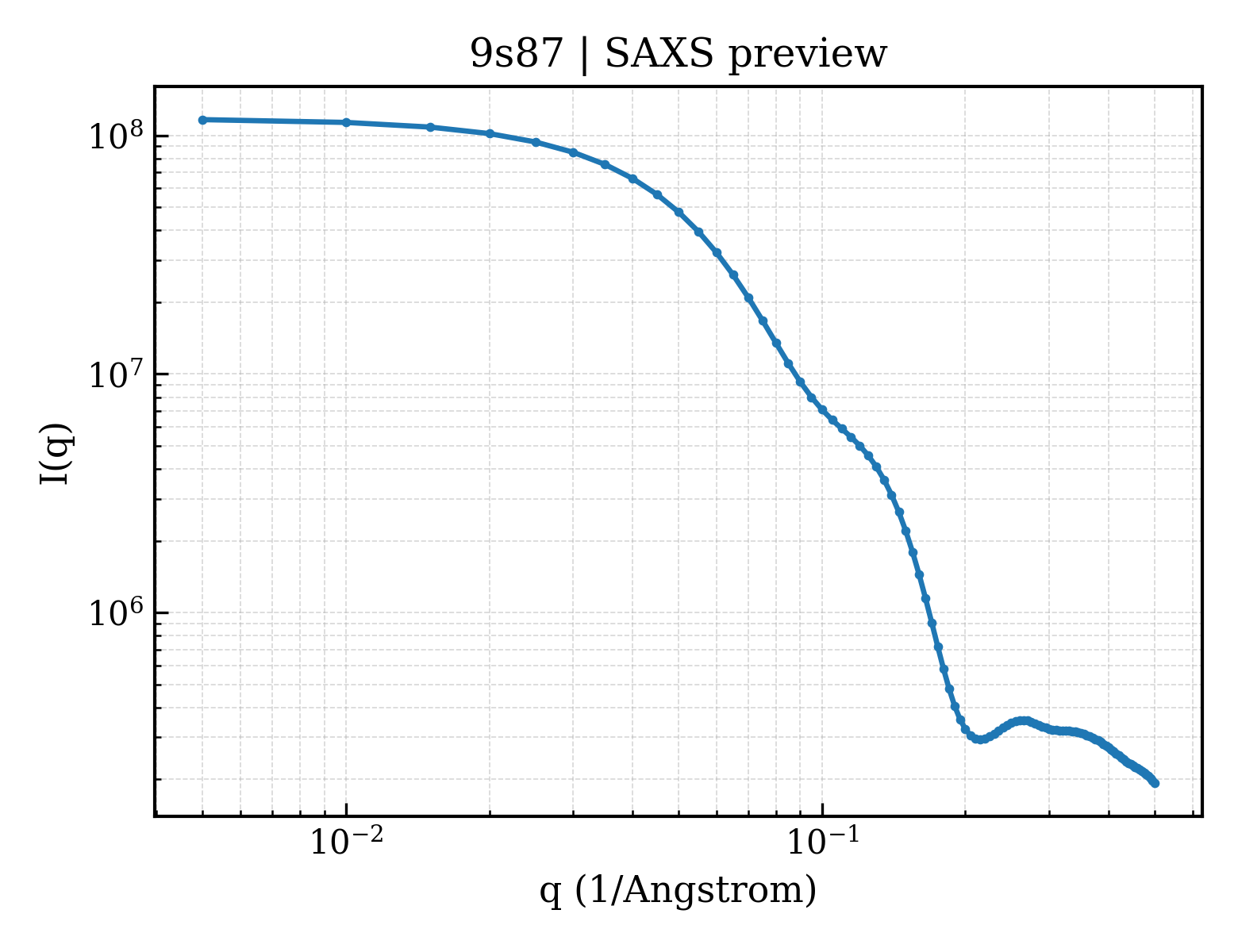

SAXS Profile

SAXS profile for 9s87

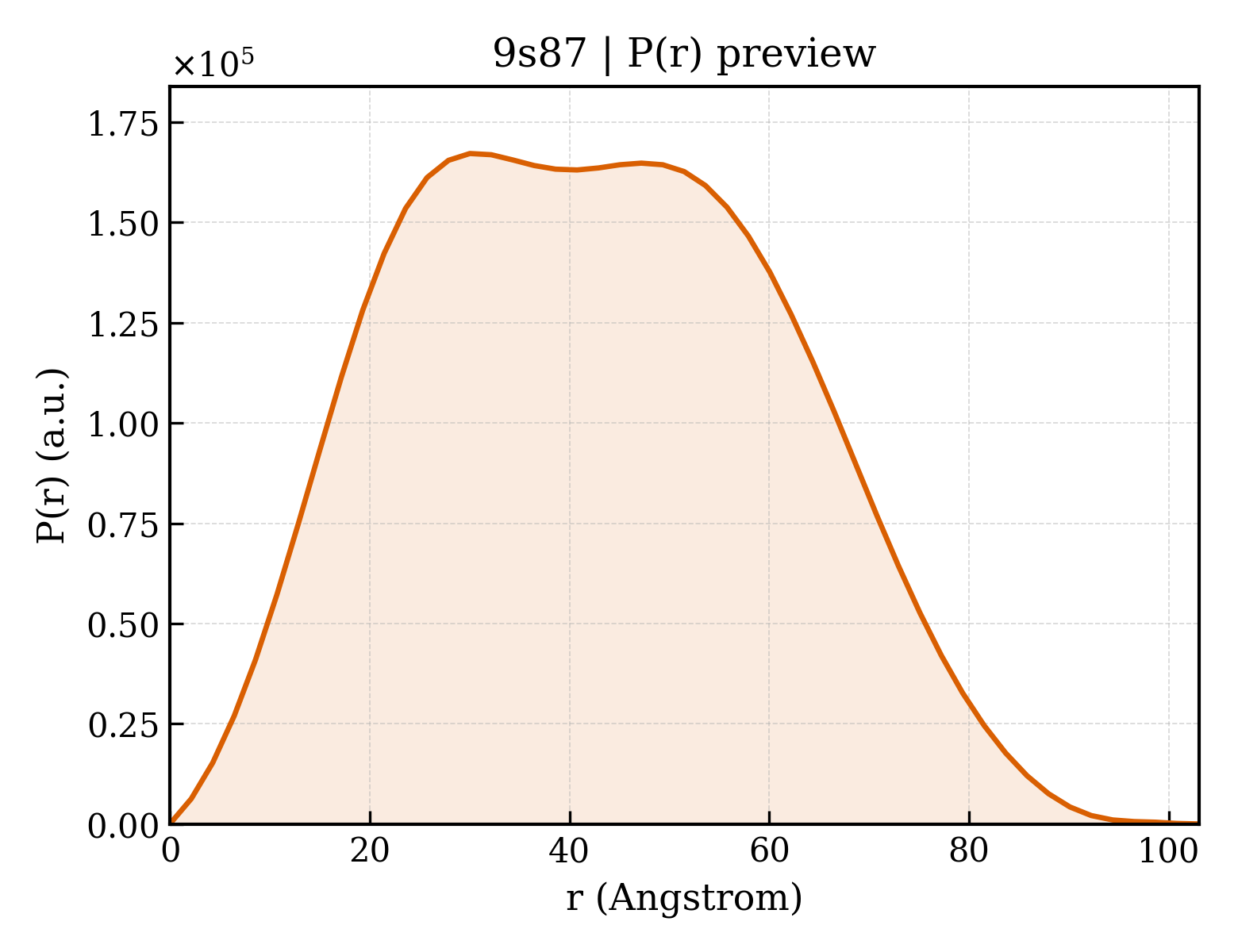

P(r) Distribution

P(r) distribution for 9s87

1. Structure Basics

entry_id9s87
deposition_date2025-08-05
last_revision2025-09-10
titleCrystal structure of the BRI1 ectodomain from Arabidopsis thaliana in complex with castasterone.
keywordsreceptor kinase, steroid receptor, brassinosteroids, leucine-rich repeat, MEMBRANE PROTEIN; MEMBRANE PROTEIN
methodX-RAY DIFFRACTION

Download Data

2. SAXS Parameters (CRYSOL)

rg_guinier32.85
rg_electron31.82
i0117476000.00
molecular_weight85275.0 kDa
excluded_volume106010 ų
envelope_volume137900 ų
shell_volume35715 ų
envelope_diameter106.5
shell_rg39.29
envelope_rg31.34
shape_rg31.73
total_rg32.75
total_atoms11713
n_residues742
n_harmonics20
q_range— – 0.5000 −1
n_points101
shell_typedirectional
solvent_density0.3340 e/ų
contrast_shell0.0300 e/ų
crysol_version4.1.3

3. P(r) Analysis (GNOM)

dmax103.0
rg_real32.76
rg_real_error0.87
i0_real1.1750e+08
i0_real_error1.8600e+06
rg_reciprocal32.80
i0_reciprocal117500000.0000
total_estimate0.9057
solution_quality EXCELLENT a EXCELLENT solution
n_peaks2
r_peak_primary30.0
skewness0.144
kurtosis-0.731
angular_range— – 0.2400 −1
current_alpha0.0000
highest_alpha35560000.0000
n_real_points49
gnom_version4.1.3
quality_criteria AN1: 0.000; Oscil: 0.942; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.988; Smooth: 0.955

4. Crystallography & Experiment

5. Entities & Polymer Info (13)

6. Citations (2)

7. Files & Curves (10)
