9s8s

Crystal structure of the BRI1 ectodomain from Arabidopsis thaliana in complex with typhasterol.

Method: X-RAY DIFFRACTION D_max: 99.9 Å Quality: EXCELLENT

SAXS Profile

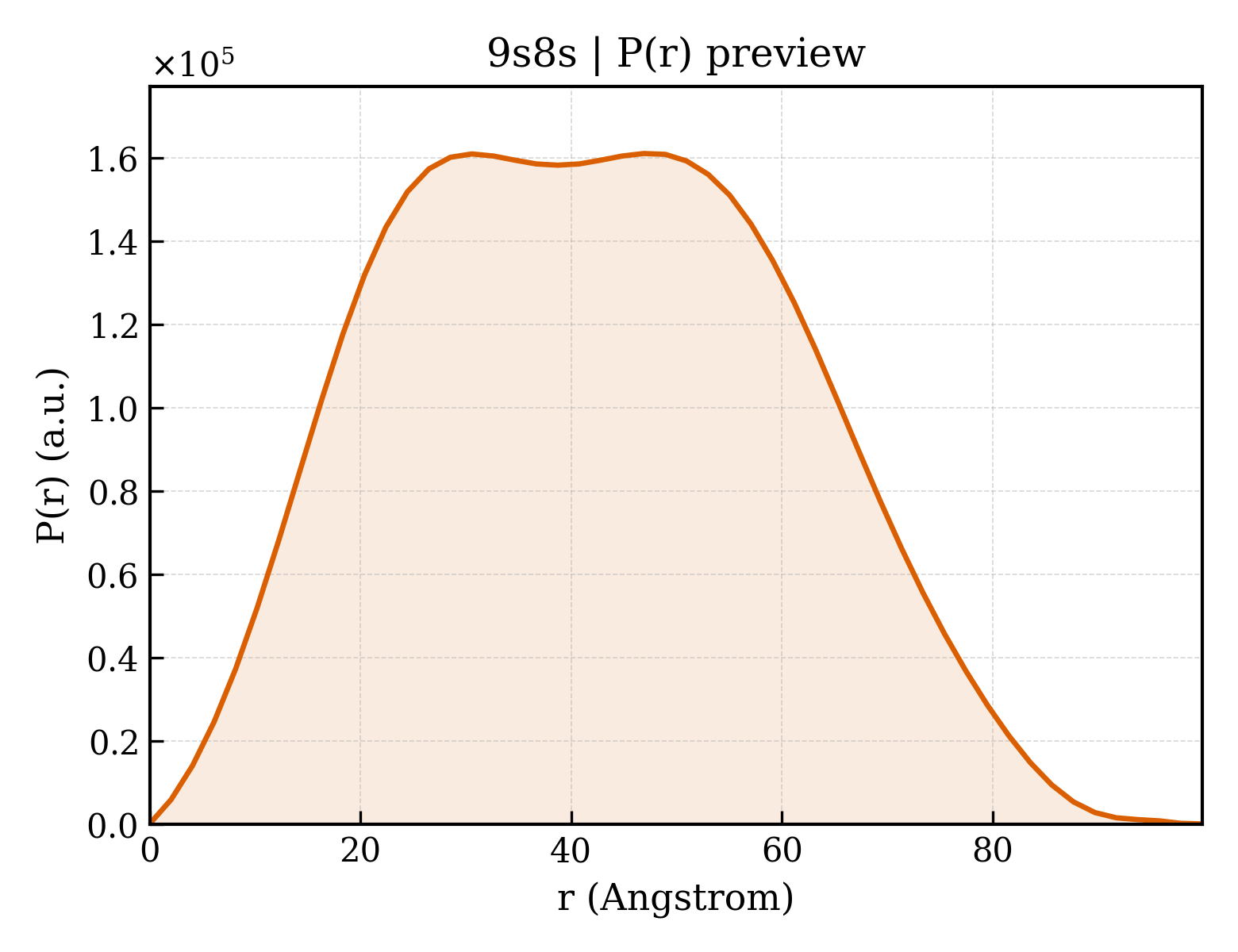

P(r) Distribution

▼

1. Structure Basics

entry_id	9s8s
deposition_date	2025-08-05
title	Crystal structure of the BRI1 ectodomain from Arabidopsis thaliana in complex with typhasterol.
keywords	receptor kinase, steroid receptor, brassinosteroids, leucine-rich repeat, MEMBRANE PROTEIN; MEMBRANE PROTEIN
method	X-RAY DIFFRACTION

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	32.52 Å
rg_electron	31.53 Å
i0	112546000.00
molecular_weight	83866.0 kDa
excluded_volume	104650 Å³
envelope_volume	136370 Å³
shell_volume	35882 Å³
envelope_diameter	103.4 Å
shell_rg	38.74 Å
envelope_rg	30.89 Å
shape_rg	31.47 Å
total_rg	32.34 Å
total_atoms	11603
n_residues	742
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	99.9 Å
rg_real	32.42 Å
rg_real_error	0.61 Å
i0_real	1.1250e+08
i0_real_error	1.5440e+06
rg_reciprocal	32.47 Å
i0_reciprocal	112600000.0000
total_estimate	0.9071
solution_quality	EXCELLENT a EXCELLENT solution
n_peaks	2
r_peak_primary	46.9 Å
skewness	0.134
kurtosis	-0.733
angular_range	— – 0.2450 Å⁻¹
current_alpha	0.0000
highest_alpha	34120000.0000
n_real_points	50
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.960; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.995; Smooth: 0.915

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (10)

Entity 1 polymer

description	Protein BRASSINOSTEROID INSENSITIVE 1
formula_weight	86439.7 kDa
ec_number	2.7.10.1,2.7.11.1
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	A
atom_count	11667

MKTFSSFFLSVTTLFFFSFFSLSFQASPSQSLYREIHQLISFKDVLPDKNLLPDWSSNKNPCTFDGVTCRDDKVTSIDLSSKPLNVGFSAVSSSLLSLTGLESLFLSNSHINGSVSGFKCSASLTSLDLSRNSLSGPVTTLTSLGSCSGLKFLNVSSNTLDFPGKVSGGLKLNSLEVLDLSANSISGANVVGWVLSDGCGELKHLAISGNKISGDVDVSRCVNLEFLDVSSNNFSTGIPFLGDCSALQHLDISGNKLSGDFSRAISTCTELKLLNISSNQFVGPIPPLPLKSLQYLSLAENKFTGEIPDFLSGACDTLTGLDLSGNHFYGAVPPFFGSCSLLESLALSSNNFSGELPMDTLLKMRGLKVLDLSFNEFSGELPESLTNLSASLLTLDLSSNNFSGPILPNLCQNPKNTLQELYLQNNGFTGKIPPTLSNCSELVSLHLSFNYLSGTIPSSLGSLSKLRDLKLWLNMLEGEIPQELMYVKTLETLILDFNDLTGEIPSGLSNCTNLNWISLSNNRLTGEIPKWIGRLENLAILKLSNNSFSGNIPAELGDCRSLIWLDLNTNLFNGTIPAAMFKQSGKIAANFIAGKRYVYIKNDGMKKECHGAGNLLEFQGIRSEQLNRLSTRNPCNITSRVYGGHTSPTFDNNGSMMFLDMSYNMLSGYIPKEIGSMPYLFILNLGHNDISGSIPDEVGDLRGLNILDLSSNKLDGRIPQAMSALTMLTEIDLSNNNLSGPIPEMGQFETFPPAKFLNNPGLCGYPLPRCDPSNADGYAHHQRSHGRRAAAENLYFQ

Source

organism	Arabidopsis thaliana
common_name	thale cress
ncbi_taxonomy_id	3702
host_organism	Trichoplusia ni

Entity 2 branched

description	alpha-L-fucopyranose-(1-6)-2-acetamido-2-deoxy-beta-D-glucopyranose
formula_weight	367.3 kDa
src_method	man
entity_count	1

Entity 3 branched

description	;alpha-D-mannopyranose-(1-3)-beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose ;
formula_weight	748.7 kDa
src_method	man
entity_count	1

Entity 4 branched

description	beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
formula_weight	586.5 kDa
src_method	man
entity_count	2

Entity 5 branched

description	2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
formula_weight	424.4 kDa
src_method	man
entity_count	2

Entity 6 non-polymer

description	Typhasterol
formula_weight	448.7 kDa
src_method	syn
entity_count	1

Entity 7 non-polymer

description	SULFATE ION
formula_weight	96.1 kDa
src_method	syn
entity_count	2

Entity 8 non-polymer

description	1,2-ETHANEDIOL
formula_weight	62.1 kDa
src_method	syn
entity_count	1

Entity 9 non-polymer

description	2-acetamido-2-deoxy-beta-D-glucopyranose
formula_weight	221.2 kDa
src_method	syn
entity_count	1

Entity 10 water

description	water
formula_weight	18.0 kDa
src_method	nat
entity_count	64

▶

6. Citations (1)

▶

length_a	174.173 Å
length_b	66.652 Å
length_c	119.705 Å
angle_alpha	90.00 °
angle_beta	121.67 °
angle_gamma	90.00 °
z_pdb	4

space_group	C 1 2 1
int_tables_number	5
crystal_system	monoclinic

resolution	2.650 Å
resolution_low	47.870 Å
r_factor	0.2494
r_work	0.2480
r_free	0.2752
