9s8v

Crystal structure of the BRI1 ectodomain from Arabidopsis thaliana in complex with 24-epibrassinolide.

Method: X-RAY DIFFRACTION Dmax: 98.2 Å Quality: EXCELLENT

SAXS Profile

SAXS profile for 9s8v

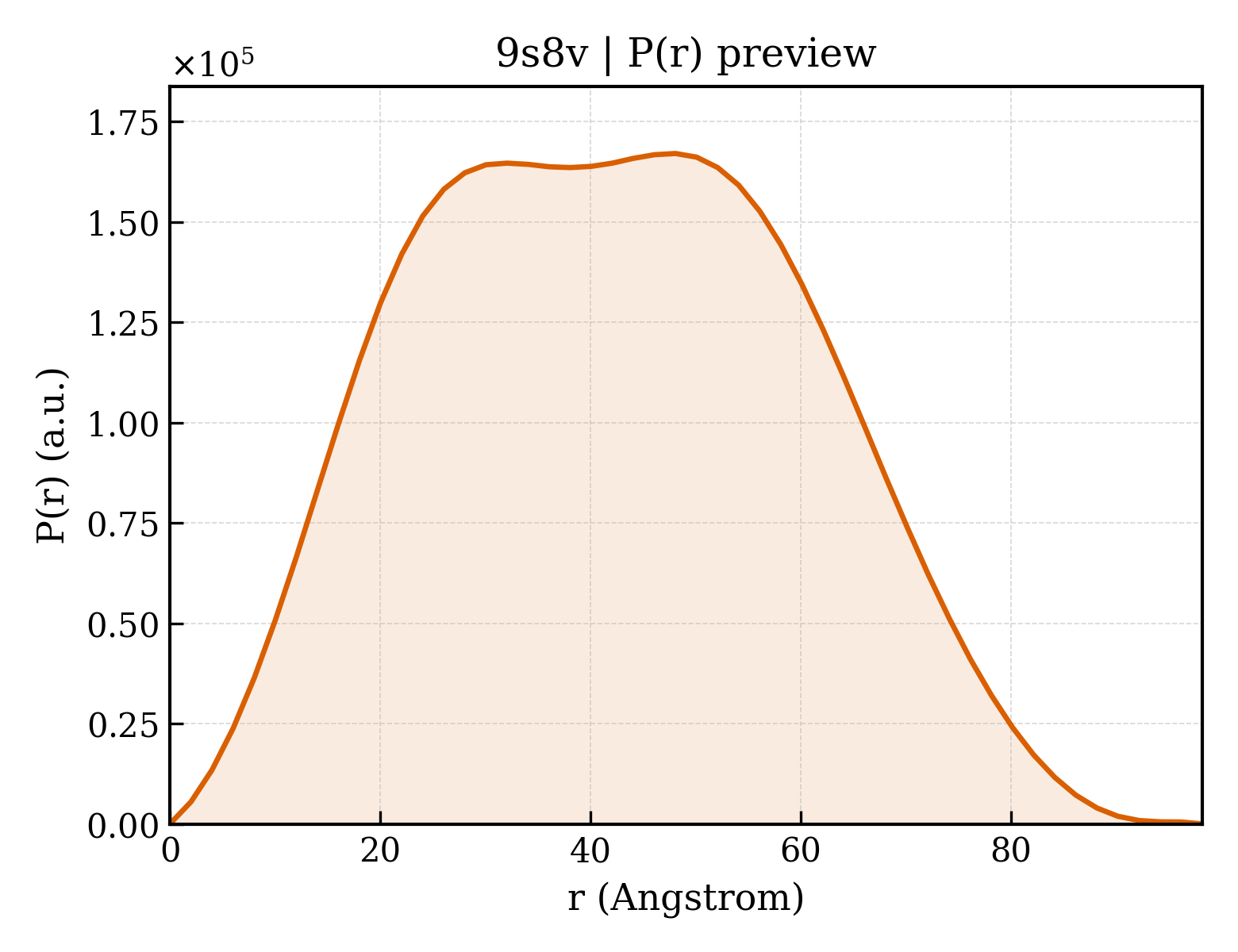

P(r) Distribution

P(r) distribution for 9s8v
▼

1. Structure Basics

entry_id9s8v
deposition_date2025-08-05
titleCrystal structure of the BRI1 ectodomain from Arabidopsis thaliana in complex with 24-epibrassinolide.
keywordsreceptor kinase, steroid receptor, brassinosteroids, leucine-rich repeat, MEMBRANE PROTEIN; MEMBRANE PROTEIN
methodX-RAY DIFFRACTION
▼

Download Data

▼

2. SAXS Parameters (CRYSOL)

rg_guinier32.48 Å
rg_electron31.47 Å
i0114686000.00
molecular_weight85467.0 kDa
excluded_volume107120 ų
envelope_volume139100 ų
shell_volume36575 ų
envelope_diameter102.8 Å
shell_rg38.78 Å
envelope_rg30.86 Å
shape_rg31.40 Å
total_rg32.31 Å
total_atoms11918
n_residues742
n_harmonics20
q_range— – 0.5000 Å−1
n_points101
shell_typedirectional
solvent_density0.3340 e/ų
contrast_shell0.0300 e/ų
crysol_version4.1.3
▼

3. P(r) Analysis (GNOM)

dmax98.2 Å
rg_real32.36 Å
rg_real_error0.56 Å
i0_real1.1470e+08
i0_real_error1.8050e+06
rg_reciprocal32.42 Å
i0_reciprocal114700000.0000
total_estimate0.9048
solution_quality EXCELLENT a EXCELLENT solution
n_peaks2
r_peak_primary48.1 Å
skewness0.114
kurtosis-0.736
angular_range— – 0.2450 Å−1
current_alpha0.0000
highest_alpha33380000.0000
n_real_points50
gnom_version4.1.3
quality_criteria AN1: 0.000; Oscil: 0.971; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.999; Smooth: 0.847
▶
