9s8z

Crystal structure of the BRI1 ectodomain from Arabidopsis thaliana in complex with 28-homobrassinolide.

Method: X-RAY DIFFRACTION D_max: 98.7 Å Quality: EXCELLENT

SAXS Profile

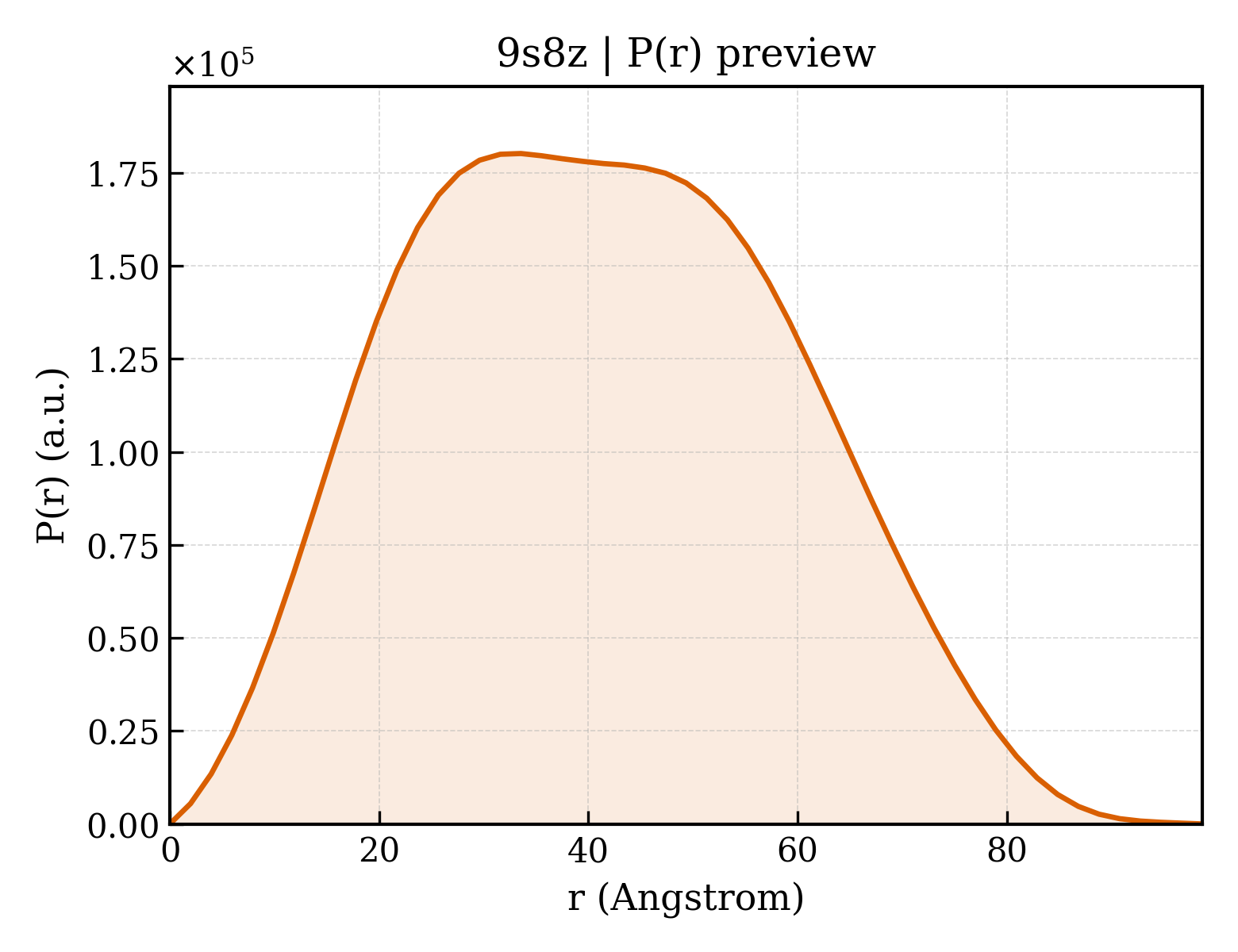

P(r) Distribution

▼

1. Structure Basics

entry_id	9s8z
deposition_date	2025-08-05
title	Crystal structure of the BRI1 ectodomain from Arabidopsis thaliana in complex with 28-homobrassinolide.
keywords	receptor kinase, steroid receptor, brassinosteroids, leucine-rich repeat, MEMBRANE PROTEIN; MEMBRANE PROTEIN
method	X-RAY DIFFRACTION

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	31.82 Å
rg_electron	30.87 Å
i0	118395000.00
molecular_weight	86244.0 kDa
excluded_volume	107870 Å³
envelope_volume	136820 Å³
shell_volume	36960 Å³
envelope_diameter	104.2 Å
shell_rg	37.84 Å
envelope_rg	30.45 Å
shape_rg	30.82 Å
total_rg	31.65 Å
total_atoms	11996
n_residues	743
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	98.7 Å
rg_real	31.72 Å
rg_real_error	0.50 Å
i0_real	1.1840e+08
i0_real_error	1.7970e+06
rg_reciprocal	31.77 Å
i0_reciprocal	118400000.0000
total_estimate	0.9085
solution_quality	EXCELLENT a EXCELLENT solution
n_peaks	1
r_peak_primary	33.5 Å
skewness	0.153
kurtosis	-0.682
angular_range	— – 0.2500 Å⁻¹
current_alpha	0.0000
highest_alpha	34510000.0000
n_real_points	51
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.959; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 1.000; Smooth: 0.931

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (12)

Entity 1 polymer

description	Protein BRASSINOSTEROID INSENSITIVE 1
formula_weight	86439.7 kDa
ec_number	2.7.10.1,2.7.11.1
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	A
atom_count	12029

MKTFSSFFLSVTTLFFFSFFSLSFQASPSQSLYREIHQLISFKDVLPDKNLLPDWSSNKNPCTFDGVTCRDDKVTSIDLSSKPLNVGFSAVSSSLLSLTGLESLFLSNSHINGSVSGFKCSASLTSLDLSRNSLSGPVTTLTSLGSCSGLKFLNVSSNTLDFPGKVSGGLKLNSLEVLDLSANSISGANVVGWVLSDGCGELKHLAISGNKISGDVDVSRCVNLEFLDVSSNNFSTGIPFLGDCSALQHLDISGNKLSGDFSRAISTCTELKLLNISSNQFVGPIPPLPLKSLQYLSLAENKFTGEIPDFLSGACDTLTGLDLSGNHFYGAVPPFFGSCSLLESLALSSNNFSGELPMDTLLKMRGLKVLDLSFNEFSGELPESLTNLSASLLTLDLSSNNFSGPILPNLCQNPKNTLQELYLQNNGFTGKIPPTLSNCSELVSLHLSFNYLSGTIPSSLGSLSKLRDLKLWLNMLEGEIPQELMYVKTLETLILDFNDLTGEIPSGLSNCTNLNWISLSNNRLTGEIPKWIGRLENLAILKLSNNSFSGNIPAELGDCRSLIWLDLNTNLFNGTIPAAMFKQSGKIAANFIAGKRYVYIKNDGMKKECHGAGNLLEFQGIRSEQLNRLSTRNPCNITSRVYGGHTSPTFDNNGSMMFLDMSYNMLSGYIPKEIGSMPYLFILNLGHNDISGSIPDEVGDLRGLNILDLSSNKLDGRIPQAMSALTMLTEIDLSNNNLSGPIPEMGQFETFPPAKFLNNPGLCGYPLPRCDPSNADGYAHHQRSHGRRAAAENLYFQ

Source

organism	Arabidopsis thaliana
common_name	thale cress
ncbi_taxonomy_id	3702
host_organism	Trichoplusia ni

Entity 2 branched

description	;alpha-D-mannopyranose-(1-3)-beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose ;
formula_weight	748.7 kDa
src_method	man
entity_count	2

Entity 3 branched

description	2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
formula_weight	424.4 kDa
src_method	man
entity_count	3

Entity 4 branched

description	;alpha-D-mannopyranose-(1-3)-[alpha-D-mannopyranose-(1-6)]alpha-D-mannopyranose-(1-6)-[alpha-D-mannopyranose-(1-3)]beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose ;
formula_weight	1235.1 kDa
src_method	man
entity_count	1

Entity 5 branched

description	2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-[alpha-L-fucopyranose-(1-6)]2-acetamido-2-deoxy-beta-D-glucopyranose
formula_weight	570.5 kDa
src_method	man
entity_count	1

Entity 6 non-polymer

description	28-Homobrassinolide
formula_weight	494.7 kDa
src_method	man
entity_count	1

Entity 7 non-polymer

description	SULFATE ION
formula_weight	96.1 kDa
src_method	syn
entity_count	3

Entity 8 non-polymer

description	2-acetamido-2-deoxy-beta-D-glucopyranose
formula_weight	221.2 kDa
src_method	syn
entity_count	3

Entity 9 non-polymer

description	GLYCEROL
formula_weight	92.1 kDa
src_method	syn
entity_count	1

Entity 10 non-polymer

description	ACETATE ION
formula_weight	59.0 kDa
src_method	syn
entity_count	1

Entity 11 non-polymer

description	1,2-ETHANEDIOL
formula_weight	62.1 kDa
src_method	syn
entity_count	2

Entity 12 water

description	water
formula_weight	18.0 kDa
src_method	nat
entity_count	33

▶

6. Citations (2)

▶

length_a	174.077 Å
length_b	66.735 Å
length_c	121.604 Å
angle_alpha	90.00 °
angle_beta	121.95 °
angle_gamma	90.00 °
z_pdb	4

space_group	C 1 2 1
int_tables_number	5
crystal_system	monoclinic

resolution	2.350 Å
resolution_low	49.020 Å
r_factor	0.2312
r_work	0.2299
r_free	0.2559
