9shs
;Head to Head tau filament with the Alzheimer's fold ;

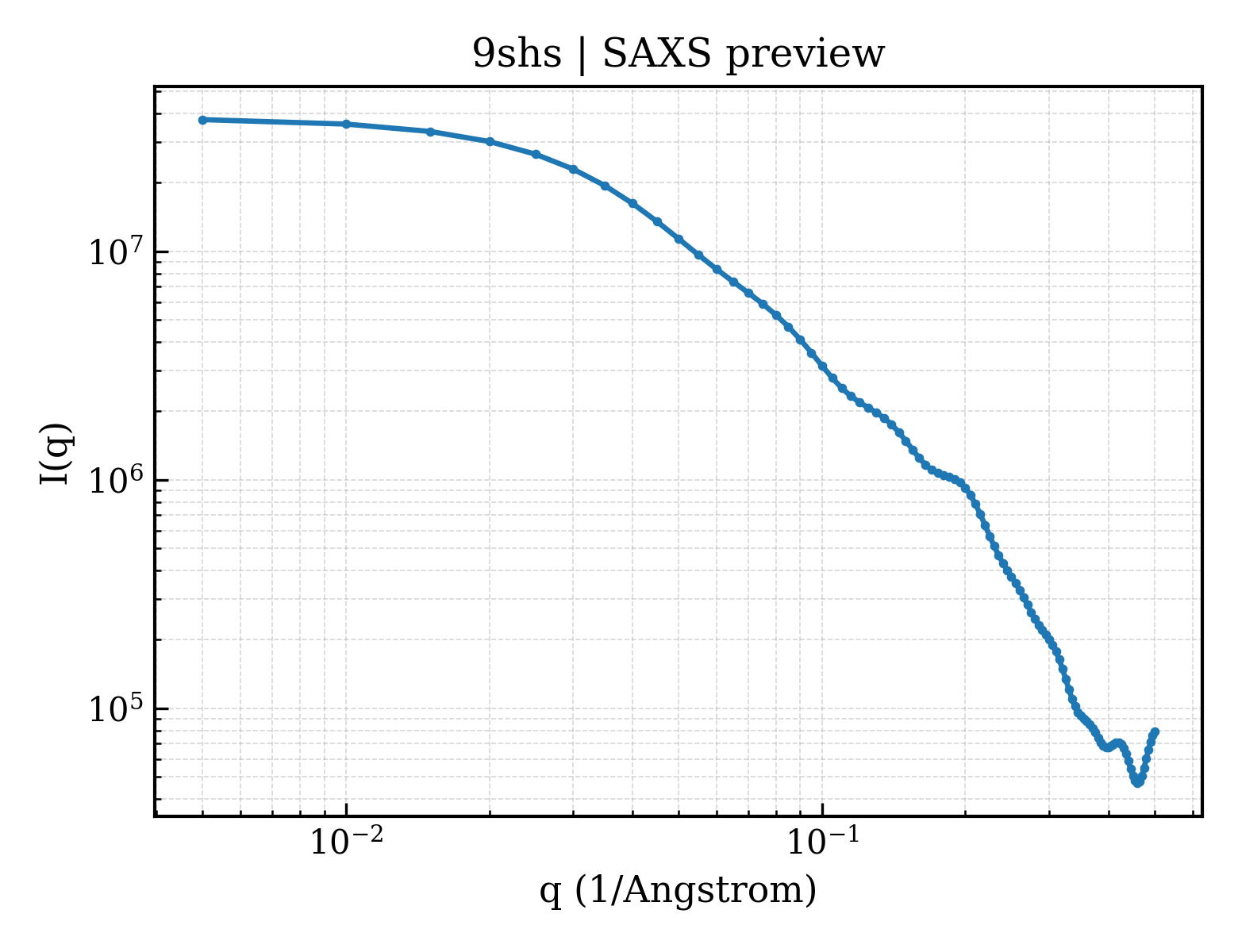

SAXS Profile

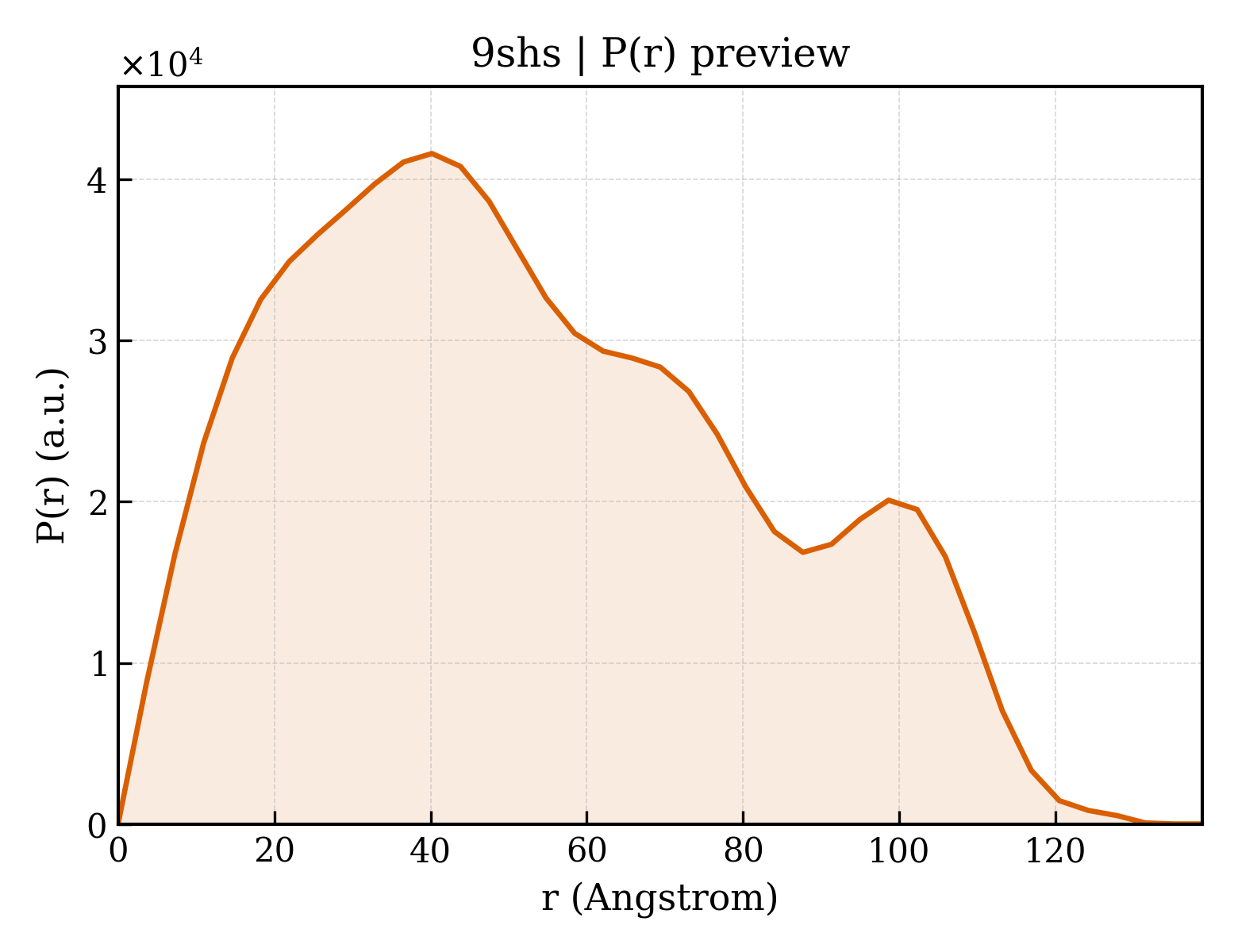

P(r) Distribution
1. Structure Basics
| entry_id | 9shs |
| deposition_date | 2025-08-27 |
| title | ;Head to Head tau filament with the Alzheimer's fold ; |
| keywords | ;TAU, HELICAL, FILAMENT, FIBRIL, AMYLOID, ALZHEIMER'S DISEASE, PAIRED HELICAL FILAMENT, PROTEIN FIBRIL ;; PROTEIN FIBRIL |
| method | ELECTRON MICROSCOPY |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 42.02 Å |
| rg_electron | 43.04 Å |
| i0 | 38209100.00 |
| molecular_weight | 49281.0 kDa |
| excluded_volume | 61946 ų |
| envelope_volume | 100110 ų |
| shell_volume | 22710 ų |
| envelope_diameter | 133.9 Å |
| shell_rg | 39.31 Å |
| envelope_rg | 41.94 Å |
| shape_rg | 42.99 Å |
| total_rg | 42.95 Å |
| total_atoms | 7074 |
| n_residues | 456 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 138.8 Å |
| rg_real | 42.43 Å |
| rg_real_error | 1.47 Å |
| i0_real | 3.8210e+07 |
| i0_real_error | 6.6520e+05 |
| rg_reciprocal | 42.02 Å |
| i0_reciprocal | 38190000.0000 |
| total_estimate | 0.7881 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 40.2 Å |
| skewness | 0.370 |
| kurtosis | -0.794 |
| angular_range | — – 0.1900 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 1343000.0000 |
| n_real_points | 39 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.653; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.550; Smooth: 0.733 |
