9smo

Crystal Structure of human exonuclease 1 (Exo1) with DNA and compound ART5537

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Exonuclease 1

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Monomer	Protein 1 DNA 2	;DNA (5'-D(CP(GS)PCPTPAPGPTPCPGPTPCPAP(TS))-3') ; × 1 ;DNA (5'-D(PAP(SC)PGPAPCPTPAPGPCP*(GS))-3') ; × 1 MAGNESIUM ION × 2 1-(4-chloranyl-2,7-naphthyridin-1-yl)-5-oxidanyl-3-[(1~{S})-1-phenylethyl]-2~{H}-pyrido[2,1-f][1,2,4]triazine-4,6-dione × 1 SODIUM ION × 2 water × 2	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	EXO1_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–352； UniProt 1–352

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9smo
Deposition date deposition_date	2025-09-08
Structure title title	Crystal Structure of human exonuclease 1 (Exo1) with DNA and compound ART5537
Keywords keywords	Exonuclease, HYDROLASE; HYDROLASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

9smo__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

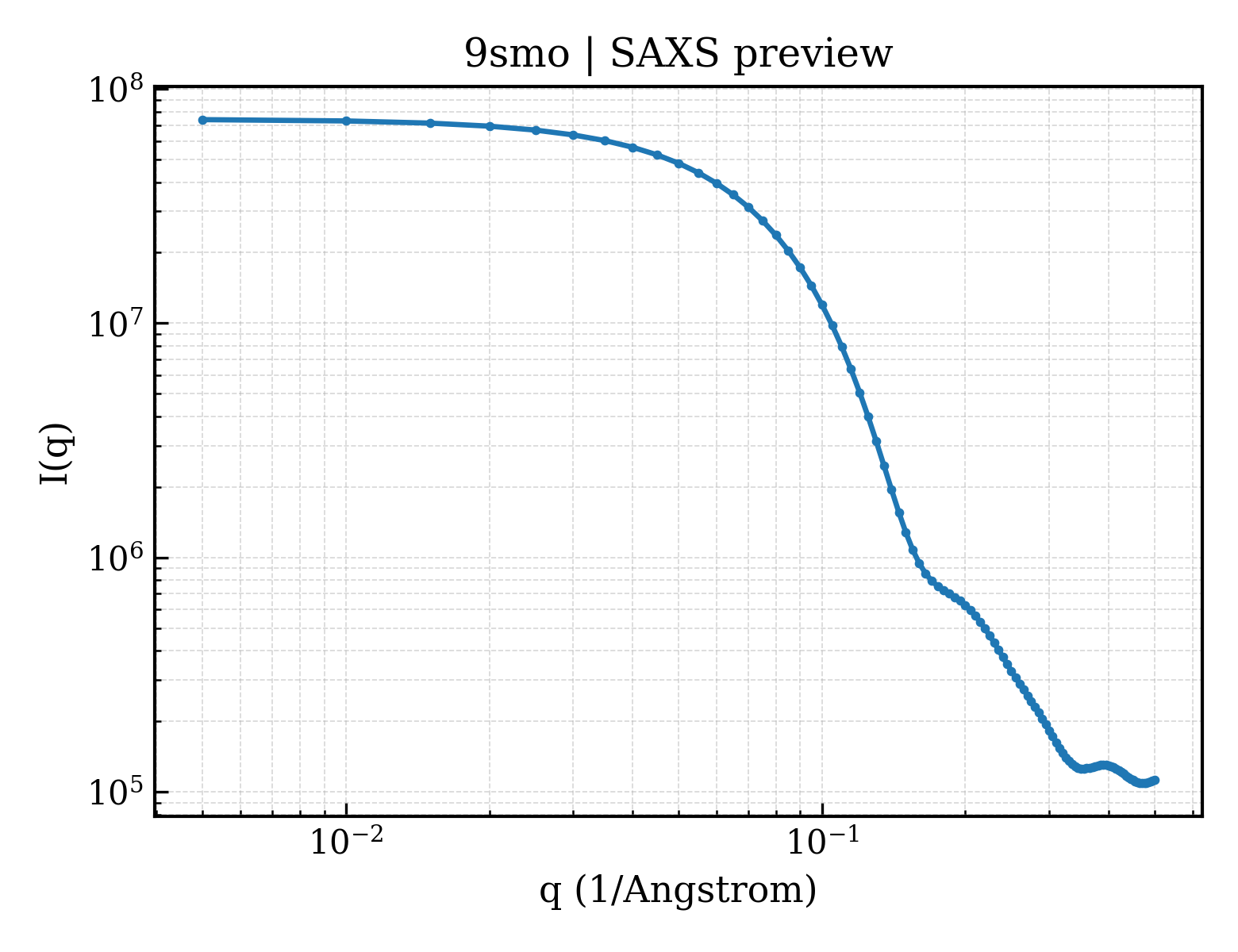

9smo__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

9smo__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	22.88 Å
Rg (electron density)	21.83 Å
Total Rg	22.77 Å
Atom count	3215
Residues	367
Excluded volume	56323 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`9smo__assembly_1__model_1`	trimeric （3）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (7)

Entity 1 Entity 1 polymer

Description description	Exonuclease 1
Molecular weight formula_weight	40354.8 kDa
EC 编号 ec_number	3.1.-.-
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	3265

MGIQGLLQFIKEASEPIHVRKYKGQVVAVDTYCWLHKGAIACAEKLAKGEPTDRYVGFCMKFVNMLLSHGIKPILVFDGCTLPSKKEVERSRRERRQANLLKGKQLLREGKVSEARECFTRSINITHAMAHKVIKAARSQGVDCLVAPYEADAQLAYLNKAGIVQAIITEDSDLLAFGCKKVILKMDQFGNGLEIDQARLGMCRQLGDVFTEEKFRYMCILSGCDYLSSLRGIGLAKACKVLRLANNPDIVKVIKKIGHYLKMNITVPEDYINGFIRANNTFLYQLVFDPIKRKLIPLNAYEDDVDPETLSYAGQYVDDSIALQIALGNKDINTFEQIDDYNPDTAMPAHSRENLYFQ

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	;DNA (5'-D(CP(GS)PCPTPAPGPTPCPGPTPCPAP*(TS))-3') ;
Molecular weight formula_weight	3974.7 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polydeoxyribonucleotide
Chain IDs strand_id	C

CGCTAGTCGTCAT

Entity 3 Entity 3 polymer

Description description	;DNA (5'-D(PAP(SC)PGPAPCPTPAPGPCP(GS))-3') ;
Molecular weight formula_weight	3086.2 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polydeoxyribonucleotide
Chain IDs strand_id	B

ACGACTAGCG

Entity 4 Entity 4 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 5 Entity 5 non-polymer

Description description	1-(4-chloranyl-2,7-naphthyridin-1-yl)-5-oxidanyl-3-[(1~{S})-1-phenylethyl]-2~{H}-pyrido[2,1-f][1,2,4]triazine-4,6-dione
Molecular weight formula_weight	447.9 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 6 Entity 6 non-polymer

Description description	SODIUM ION
Molecular weight formula_weight	23.0 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 7 Entity 7 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	49

▶

Unit-cell length a length_a	69.705 Å
Unit-cell length b length_b	69.705 Å
Unit-cell length c length_c	181.759 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 43 21 2
Space-group number int_tables_number	96
Crystal system crystal_system	—

Resolution resolution	2.199 Å
Low-resolution limit resolution_low	65.080 Å
R factor r_factor	0.2404
R_work r_work	0.2387
R_free r_free	0.2706
