9sov

CorZ in complex with SAH and myxarylin, Methyltransferase

Method: X-RAY DIFFRACTION D_max: 100.6 Å Quality: EXCELLENT

SAXS Profile

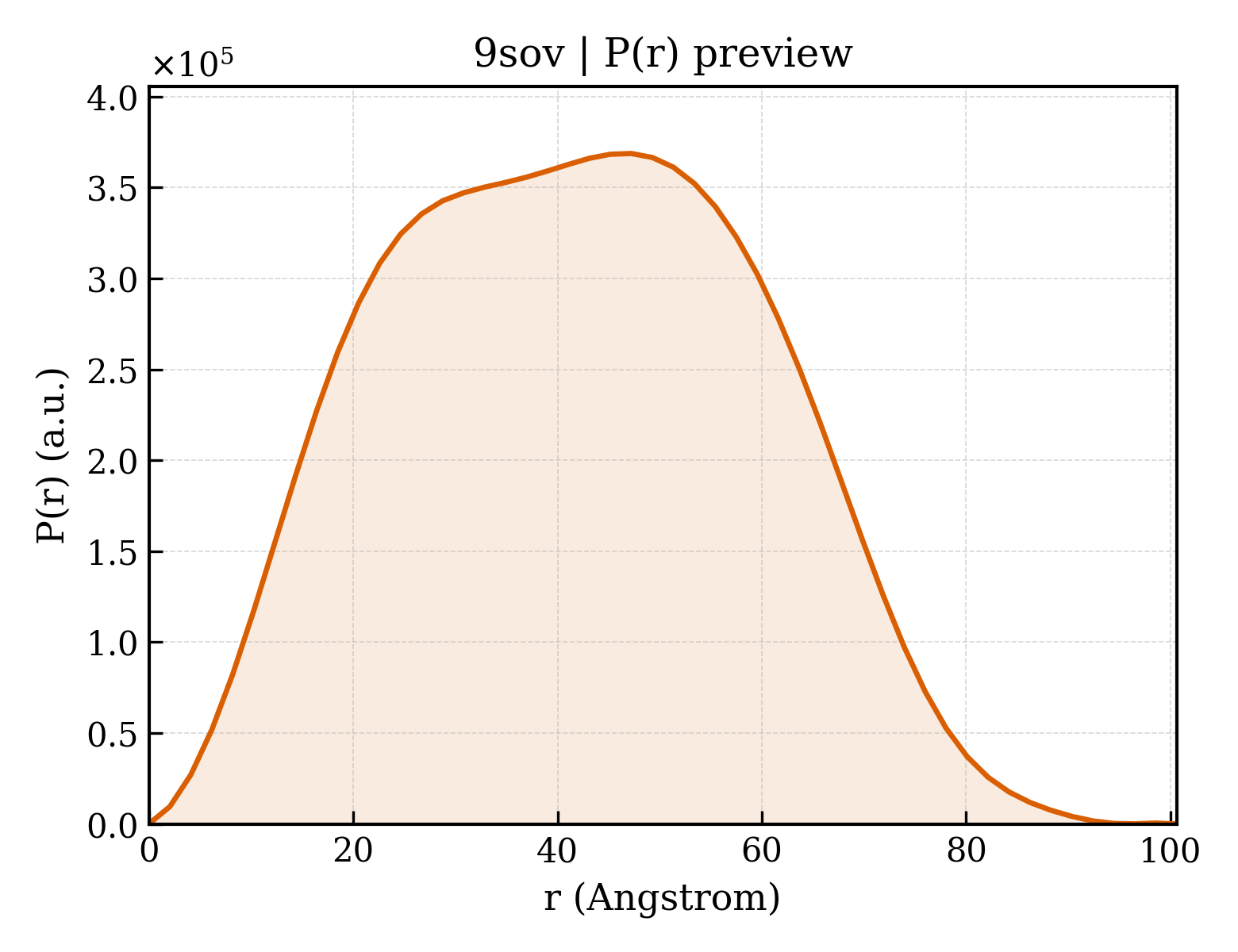

P(r) Distribution

▼

1. Structure Basics

entry_id	9sov
deposition_date	2025-09-15
last_revision	2026-04-15
title	CorZ in complex with SAH and myxarylin, Methyltransferase
keywords	CorZ in complex with SAH, Methyltransferase and myxarylin, Myxarylin methyltransferase, BIOSYNTHETIC PROTEIN; BIOSYNTHETIC PROTEIN
method	X-RAY DIFFRACTION

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	32.20 Å
rg_electron	31.38 Å
i0	246275000.00
molecular_weight	82504.0 kDa
excluded_volume	78950 Å³
envelope_volume	140280 Å³
shell_volume	37180 Å³
envelope_diameter	102.1 Å
shell_rg	38.57 Å
envelope_rg	31.01 Å
shape_rg	31.35 Å
total_rg	31.85 Å
total_atoms	6250
n_residues	784
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	100.6 Å
rg_real	32.05 Å
rg_real_error	0.59 Å
i0_real	2.4630e+08
i0_real_error	3.3860e+06
rg_reciprocal	32.12 Å
i0_reciprocal	246300000.0000
total_estimate	0.9056
solution_quality	EXCELLENT a EXCELLENT solution
n_peaks	2
r_peak_primary	47.2 Å
skewness	0.080
kurtosis	-0.746
angular_range	— – 0.2450 Å⁻¹
current_alpha	0.0000
highest_alpha	39300000.0000
n_real_points	50
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.936; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.998; Smooth: 0.962

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (4)

Entity 1 polymer

description	Methyltransferase
formula_weight	31375.7 kDa
src_method	man
entity_count	3

Polymer

type	polypeptide(L)
strand_id	A,B,C
atom_count	6311

MGSSHHHHHHSSGLVPRGSHMDFDYTDDAALYDAVCEDYREDVAFYVEEARGAGGPCLELGCGTGRLLTPAVEAGARVTGLDRSAAMLARARARVQALPAPLRERVDLREGDMVSFSLEARFALITVPFRTFLHLLTVEEQLAALTNIRRHLLPGGRLVLDFFEPSRLLAELLGNDGPSRGLLKQTGVVVSHPVTGNMLVEWASVTGDPVSQCFTRCLVYDELERSGQVVGRMYRRITSRFIFRSEFEHLLHRSGFQVEALQGSFDGGPVRPGGELIWRARAAP

Source

organism	Corallococcus coralloides
ncbi_taxonomy_id	184914
host_organism	Escherichia coli BL21(DE3)

Entity 2 non-polymer

description	S-ADENOSYL-L-HOMOCYSTEINE
formula_weight	384.4 kDa
src_method	syn
entity_count	3

Entity 3 non-polymer

description	;(7~{S},10~{S},13~{S})-13-(methylamino)-10-(2-methylpropyl)-18-oxidanyl-9,12-bis(oxidanylidene)-2,4,8,11-tetrazatricyclo[13.3.1.1^{2,5}]icosa-1(19),3,5(20),15,17-pentaene-7-carboxylic acid ;
formula_weight	443.5 kDa
src_method	syn
entity_count	3

Entity 4 water

description	water
formula_weight	18.0 kDa
src_method	nat
entity_count	61

▶

6. Citations (1)

▶

length_a	83.436 Å
length_b	117.840 Å
length_c	106.910 Å
angle_alpha	90.00 °
angle_beta	100.20 °
angle_gamma	90.00 °
z_pdb	12

space_group	I 1 2 1
int_tables_number	5
crystal_system	—

resolution	2.700 Å
resolution_low	45.380 Å
r_factor	0.2267
r_work	0.2243
r_free	0.2697

fit	/app/data/saxs_computation/so/9sov/9sov.fit
pddf	/app/data/pr_computation/so/9sov/9sov.pr.out
profile	/app/data/saxs_computation/so/9sov/9sov.dat
