9ss8

Human angiotensin 1-converting enzyme N-domain in complex with rentiapril

Method: X-RAY DIFFRACTION Dmax: 108.1 Å Quality: GOOD

SAXS Profile

SAXS profile for 9ss8

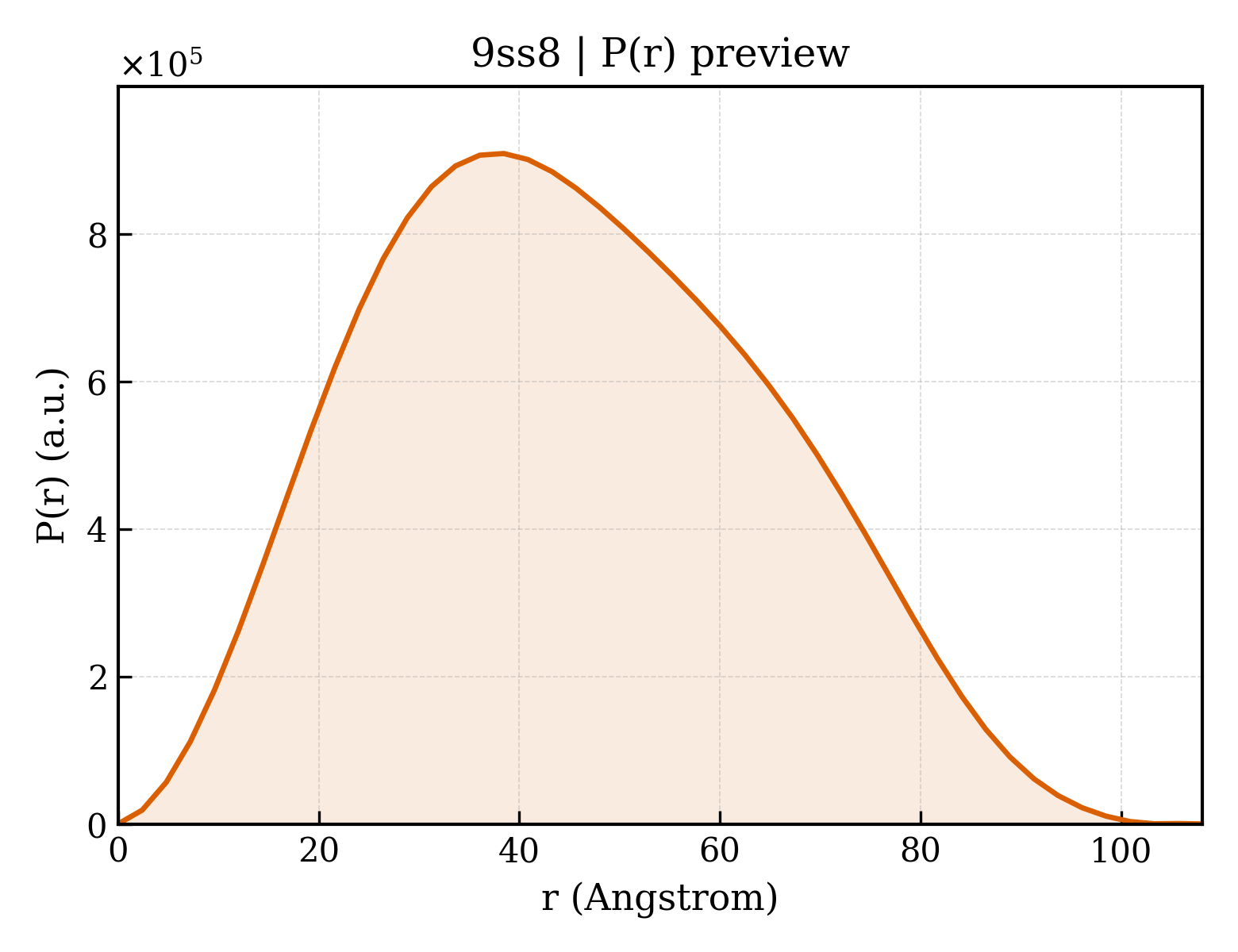

P(r) Distribution

P(r) distribution for 9ss8

1. Structure Basics

entry_id9ss8
deposition_date2025-09-25
titleHuman angiotensin 1-converting enzyme N-domain in complex with rentiapril
keywordsinhibitor, complex, metalloprotease, HYDROLASE; HYDROLASE
methodX-RAY DIFFRACTION

Download Data

2. SAXS Parameters (CRYSOL)

rg_guinier34.87
rg_electron34.16
i0607503000.00
molecular_weight134730.0 kDa
excluded_volume130910 ų
envelope_volume218620 ų
shell_volume51488 ų
envelope_diameter107.4
shell_rg42.29
envelope_rg34.04
shape_rg34.11
total_rg34.63
total_atoms10206
n_residues1207
n_harmonics20
q_range— – 0.5000 −1
n_points101
shell_typedirectional
solvent_density0.3340 e/ų
contrast_shell0.0300 e/ų
crysol_version4.1.3

3. P(r) Analysis (GNOM)

dmax108.1
rg_real34.78
rg_real_error0.58
i0_real6.0750e+08
i0_real_error9.1970e+06
rg_reciprocal34.84
i0_reciprocal607500000.0000
total_estimate0.8989
solution_quality GOOD a GOOD solution
n_peaks2
r_peak_primary38.5
skewness0.217
kurtosis-0.644
angular_range— – 0.2250 −1
current_alpha0.0000
highest_alpha124800000.0000
n_real_points46
gnom_version4.1.3
quality_criteria AN1: 0.000; Oscil: 0.952; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 1.000; Smooth: 0.826
