Human angiotensin 1-converting enzyme C-domain in complex with zofenoprilat

Method: X-RAY DIFFRACTION Dmax: 79.5 Å Quality: GOOD

SAXS Profile

SAXS profile for 9ssa

P(r) Distribution

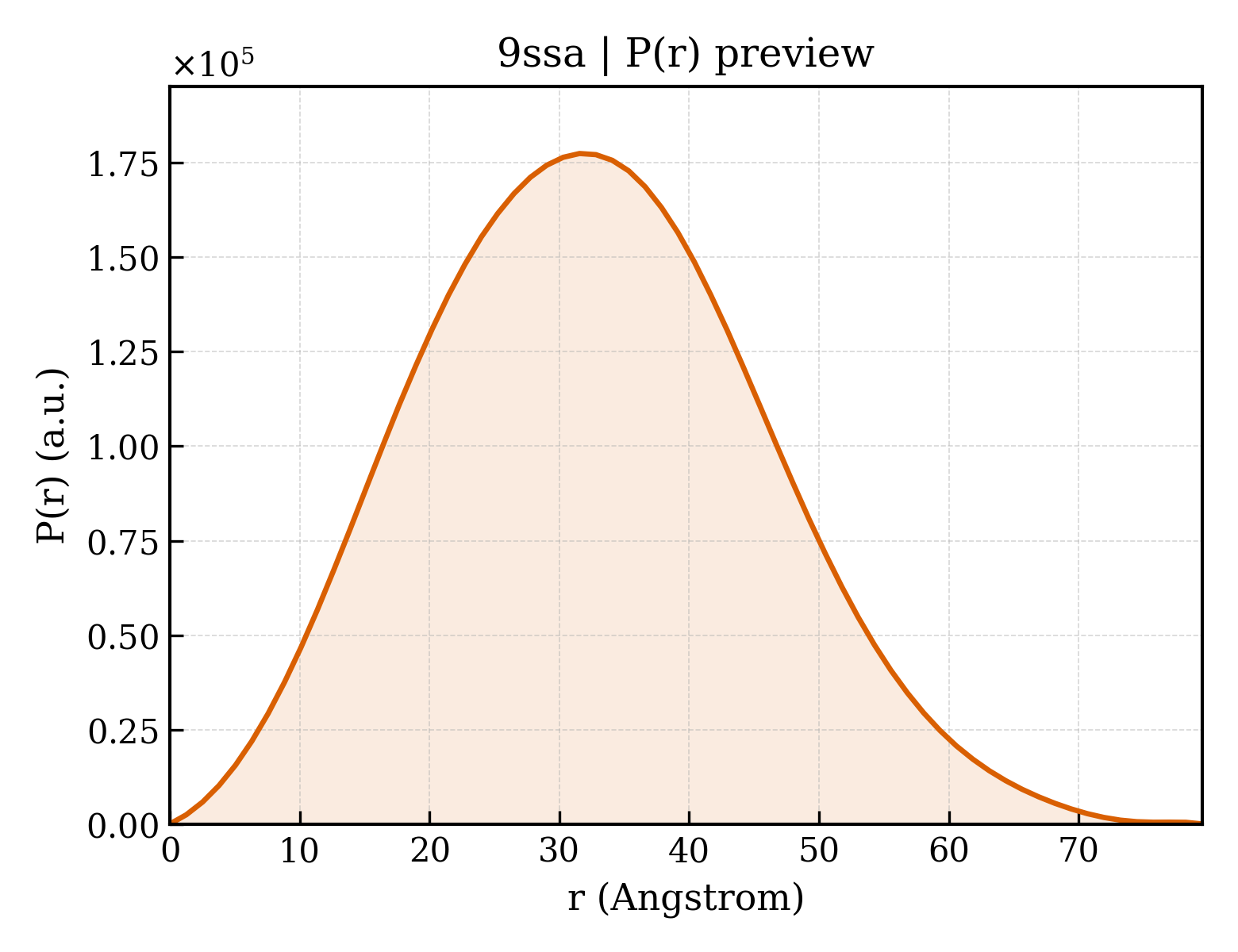

P(r) distribution for 9ssa

1. Structure Basics

entry_id9ssa
deposition_date2025-09-25
titleHuman angiotensin 1-converting enzyme C-domain in complex with zofenoprilat
keywordsinhibitor, complex, metalloprotease, HYDROLASE; HYDROLASE
methodX-RAY DIFFRACTION

Download Data

2. SAXS Parameters (CRYSOL)

rg_guinier24.94
rg_electron23.68
i076076300.00
molecular_weight68870.0 kDa
excluded_volume86242 ų
envelope_volume99707 ų
shell_volume33551 ų
envelope_diameter82.6
shell_rg32.41
envelope_rg23.98
shape_rg23.66
total_rg24.66
total_atoms4848
n_residues574
n_harmonics20
q_range— – 0.5000 −1
n_points101
shell_typedirectional
solvent_density0.3340 e/ų
contrast_shell0.0300 e/ų
crysol_version4.1.3

3. P(r) Analysis (GNOM)

dmax79.5
rg_real24.77
rg_real_error0.33
i0_real7.6080e+07
i0_real_error9.3160e+05
rg_reciprocal24.81
i0_reciprocal76080000.0000
total_estimate0.8879
solution_quality GOOD a GOOD solution
n_peaks2
r_peak_primary31.6
skewness0.204
kurtosis-0.320
angular_range— – 0.3200 −1
current_alpha0.0001
highest_alpha21070000.0000
n_real_points64
gnom_version4.1.3
quality_criteria AN1: 0.000; Oscil: 0.850; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.995; Smooth: 0.994

4. Crystallography & Experiment

5. Entities & Polymer Info (12)

6. Citations (1)

7. Files & Curves (10)
